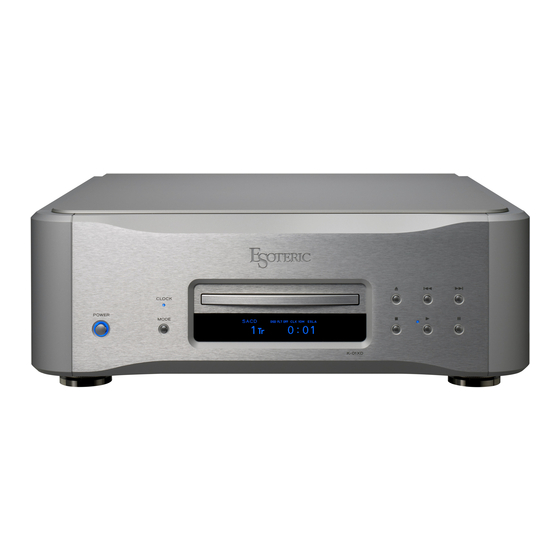

K-01
Digital Source Device
VRDS-NEO, 8-DAC (32BIT)/CH, 192/24 HIGH-REZ INPUTS, ADVANCED CLOCKING
INTRODUCTION
ESOTERIC releases the K-01, the flagship model of our all-in-one advanced D/A converter and Super Audio CD/CD player series,
capitalizing on ESOTERIC's state-of-the-art technology and derived from our award winning P-01/D-01 series separates. It has been
seven years since the debut of the original X-01, with its high-precision and high-rigidity VRDS-NEO SACD/CD transport mechanism.
The X-01/X-03 series, which have stayed at the top of ESOTERIC's all-in-one SACD/CD player lineup, have been completely updated
and make their debut as the all-new "K" series in November 2010.
The design concept of the K series is extremely clear and simple -- a 2-channel D/A converter and stereo player that gives a stress-free
musical experience, without adding or removing anything from the original source material. All aspects of the design and engineering
process for the K series had extremely tough requirements to further advance ESOTERIC's top technology. Design and engineering
was completed applying all of ESOTERIC's know-how in mechatronics technology, state-of-the-art audio technology, and evolutionary
materials including DAC implementation, for which cost was not a consideration. The K series is committed to advancing the "state of
the art" for the 2 channel audio purist, for both high resolution audio files and disc based audio playback applications.
The K-01 is equipped with our new VRDS-NEO "VMK-3.5-20S" mechanism, which has advanced substantially beyond existing VRDS
models. The K-01 follows the philosophy of the D-01, and has two 32-bit monaural D/A converters with eight parallel/differential DAC
circuits used per channel, as well as separate L/R power supplies. The on-board, high-precision clocking circuit has also been
advanced. The power supply for each circuit block has been optimized by using four on-board power transformers. Three sets of 192
kHz/24-bit digital inputs, supporting the most advanced high-sampling-rate digital sources are also built-in. USB driver
software supports 192 kHz/24-bit asynchronous transmission for connecting with a PC.
The K-01 responds to the stringent demands of music lovers and audio purists, for a top-of-the-line
digital source, 2-channel playback device.
New Product Information

Advertisement

loading
Need help?

Need help?

Do you have a question about the K-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Esoteric K-01

  • Page 1 The K-01 is equipped with our new VRDS-NEO “VMK-3.5-20S” mechanism, which has advanced substantially beyond existing VRDS models. The K-01 follows the philosophy of the D-01, and has two 32-bit monaural D/A converters with eight parallel/differential DAC circuits used per channel, as well as separate L/R power supplies. The on-board, high-precision clocking circuit has also been advanced.
  • Page 2 Three digital input systems to support a high sampling rate refined spindle drive. Additionally, a separate power supply is used Even when you use the K-01 as a discrete D/A converter for a for each power-consuming spindle motor, to eliminate any impact high-sampling-rate source, the K-01 makes the most of the on the audio circuit and to achieve outstanding performance.
  • Page 3 The output voltage of the XLR audio outputs can be switched according to the input sensitivity of the amplifier that you connect to the K-01 (0dB/ +6dB). You can also choose Hot 2 or Hot 3 for the XLR pin assignment. Additionally, you can switch the analog output between RCA, XLR and OFF, as desired based on connected components.
  • Page 4: Specifications

    Sine wave: 0.5 to 1.0 Vrms/50 to 75 ohms The K-01 can accept and synchronize to the following frequencies received from external clock devices: 44.1 kHz, 88.2 kHz, 176.4 kHz, 10 MHz (the accuracy of locking range limited within ±15 ppm)
