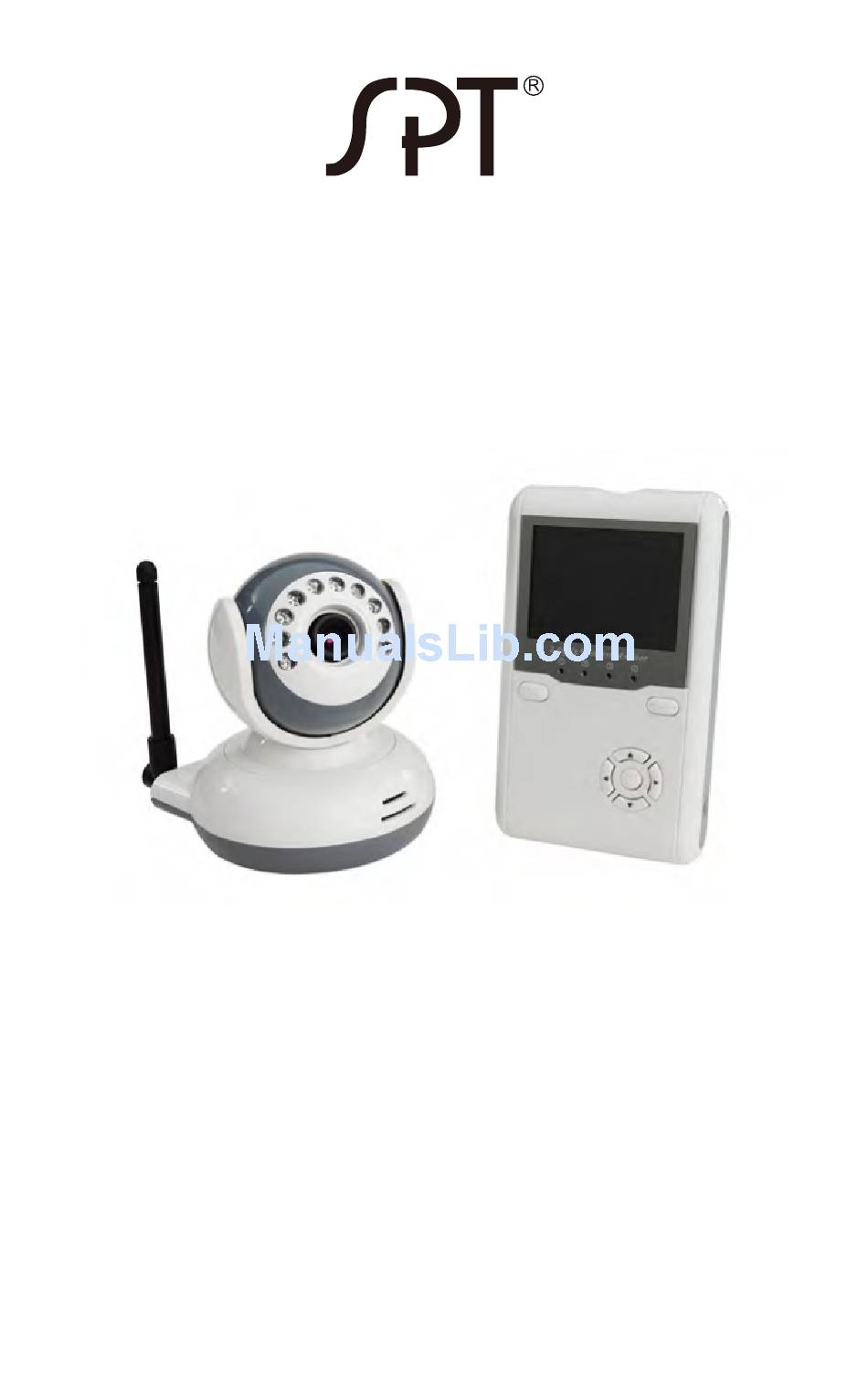

- Page 1 2.4GHz Wireless Digital Color LCD Baby Monitor with Night Vision Model: SM-1024K (Kit) Thank you for your purchase. Please read this manual thoroughly before use. Keep in a safe place for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY NOTICE ..............2 FCC COMPLIANCE ..............3 MAIN FEATURES..............4 MONITOR KIT COMPONENTS..........4 MAIN PARTS ................5 OPERATING INSTRUCTIONS ..........6 PREPARING FOR USE................6 PAIRING PROCESS................6 POSITIONING ..................7 OPERATION..................7 SIGNAL INDICATORS .................7 NIGHT VISION..................7 ZOOM IN / ZOOM OUT (adjust picture size)........8 BABY UNIT VOLUME (adjust unit volume) ..........8 EFFECT SET (screen orientation, contrast and saturation)....8 SET UP (VOX, TV mode and brightness) ..........9 CONNECTING TO TV ................9... -
Page 3: Safety Notice
CAUTION For your safety, use only attachments/accessories specified by the manufacturer. The manufacturer is not responsible for any loss or damage caused by the usage of a non-authorized attachments. Important The power supply plugs into a standard Type A outlet. Use of improper socket may cause electrical and fire hazard. -
Page 4: Fcc Compliance
FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Main Features
MAIN FEATURES 2.4” LCD color monitor/receiver Digital wireless technology provides excellent image quality and clarity Interference-free Wireless video/audio monitoring 4 channels: 1 monitor supports up to 4 cameras Infrared night vision allows low light viewing up to 10 ft from camera ... -
Page 6: Main Parts
MAIN PARTS 2.4G wireless camera Lens IR night light Speaker POWER button: press and hold for 5 seconds to turn Power indicator on/off camera DC port 2.4” LCD monitor receiver Sound meter/Channel indicator POWER button: Press Press to talk to turn on/off monitor Monitor volume increase Channel selection / button... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS PREPARING FOR USE Monitor: Battery operation (rechargeable battery) The monitor is equipped with rechargeable lithium battery. Fully charge the monitor unit before initial use and whenever low battery is indicated. Insert adapter to DC port then connect to wall outlet. ... -
Page 8: Positioning
POSITIONING Keep the camera out of baby’s reach. Never place the unit inside or mount on baby’s bed/playpen. Place on a stable and leveled surface Adjust camera head to ensure best visibility of your child. When monitor moves outside the operating rage, “NO SIGNAL” will be displayed on the screen. -
Page 9: Zoom In / Zoom Out (Adjust Picture Size)
ZOOM IN / ZOOM OUT (adjust picture size) Press OK to display main menu ZOOM IN/ZOOM OUT will be highlighted Press OK to Zoom in or Zoom out. Press the left arrow key to exit. BABY UNIT VOLUME (adjust unit volume) Press OK to display main menu ... -
Page 10: Set Up (Vox, Tv Mode And Brightness)
Horizontal: press down arrow to highlight. Press right arrow to turn on/off mirror view. Contrast: press down arrow to highlight. Press right arrow to increase or left arrow to decrease image contrast. (0-8, low to high) Saturation: press down arrow to highlight. Press right arrow to increase or left arrow to decrease image saturation. -
Page 11: Troubleshooting
TROUBLESHOOTING Problem Solution No picture Make sure the cameras and monitor are plugged in. Make sure the camera and monitor are in effective range. Make sure the monitor is tuned to the correct input channel. White image appears ... -
Page 12: Your Guarantee
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
