FREESTANDING CARPORT
STRATCO FRONTIER ASSEMBLY INSTRUCTIONS.
Your complete guide to building a FRONTIER
BEFORE YOU START
Carefully read these instructions. If you do not have all the necessary tools or information, contact Stratco for advice. Lay

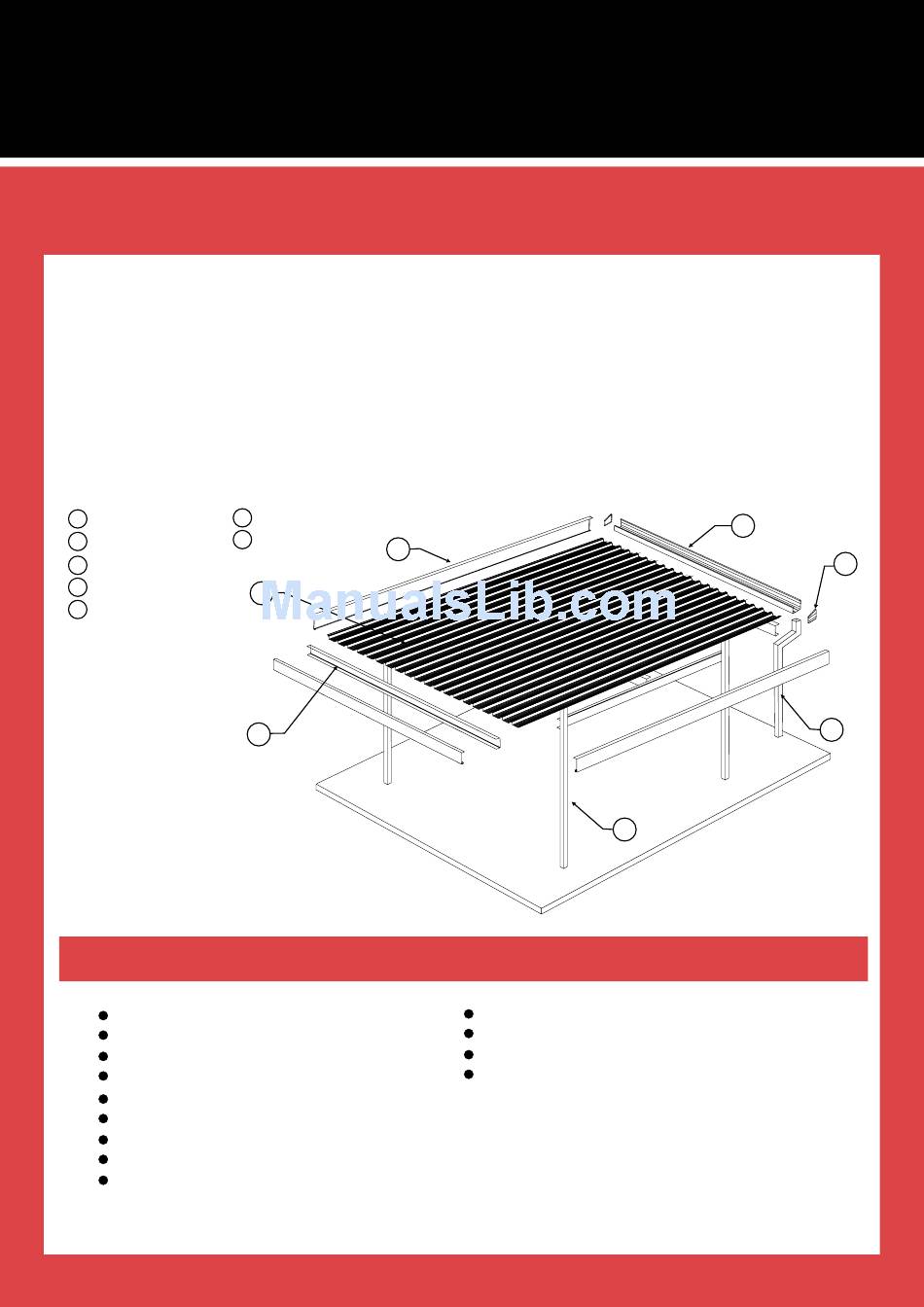

out all components and check them against the delivery docket. The component location diagram below identifies each
key part and indicates their fastening positions.
1
2
Prodek Roofing
®
3
C-Section
4
VF Gutter
5
SHS Posts
TOOLS REQUIRED
Drill & Hex-Head Adaptor
Rivet Gun
Tape Measure
Tin Snips
Spirit Level
Hack-Saw
Post hole digger
Silicone Gun
Spanners or Ratchet
FRONTIE R
®
FREESTANDING
6
VF Stop End
7
Downpipe
1
2
3
®
CARPORT
5
Adjustable Construction Props
Turn Up/Down Tool
Concrete
Ladder
®
4
6
7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stratco FRONTIER
Summary of Contents for Stratco FRONTIER
- Page 1 BEFORE YOU START Carefully read these instructions. If you do not have all the necessary tools or information, contact Stratco for advice. Lay out all components and check them against the delivery docket. The component location diagram below identifies each key part and indicates their fastening positions.
- Page 2 FRONT/ REAR BEAM ensure concrete dimensions allow for the required anchor edge distance and anchor depth as indicated on the supplied drawings. Stratco does not take any responsibility for concrete failure. The erector/owner is responsible for ® ensuring that the slab is capable of supporting the Front Freestanding Carport.
- Page 3 Note: For in concrete carports, posts need to be cut to allow M10 BOLTS & WASHERS for a 1° fall towards the gutter and downpipe end. Note: For on concrete carports, two different post heights will have been supplied to allow for a slight fall toward one end of the unit at which the gutter and downpipe will be located.
- Page 4 FINISH CONCRETE RAISED TOWARD COLUMN WIDTH AS SPECIFIED DEPTH AS SPECIFIED MINIMUM 15MPa CONCRETE PRODEK ® CORBEL AS SPECIFIED POST EMBEDDED MINIMUM 300mm INTO CONCRETE FOOTING LAYING DIRECTION PREVAILING WIND 4.2 ON CONCRETE FOOTING Mark the position of the holes through the existing holes in 6.0 GUTTERING footing plate.
- Page 5 Carport will ensure it looks its best at all times. Refer to the "Selection, Use and Maintenance of BARGE CAPPING Stratco Steel Products" brochure for complete details of maintenance requirements. The front cap is fixed through every third rib and will need to have the return lip on the bottom edge notched using tin snips.
Need help?
Do you have a question about the FRONTIER and is the answer not in the manual?
Questions and answers
How to mark out post for a Stratco frontier single carport free standing
To mark out posts for a Stratco Frontier single freestanding carport:
1. Place stakes at the carport post locations using the column positions from the supplied drawing.
2. Tie string lines between the stakes to ensure the footings are in line.
3. Check all dimensions carefully, as the roof sheet and beam lengths depend on these positions.
Accurate post placement is critical for proper assembly.
