Specifications; Mechanical Installation - Soundstream DIGI-Q Owner's Manual

NOTES: Set your source volume at one -half to three quarter .
Always use the volume on the EQ as the master volume control. It has
better electronics, higher S/N ratio and is more linear than any source
unit.

MECHANICAL INSTALLATION

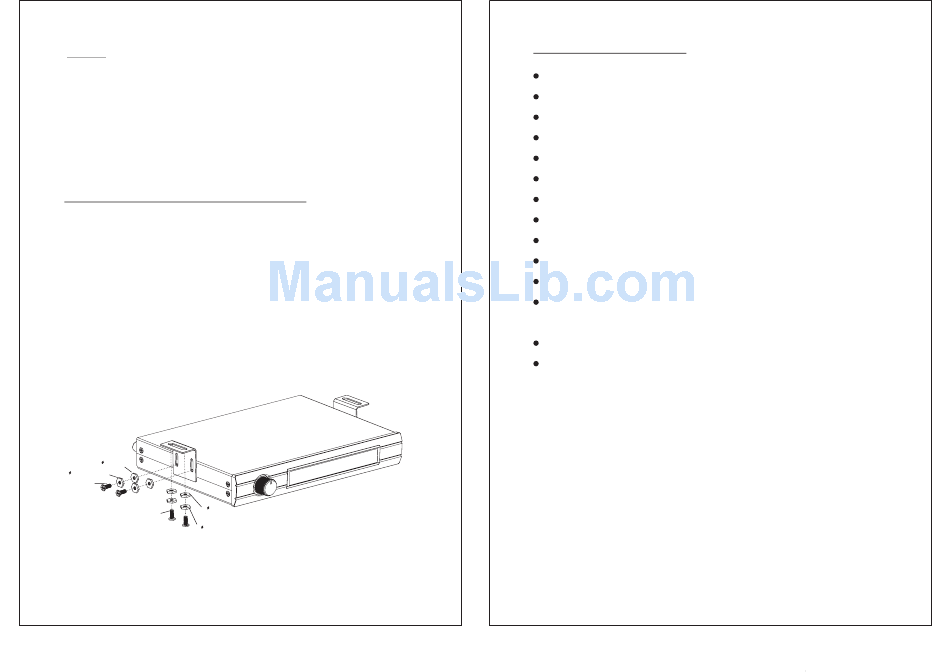

1. Select the location to mount the unit under the dash board.
2. Drill (4) 4.2 mm diameter holes. Fix the mounting bracket
to the location with (4) 4 x 15 mm tapping screw. Be
careful when drilling so as not to damage existing
wiring under the dash board.
3. Mount unit to the mounting bracket with (4) 3 x 6 mm
machine screws.
3.0 WASHER
3.0 SPRING WASHER
M3.0x6 MACHINE
SCREW
4.0 WASHER
M4.0x15 TAPPING
SCREW
4.0 SPRING WASHER
-6-

SPECIFICATIONS:

Master Volume, Fader, Subwoofer Level Control
2 Inputs
System Battery Voltage Read Out
7 Band Equalizer
Output Voltage Up to 8 V
Subwoofer Output Voltage Up to 10 V
Frequency Response 15HZ ~ 30KHZ
THD+n (1vrms output) = 0.002%
Input sensitivity = 0.3 ~ 1.5 Vrms
Channel separation = 79db
Battery Voltage Range = 9.5 ~ 14.2VDC
Current Consumption = 2 ampere
(all outputs maxed)
B/C control range = 20 db (+10 to -10db)
Subwoofer Output Frequency Range 180 ~ 550Hz
SOUNDSTREAM TECHNOLOGIES
WWW.SOUNDSTREAM.COM
-7-
65-C0512-MA
