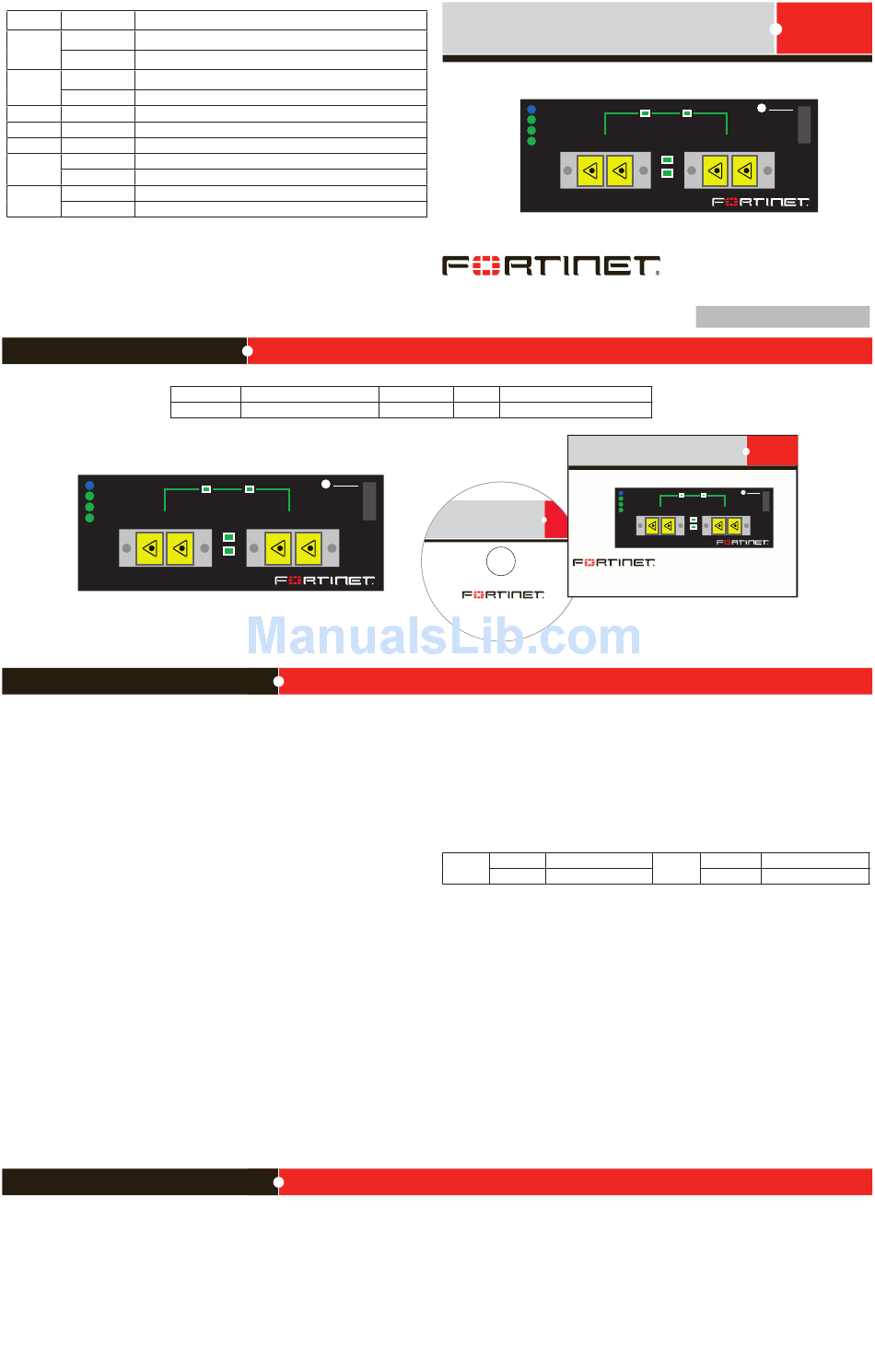

Fortinet FortiGate ASM-FX2 Quick Start Manual

LED State Description
Green The module is properly inserted in the FortiGate unit.
FGT ACT
Off The module is not receiving power from the FortiGate unit.
Blue Ejection latch open.
HS
Flashing Ejection latch opened during system operation.
OOS LED currently not in use.
IPM Green The module is properly inserted in the FortiGate unit.
Off The module is not receiving power from the FortiGate unit.
Green The correct cable is in use and the connected equipment has power.
Ports
1 and 2
Flashing Green Network activity on the interface.
Green Bypass network activity at this interface.
BYPASS
Off Normal status or not receiving power from the FortiGate unit.
Visit these links for more information and documentation for your Fortinet product.
• Technical Documentation - http://docs.forticare.com
• Fortinet Knowledge Center - http://kc.forticare.com
• Fortinet Technical Support - http://support.fortinet.com

Package Contents

FGT ACT
HS
OOS
1
IPM
ASM-FX2

Installing the AMC Module

It is important to carefully seat the FortiGate ASM-FX2 module all the way into the chassis.
Only then will the FortiGate ASM-FX2 module power-on.
To complete this procedure, you need:
• A FortiGate ASM-FX2 module.
• A FortiGate chassis with an empty AMC single-width (SW) opening.
• To avoid any electrostatic discharge, install in a static free area.
FortiGate ASM-FX2 modules are not hot swappable. The procedure for inserting the
FortiGate ASM-FX2 module into a FortiGate chassis slot requires the FortiGate unit to be
powered off.
To avoid any electrostatic discharge (ESD) when handling FortiGate ASM-FX2 modules,
install in a static free area.
To insert a FortiGate ASM-FX2 module into a FortiGate chassis
1. Ensure the FortiGate unit is powered off before proceeding.
2. Remove the panel block on the FortiGate unit using the hot swap latch.
3. Pull the latch on the ASM-FX2 module to the extended position.
4. Insert the ASM-FX2 module into the empty slot in the chassis. Ensure the Fortinet logo
is right-side up. It should be on the lower-right corner of the module.
5. Carefully guide the module into the chassis.
6. Insert the module by applying moderate force to the front faceplate near the upper edge
to slide the module into the slot.

Connecting the Module

When properly inserted into the FortiGate unit, the interfaces of the ASM-FX2 appear in the
interface list by going to System > Network > Interface.
You can add policies, zones and so on as you would with other FortiGate interfaces.
Enable the bridging feature of the module using the Command Line Interface.
The module is ready for removal.
Connector Type
Ports 1 and 2 SERDES compatible SX fiber
BYPASS
FORTIGATE
BYPASS
2
1
2
QuickStart Guide
FGT ACT
HS
OOS
IPM
ASM-FX2
© Copyright 2009 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trademarks
of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
20 January 2009
Speed Protocol Description
1000 Base-SX Ethernet Fiber network connections.
Tools and Documenation
The module should glide smoothly into the chassis. If you encounter any resistance while
sliding the module in, the module could be aligned incorrectly. Pull the module back out
and try inserting it again.
7. Press the hot swap latch to lock in the module.
8. Power on the FortiGate unit.
ASM-FX2 module ports
AMC/1 IP:
Netmask:

Removing the AMC module

Should you need to remove the ASM-FX2, shut down the FortiGate unit using proper shut
down procedures.
To remove the ASM-FX2 module
1. Ensure the FortiGate unit is powered off before proceeding.
2. To avoid any electrostatic discharge (ESD) when handling ASM-FX2 module, uninstall in
a static free area.
3. Pull the hot swap latch on the right-hand side of the module to the extended position to
unlock the module from the FortiGate unit.
4. Gently pull the hot swap latch to remove the module.

CLI Commands

To enable or disable bypass mode, press the Bypass FortiGate button, or use the following
CLI commands. For more information on these commands go to htp://kc.fortinet.com.
exec amc bypass-mode <enable | disable>
BYPASS
1
1
2
01-30006-0473-20090120
QuickStart Guide
FGT ACT
HS BYPASS
OOS
1
IPM
1
2
ASM-FX2
Copyright 2008 Fortinet Incorporated. All rights reserved.
Trademarks
The hot swap (HS) LED turns on and then begins flashing.
