Musicam RoadRunner User Manual

3-channel monaural audio mixer, an 18-bit a-to-d converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RoadRunner
U S E R S
G U I D E

Users Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoadRunner and is the answer not in the manual?

Questions and answers

Summary of Contents for Musicam RoadRunner

  • Page 1: Users Guide

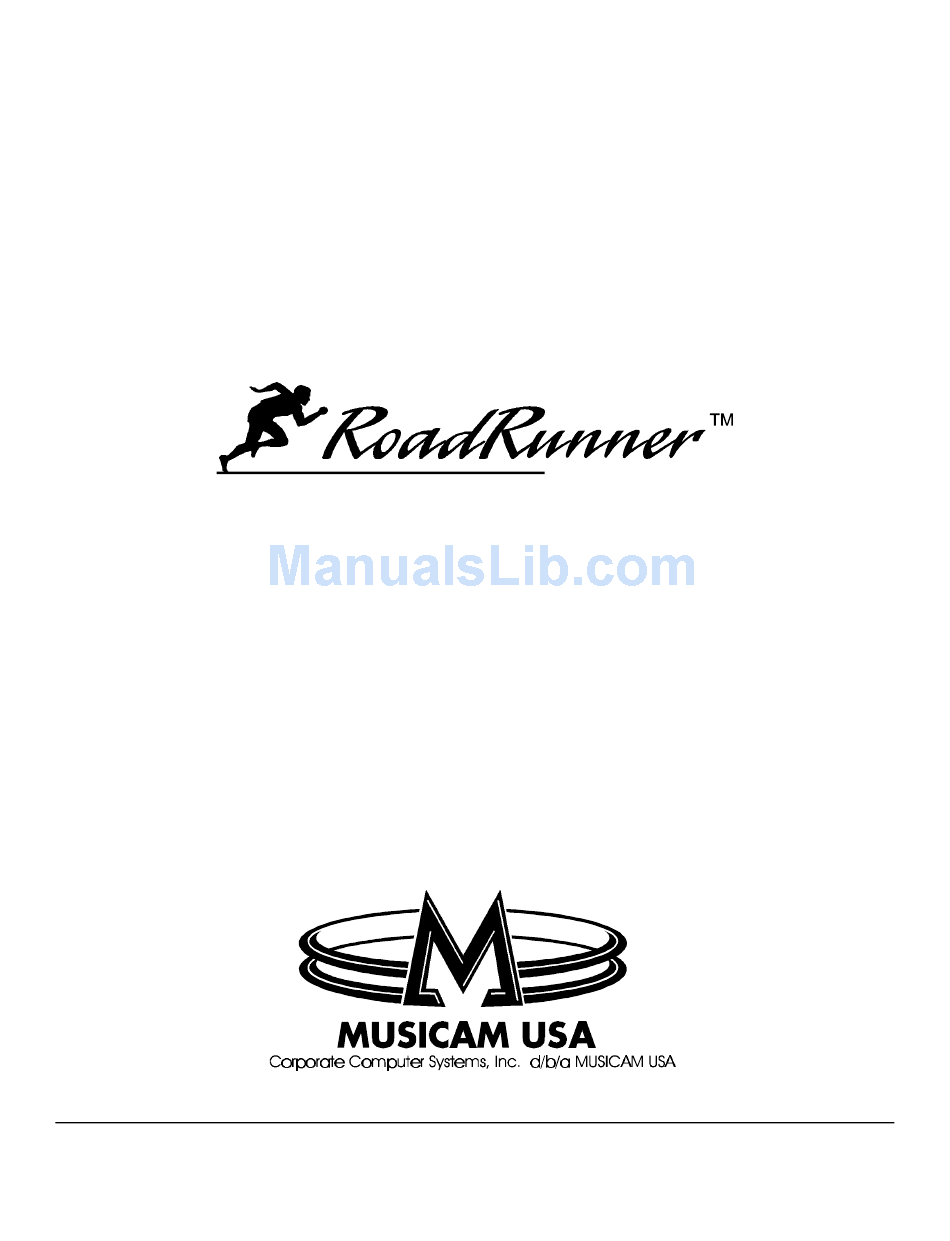

    RoadRunner U S E R S G U I D E Users Guide...
  • Page 2 M U S I C A M U S A Users Guide for Software Revision 2.0 MUSICAM USA Corporate Computer Systems, Inc. 670 North Beers Street, Building 4 Holmdel, NJ 07733 USA Phone (732) 739-5600 • Fax (732) 739-1818 http://www.musicamusa.com First Printing: February, 2000 MUSICAM USA Part Number 605500M...

  • Page 3: Table Of Contents

    (MSN/LDN — Europe Only) Local Check (North America Key Features Only) CODEC Compression Algorithms LLC State ISO/MPEG Layer III Sub Address, EAZ (Germany) MUSICAM and ISO/MPEG Layer And Interface Mode Reset G.722 Terminal Adapter TA201 and TA301 Broadcast Capabilities Configuration for North America24...
  • Page 4 RoadRunner U S E R S G U I D E Quick Setup Troubleshooting Quick Status Audio Problems Advanced Setup No Audio in Loopback Decoder Configuration No Audio when Connected to Another Codec Setup Using Quick Configurations Echo And Speed Dials...

  • Page 5: Introduction

    ISO/MPEG Layer II encoding standard. Industry standard ISO/MPEG Layer III as well as G.722 are also included. RoadRunner can send and receive up to 20 kHz monaural audio transparently over digital transmission systems and is compatible with more codecs than any other similar device.
  • Page 6 G U I D E configuration), RoadRunner can connect directly to another ISDN codec at bit rates from 56 to 128 kb/s. RoadRunner also accepts any of the digital interface modules available from MUSICAM USA, and can be used over any digital facility that accepts V.35, X.21 or RS422 interfaces, in addition to ISDN.

  • Page 7: Key Features

    9.5 pounds (4.3 kg). Inside the RoadRunner case is a full featured 3-channel monaural audio mixer, an 18-bit A-to-D converter, a multi-algorithm codec, a slot for available plug-in digital interface device (an ISDN terminal adapter is supplied as standard), an auto-dialer, international AC and DC power supplies, and a powerful command processor.

  • Page 8: Codec Compression Algorithms

    Clip (over level). There are also four Cue LEDs indicating the state of the internal relays. The front panel keypad can be used to access all functions of the RoadRunner and built in Terminal Adapter, and is also used as the dial keypad. A backlit display with adjustable contrast provides menu, maintenance and dialing displays.

  • Page 9: G.722

    Broadcast Capabilities The RoadRunner can be configured to send the same audio program to two different locations simultaneously. In addition, the RoadRunner’s decoder can receive the return audio from both locations, and you can easily switch to monitor the return audio from either location.

  • Page 10: Unpacking And Installing

    However, note that RoadRunner is fan cooled, and the rear mounted fan should not be blocked. Your RoadRunner is shipped to you in Loopback Mode. When in this mode, you can test all audio input and output connections. When your...
  • Page 11 ‘U’ interface (the wall connector) requires a 2-conductor cable. The ‘S/T’ interface (the RoadRunner side) requires an 6-conductor cable. Two non-TA digital interfaces are also available for the RoadRunner. The DIF101 interface is used for connecting transmission systems using X.21, RS422, RS449 or RS530 interfaces. The DIF102 interface connects to transmission systems using the V.35 protocol.

  • Page 12: Roadrunner Overview

    EADPHONE OUTPUT 1/4” Headphone output EADPHONE OUTPUT LED relay and cue status indicators ELAY STATUS INDICATORS LED RoadRunner status indicators TATUS INDICATORS LCD Menu navigation keypad AVIGATION KEYS Configuration and dialing keypad LPHANUMERIC KEYPAD Controls all dialing functions and directory...

  • Page 13: Rear Panel Controls And Connectors

    RoadRunner U S E R S G U I D E Rear Panel Controls and Connectors Balanced, fixed line level return audio output INE OUTPUT Microphone or line input 3 NPUT Microphone or line level select for input 3 NPUT SELECTOR...
  • Page 14 Switched-56, dedicated lines, fractional T-1 and satellite systems using the appropriate digital interface module. The RoadRunner can be used with 12 VDC or AC power. The universal AC power supply needs no jumpers, and works with 94 - 250 VAC, 50 or 60 Hz.

  • Page 15: Digital Interface Module

    A digital interface module is required to use your RoadRunner with a transmission system. Only one DIF module can be installed in the RoadRunner at a time. If you are using a DIF101 or DIF102 module for RS422, X.21 or V.35 interfaces use the appropriate cables, available from MUSICAM USA.

  • Page 16: Rs422/Rs449/Rs530 And

    The RS422 interface can also echo the transmitter clock. If the terminal equipment clocks the encoder data with the echoed clock, the RoadRunner may be located up to 4000 feet (1219 meters) from the terminal equipment without concern for encoder-to-clock skew.

  • Page 17: V.35 Using The Dif102 Digital Interface

    RoadRunner because of its size. Instead, a smaller DB15 connector is used. In the case of the V.35 interface, the RoadRunner conforms to the electrical specification but requires an adapter cable to convert the DB15 connector to the connector specified in the V.35 specification.

  • Page 18: Isdn Using The Ta201 Terminal Adapter

    RoadRunner when ordering, your TA101 will have the correct ROM chip installed. Please check with your local distributor, CCS Europe or MUSICAM USA if you will be taking your RoadRunner to foreign countries. Configuring the TA101 is discussed in later sections.
  • Page 19 RoadRunner U S E R S G U I D E <Maint><Dig I/F><Type><TA301>...

  • Page 20: Roadrunner Setup

    (V35XTA or X.21XTA) is not selected, the ON LINE lamp will remain illuminated. The RoadRunner is fully configured and controlled using the built-in keypad and display. In addition, a full set of remote control commands is included so that your RoadRunner can be operated from a PC or terminal. following sections...
  • Page 21 RoadRunner U S E R S G U I D E The following discussion of menu navigation is based on the basic keypad and display as shown in the following figure. The top line of the display is for information and prompts. The bottom line is for menu choice selection and information entry.

  • Page 22: Selecting A Digital Interface Module (Dif)

    If the DIF was not factory installed, or if you change DIFs, you need to note: select the Digital Interface the first time you use the RoadRunner with that DIF. Once a DIF has been physically installed, you must set the RoadRunner to recognize the module.

  • Page 23: Terminal Adapter Ta101

    The TA101 requires country specific ROM chips for use in different countries. Please contact MUSICAM USA, CCS-Europe or your local distributor for information if you plan to take your RoadRunner to a different country. Probably the most confusing aspect of ISDN codecs is configuring the Terminal Adapter for the ISDN in your area.

  • Page 24: Switch Type (North America And Germany Only)

    RoadRunner U S E R S G U I D E Switch Manufacturer, e.g. AT&T, Seimens, Northern Telecom. ISDN ‘flavor,’ e.g., National ISDN or Custom Point-to-Point. note: Please note that the TA101 terminal adapter will not work with AT&T Custom Point-to-Multipoint nor will it work with AT&T National ISDN software revision 5E9.1.

  • Page 25: Service Provider Id (Spid) Number (North America Only)

    SPID and ID number since these are not supported. Since SPID and ID numbers are not entered, you must tell the RoadRunner not to look for them, by setting Local Check to NONE, using the menu sequence <TA101><Setup><Lcl Chk><None>...

  • Page 26: Identification (Id) Number (North America Only)

    For the TA101 terminal adapter, the ID number is just the last four digits of the seven digit ISDN line number connected to the RoadRunner. Use the <TA101><Setup><ID> branch, and enter the ID for each ‘B’ channel. You can use the CLD command from a terminal.

  • Page 27: Reset

    U S E R S G U I D E This command is used when a RoadRunner is connected to a digital PBX. If the TA101 is directly connected to an NT1, then the sub-address should be set to 0.

  • Page 28: Terminal Adapter Ta201 And Ta301

    ‘U’ interface, therefore an external NT-1 must be used between the TA201 outside RoadRunner and the wall jack. Elsewhere, the Telco provides an S/T North America. interface and an external NT-1 is not needed. The TA201 contains all...

  • Page 29: Service Provider Id (Spid) Number

    Service Provider ID (SPID) Number For most areas in North America, the TA must be told the SPID number of the calling ISDN line, that is, the line to which the RoadRunner is connected. The ISDN service provider in your area provides this note: number.

  • Page 30: Configuration, Non-North American Operation

    BRI (2x64 or 2x56 kb/s) line. The TA201 contains all country specific configuration and provisioning information in memory, and there is no need to change ROM chips when using your RoadRunner in a different country. If the desired country is not listed, try the Germany setting with switch type DSS1.

  • Page 31: Llc (Low Level Command) State (Uk Only)

    64 kb/s channel, numbers between 1 and 8. <TA201><Setup><country><Sub addr> or use the CSA command. The RoadRunner’s interface mode has a different meaning for the TA201 terminal adapter when not used in North America. Some ISDN implementations in some countries require LLC (Low Layer Compatibility) to be turned off.

  • Page 32: Other Ta Parameters - Auto Answer, Auto Reconnect, Dial Time Out And Redial Attempts

    Remember, however, that when this feature is enabled, only the calling note: RoadRunner can terminate the connection. Also note that the RoadRunner will only attempt to redial for the number of times for which REDIAL is set. The CRD command (Redial), <Maint><Dig I/F><Redial>...

  • Page 33: Terminal Adapter Ta201/Ta301 Software Version

    <TAx01><Setup><country><Version> or use the VER command. Using TA Configuration Memory The RoadRunner has the capability to store and recall up to 20 different TA configurations. This feature is ideal if you use your RoadRunner from multiple locations. For example, once you have set up a TA for use in a particular venue, you have only to recall that setup the next time you return to that venue.

  • Page 34: Stored Configuration Table Maintenance

    ENTER Stored Configuration Table Maintenance The RoadRunner is capable of storing up to twenty location specific TA configurations. Adding new configurations is as easy as saving the current configuration, as described above. Loading a table entry from...

  • Page 35: Audio Output Muting

    When connecting the RoadRunner to external mixers or recording devices, it is easiest to adjust the levels by putting the RoadRunner into loopback <Sys LB><Loopback>. Don’t forget to take the RoadRunner out of loopback when done.
  • Page 36 When in loopback When in single line mode, any audio fed into the RoadRunner will appear at the return mode, the loopback audio outputs. System loopback can be used when the RoadRunner is bit rate defaults to either on-line or off-line.

  • Page 37: The Session

    The first step is, of course, negotiating with the far-end user. Determining what algorithm, bit and sample rates you want to use, and who will make the call. The next step is configuring your RoadRunner, and the last step is connecting.
  • Page 38 Therefore, when receiving audio from a standard Layer II codec, the audio you hear will be Layer II, but the audio heard at the far-end will be MUSICAM. MUSICAM encoding makes any Layer II decoder sound better.

  • Page 39: Quick Setup

    (112 and 128 kb/s) Layer III can provide transparent 20 kHz monaural audio but still has the same disadvantages. Even at high bit rates, Layer III has long delay, does not cascade as well as MUSICAM, and is adversely affected by post-processing. In some applications,...
  • Page 40 G U I D E Once in the setup sequence, enter the bit rate, sample rate and line format. The following parameters are required: Algorithm: MPEG Layer 2, CCSN, CCSO, (all MUSICAM note: algorithms), MPEG Layer 3 or G.722 Sample Rate: 16, 24, 32 or 48 kHz.

  • Page 41: Quick Status

    64 kb/s. EXAMPLE 1 - QUICK SETUP OF ENCODER AND DECODER For this example, we will configure the RoadRunner for MPEG Layer 2 operation at 128 kb/s, with 24 kHz sampling. We will be connecting to another RoadRunner, thus using a decoder independent ‘NO’...

  • Page 42: Advanced Setup

    U S E R S G U I D E state. LB indicates the RoadRunner is in loopback, IND indicates decoder independent operation and blank indicates normal operation. The bottom line shows the connect time, the selected encoder bit rate and line format.
  • Page 43 Line Format from Line 1 to Line 2. EXAMPLE 2 – ADVANCED SETUP OF ENCODER AND DECODER In this example, we will set the RoadRunner to send low-delay G.722 to a far-end codec, but we will set the RoadRunner to receive high-fidelity MPEG Layer 2 at 128 kb/s from the far end.

  • Page 44: Setup Using Quick Configurations And Speed Dials

    Setup Using Quick Configurations And Speed Dials The RoadRunner has a Speed Dial directory capable of holding up to 256 entries. Each entry contains all the information required to completely configure the RoadRunner’s encoder and decoder sections, as well as (optionally) storing up to two ISDN ’B’...

  • Page 45: Pre-Programmed Quick Configurations

    U S E R S G U I D E Pre-Programmed Quick Configurations Your RoadRunner shipped from the factory with many of the most common configurations pre-programmed into the speed dial directory. Using these pre-programmed configurations insures trouble free communications with all MUSICAM USA and CCS Audio Products codecs, and most other compatible codecs.
  • Page 46 RoadRunner U S E R S G U I D E Description Sample Algorithm Line Decoder Prima Zephyr Setup Rate Rate format Indep. Equiv. L2/56/24NO:QS MPEGL2 Line 1 xmit = L2HALF L2/56/24YES:QS MPEGL2 Line 1 rcv = L2 56/48 L2/56/32NO:QS...
  • Page 47 RoadRunner U S E R S G U I D E Description Sample Algorithm Line Decoder Prima Zephyr Setup Rate Rate format Indep. Equiv. L3/56/48NO:QS Layer 3 Line 1 L3/56/48YES:QS Layer 3 Line 1 xmit = L3DUAL rcv = L3...

  • Page 48: Receiving Calls

    EXAMPLE 3 – SETUP USING QUICK CONFIGURATIONS In this example, we will be connecting to a codec not made by MUSICAM USA, bit we want to get the best possible audio quality. We have chosen to use MUSICAM enhanced MPEG Layer 2 at 128 kb/s, 48 kHz sampling.

  • Page 49: Manual Dialing

    ENTER selected 112 or 128 kb/s operation or 2-line dialing, you will be prompted to enter a second number. RoadRunner remembers the last number dialed on each line until power is removed. You can abort the dialing sequence at any time by pressing the up arrow key before the connection is established.

  • Page 50: Call Termination

    RoadRunner U S E R S G U I D E You can abort the dialing sequence at any time by pressing the up arrow key before the connection is established. Once the connection has been established, press the key followed by the...

  • Page 51: Advanced Features

    RoadRunner contains many advanced features for customizing your sessions. Broadcasting With a single RoadRunner, it is possible to send the same audio program to two different locations simultaneously. In addition, it is also possible to monitor the return audio from either of the two locations, and instantly switch between them.

  • Page 52: Advanced Encoder And Decoder Settings

    Only MUSICAM USA’s Prima Series Prima LT Series and RoadRunner codecs support ACE. ACE is also not bi-directional. If you enable scale factor protection on your encoder, the far end decoder must also enable scale factor protection or audio is muted.

  • Page 53: Sine Detector

    The state of these bits is can be observed using the decoder status bits on all Prima. Prima LT and RoadRunner codecs. Status bits (DRS) — The status bits are used to ‘read’ the status of the user selectable encoder header bits.

  • Page 54: Decoder Mute

    Quick Configurations, which only configure the codec, and Speed Dial entries, which not only configure, but dial up to 2 ISDN numbers. MUSICAM USA has pre-programmed 45 basic configurations as well as 4 entries that will dial our 24–hour Music Line test number.

  • Page 55: Editing An Existing Entry

    RoadRunner U S E R S G U I D E RoadRunner will return an ID number that can be used to recall the configuration. Alternatively, you can use the CSE command from a terminal. Saving the current configuration when the RoadRunner is not connected to another codec (off-line) creates a non-dialing Quick Configuration.

  • Page 56: Manual Entry Of Quick Configuration Or Speed Dial

    SDSET sequence. Follow the prompts, entering all information in sequence. The RoadRunner will return the ID number of the new entry. If you enter the ‘#’ character as the phone number, the entry will be saved as a non-dialing Quick Configuration.

  • Page 57: Deleting Quick Configurations And Speed Dial Entries

    <Delete entry> from the menu and enter the ID number of the entry to delete. You will not be prompted to verify your selection before the RoadRunner deletes it. You can also use the CDS command from a terminal. If you do not know the ID number of the entry you want to delete, scroll through the directory by pressing the SDSET button and selecting the <View Dir>...

  • Page 58: Prima Logic Language

    ‘event-to-action’ logic designed specifically for RoadRunner monitor and control. On the RoadRunner, there are various inputs called events. One class of events is switch closures, which can be either internal ‘virtual’ switches, or external switches. Other events are based on detectors, such as frame detection, and status detection.

  • Page 59: Ancillary Data

    RoadRunner U S E R S G U I D E It is these “Virtual Actions” that make the RoadRunner so powerful. Some examples of the use of Virtual Actions include auto-configuration and automatic STL backup. To access the LL programming menu, use the keypad sequence: <Logic Language>...

  • Page 60: Remote Control

    Decoder format. From a terminal, use the EAF and DAF commands. Remote Control The RoadRunner can be connected to a computer or terminal for remote control operation. Any terminal emulation program for PC, Macintosh or Sun can be used as long as VT-100 emulation, no parity, 8 data bits and 1 stop bit is supported.

  • Page 61: Far-End Remote Control

    Far-End Remote Control With an attached terminal, you can do the following: (1) you can control your RoadRunner, (2) you can control a far-end RoadRunner, and (3) you can control a far-end Prima series codec. Far-end remote control is only possible when both codecs are framed using any MPEG Layer 2 configuration (including MPEGL2, CCSN and CCSO) and when both ends are set to the MUX mode of ancillary data.

  • Page 62: Opto Inputs And Relay Outputs

    As configured from the factory, each optical input (LL Action) is linked to a corresponding relay on the far-end codec (LL Event) through ‘Links’. Toggling the optical input will toggle the relay on the far-end RoadRunner or Prima series codec. Using Logic Language, you can easily re-define these factory defaults.

  • Page 63: Software Maintenance And Upgrading

    To determine if new or upgraded software is available, contact MUSICAM USA or CCS Europe. You can also log on to our Web Site at www.musicamusa.com, follow the links to Technical Support for the RoadRunner, and check the current software version.

  • Page 64: Rebooting And Resetting Factory Defaults

    G U I D E Rebooting and Resetting Factory Defaults It may sometimes be necessary to re-boot the RoadRunner. Re-booting is as simple as turning the RoadRunner off and then on again. The RoadRunner remembers the last configuration loaded, and will re-boot note: using the last known configuration.

  • Page 65: Keypad Beeper And Display Brightness

    G U I D E Keypad Beeper and Display Brightness The RoadRunner contains a keypad beeper that provides feedback to the user by emitting a short chirp sound each time a key is pressed. In some applications, it may be necessary to mute this beep, and this can be done using the keypad sequence <Maint><Beeper>...

  • Page 66: Troubleshooting

    But what do you do if something doesn’t work? The first instinct may be to blame what you can see, that is, the RoadRunner. Before you kick the RoadRunner, or even kick the cat, you will need to determine just what part of the complete system is giving you problems.

  • Page 67: No Audio When Connected To

    G U I D E present at the output. Do not attempt to change the encoder/decoder bit rate while the RoadRunner is in loopback. The current line format sets the loopback bit rate. If the RoadRunner is configured for one-line operation, the loopback bit rate is 64 kb/s.
  • Page 68 2. Try connecting to our Music Line (732-706-1437, 56 or 64kb/s, single line). 1. Decoder must be set to —Non MUSICAM USA codec at far end Independent YES when connecting to non-MUSICAM USA codecs. —Algorithm mismatch 1.

  • Page 69: Echo

    RoadRunner U S E R S G U I D E Line 1. If you connect using Line 2, the selected lines must be changed. RoadRunner —Scale factor protection 1. If encoder scale factor mismatch. protection is enabled, far-end connects and...
  • Page 70 (North American operation) If your RoadRunner connects and frames, but the line drops after time (several minutes to several hours) this may be a problem with the ISDN service or with the NT1 (North American operation). We have seen this before, we have even replaced codecs, terminal adapters, and NT1’s,...

  • Page 71: Connection Problems (Non-Isdn)

    When using multiple line it is important that all lines use the same clock, since any clock drift between lines will cause problems with the RoadRunner. As an example, dedicated lines 3 and 4 are contiguous and on the same di-group, but channels 4 and...

  • Page 72: Ta101 Setup

    If you can connect and frame on each line individually, but not when using multiple lines, then you should verify the above with your service provider before calling MUSICAM USA for assistance. You may have to use a decoder independent configuration.
  • Page 73 SPID number that begins with ‘01’ and ends with only one ‘0’. Add two more zero’s, for a total of three, then enter the SPID number into RoadRunner. You must enter ‘NI1’ as the switch type. If you have been given only one SPID number, enter this number for the first ‘B’...

  • Page 74: Ta201 / Ta301 Setup

    ‘1’ in front of the SPID number. Select NTI as the switch type. TA201 / TA301 Setup The most common problems that RoadRunner users experience is with terminal adapter setup. Most problems are due to improper provisioning of your ISDN service, or improper TA configuration. The easiest way to be sure your service is provisioned properly is to FAX Appendix F to your service provider.

  • Page 75: Control Problems

    You must use a seven-digit ID number when using a TA201/TA301. Very early versions of the TA201/301 did not support 56 kb/s operation. MUSICAM USA will be happy to upgrade any of these early units if you require 56 kb/s connectivity. Control Problems...
  • Page 76 RoadRunner U S E R S G U I D E error message arguments for when configuring command or speed dialing — I ncorrect 1. Insure correct settings line/bit/sample rate/algorithm mode combination...

  • Page 77: Appendix A - Dif Pin Out Dif 101-X.21 / Rs449

    Appendices RoadRunner U S E R S G U I D E Appendix A — DIF Pin Out DIF 101—X.21 / RS449 DB15F connector, both connectors on card wired as follows: Function Function Frame Ground TD A TD B CON A...

  • Page 78: Appendix B - Rear Panel Pin Outs

    RoadRunner U S E R S G U I D E Appendix B — Rear Panel Pin Outs Relay outputs and opto-inputs: Relay A, normally open OPA+ Relay A, normally closed OPA- Relay A, common OPB+ OPB- Relay B, normally open...

  • Page 79: Appendix C - Isdn Ordering And

    ISDN service provider. If provisioned as shown on these pages, your IDSN circuit will work with your RoadRunner, regardless of terminal adapter used. If given a choice between AT&T Custom or National ISDN, we recommend National ISDN.

  • Page 80: Fax

    RoadRunner U S E R S G U I D E AT&T 5ESS Custom FAX-PAGE 1 Request from the telephone company an ISDN line in a “Point To Point” configuration with 2B1Q line code. Your ISDN line must be configured to allow circuit switched data on both B-channels and signaling on the D- channel.

  • Page 81: Fax

    RoadRunner U S E R S G U I D E AT&T 5ESS - National ISDN 1 FAX-PAGE 2 Request from the telephone companies a National ISDN 1 ISDN line in a “multipoint” configuration with 2B1Q line code. The optional “multipoint”...

  • Page 82: Fax

    RoadRunner U S E R S G U I D E AT&T 5ESS — Custom FAX-PAGE 3 2B1Q line code 2B&D line - Point To Point B1 - circuit switched voice/data B2 - circuit switched voice/data D - signaling only set MTERM to 1 set MAXB CHNL to 2;...

  • Page 83: National Isdn

    RoadRunner U S E R S G U I D E Northern Telecomm DMS-100 BC-35 National ISDN 1 FAX-PAGE 4 Request from the telephone companies a National ISDN 1 ISDN line with 2B1Q line code. Your ISDN line must be configured to allow circuit switched data on both B-channels and signaling on the D-channel.

  • Page 84: Fax

    RoadRunner U S E R S G U I D E Northern Telecomm DMS-100 BC-35 National ISDN 1 FAX-PAGE 5 2B1Q line code 2B&D line B1 - set circuit switch to YES; set BEARER RESTRICTION to NOPMD (no packet) functional version 2; (PVC 2)

  • Page 85: Appendix D - Menu Tree - Isdn Operation

    RoadRunner U S E R S G U I D E Appendix D — Menu Tree – ISDN Operation Setup Sequence MPEGL2 Activate Status Setup Sequence MPEGL3 Activate Setup Sequence Operation G.722 Activate Setup Sequence CCSO Activate Setup DIF/TA Save...

  • Page 86: Appendix E - Warranty

    Units must be returned postage pre-paid. It is recommended that the unit be insured and securely packed when shipped. Units returned which are out of warranty will be repaired or replaced (at the option of MUSICAM USA) and the customer will be charged for parts and labor at current rates.
  • Page 87 While every effort on the part of MUSICAM USA has been made to provide clear and accurate technical information on the application of its products, MUSICAM USA assumes no liability in any events which may arise from the use of said technical information.
  • Page 88 HELP, 41 Unbalanced, 28 MPEG Layer 2, 4, 31 MBX, 44 ISDN Provisioning, 57 MPEG Layer 3, 4, 31 MVN, 42 MUSICAM, 4, 31 VER, 27 Keypad, 4, 15 Audio mixer, 28 Comrex, 35 Alphanumeric, 15 Automatic redial, 26 Beeper, 44...
  • Page 89 Configuration memory, Switch type, 18, 22, 24 Scale Factor Protection, 27, 28 TA101, 6, 13, 17 34, 35 Connections, 7 TA201, 6, 13, 22, 24 Software Country selection, 13, TA301, 7, 13, 22 Upgrade, 4, 42 17, 23, 24 Time out, 26 Version, 42 EAZ, 20 Version, 27...
