Sonifex Reference Monitors RM Series User Handbook Manual

Reference monitors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Reference Monitors
User Handbook
RM-2S4
Reference Monitor, 2 LED meters & 4 stereo
channel inputs
RM-2S10
Reference Monitor, 2 LED meters & 10 stereo
channel inputs
RM-4C8
Reference Monitor, 4 LED meters, 8 channel
inputs & dual selectors
RM-4C8-HDE1 Reference Monitor RM-4C8 With RM-HDE1
Dolby* Decoder Card
RM-4C8-E1X
Reference Monitor RM-4C8 With RM-E1X
Dolby* Decoder Card
RM-4C8-E1B
Reference Monitor RM-4C8 With RM-E1B
Dolby* Decoder Card
RM-HD1
3G/HD/SD-SDI expansion card
RM-HDE1
3G/HD/SD-SDI Dolby* E Decoder
expansion card
RM-E1X
Dolby* E Decoder expansion card
RM-E1B
Dolby* E Decoder expansion card

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reference Monitors RM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sonifex Reference Monitors RM Series

Summary of Contents for Sonifex Reference Monitors RM Series

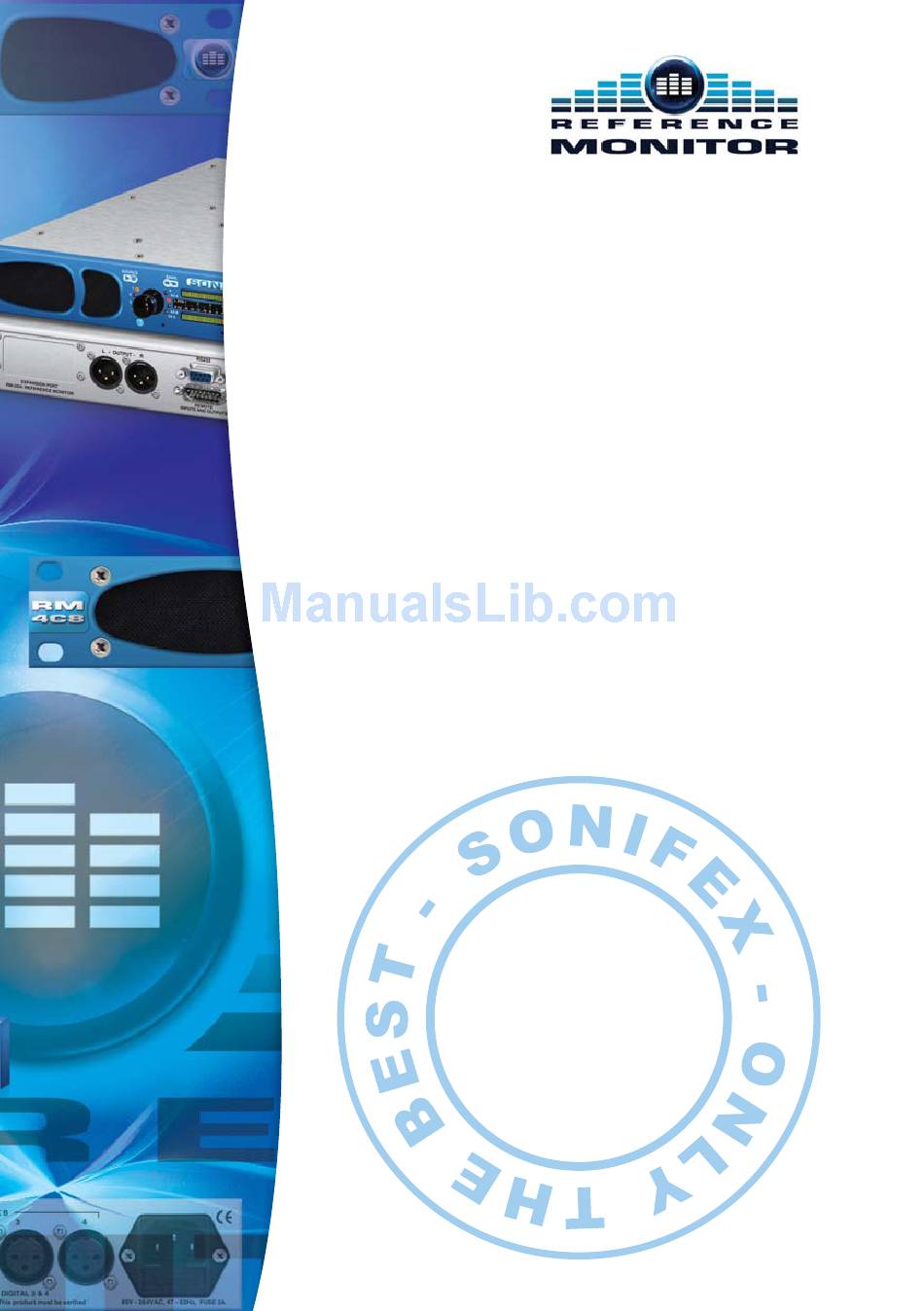

  • Page 1 Reference Monitors User Handbook RM-2S4 Reference Monitor, 2 LED meters & 4 stereo channel inputs RM-2S10 Reference Monitor, 2 LED meters & 10 stereo channel inputs RM-4C8 Reference Monitor, 4 LED meters, 8 channel inputs & dual selectors RM-4C8-HDE1 Reference Monitor RM-4C8 With RM-HDE1 Dolby* Decoder Card RM-4C8-E1X Reference Monitor RM-4C8 With RM-E1X...
