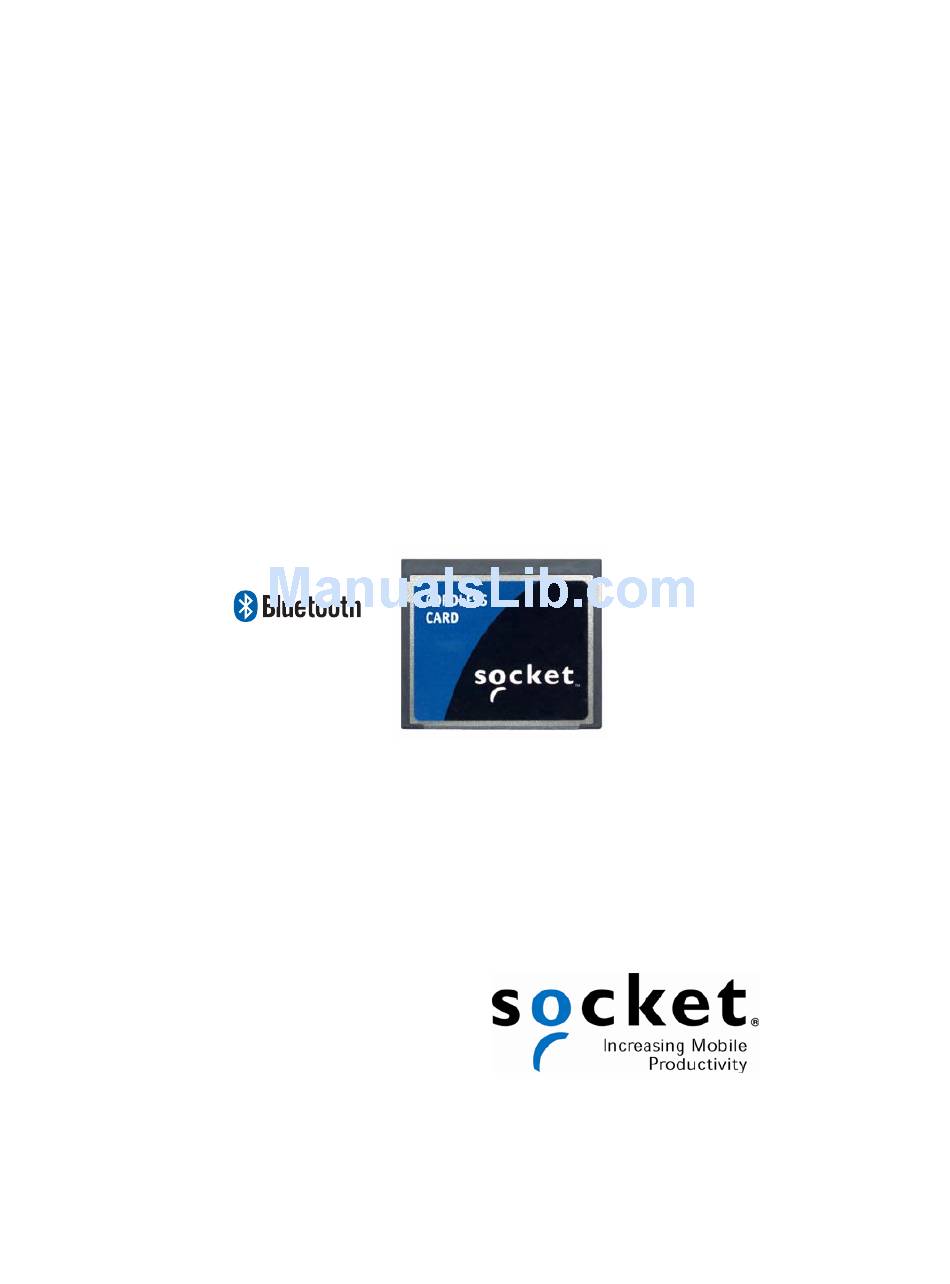

Socket CompactFlash Connection Kit User Manual

With bluetooth® wireless technology
Hide thumbs Also See for CompactFlash Connection Kit:

Advertisement

Quick Links

CompactFlash Connection Kit
®
with Bluetooth
Wireless Technology
Featuring the Cordless Card and software for adding Bluetooth
capability to Pocket PCs and other Windows Mobile-based
devices with CompactFlash slots
User's Guide
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CompactFlash Connection Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Socket CompactFlash Connection Kit

  • Page 1 CompactFlash Connection Kit ® with Bluetooth Wireless Technology Featuring the Cordless Card and software for adding Bluetooth capability to Pocket PCs and other Windows Mobile-based devices with CompactFlash slots User’s Guide ®...
  • Page 2: Copyright Notice

    Socket Communications, Inc. dba Socket Mobile, Inc. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket Mobile, Inc. All other brand and product names are trademarks of their respective holders.
  • Page 3: Table Of Contents

    Table of Contents COPYRIGHT NOTICE 1 | INTRODUCTION About the Software System Requirements Package Contents Product Registration Other Packages Available 2 | INSTALLATION STEP 1: Install the Software STEP 2: Complete the Bluetooth Setup Wizard STEP 3: Insert the Card Turning the Radio Transmitter ON/OFF Enabling/Disabling IrDA Ports 3 | MY BLUETOOTH DEVICE MANAGER...
  • Page 4 STEP 2: Get Connected! to Bluetooth Phone STEP 3: Create a Dial-up Connection Profile STEP 3: Dial-up to Your Network Automatic Phone Connections 9 | SOCKET DIALER 10 | FAXING AND PRINTING APPENDICES: A | SPECIFICATIONS B | SAFETY AND USAGE TIPS...
  • Page 5: Introduction

    • LAN access points Faxes Socket cards are the only plug-in cards to incorporate all Bluetooth components, including the antenna, within the CompactFlash Type I form factor. Compact card design means increased portability and less chance of damage during usage. The CompactFlash Socket Cordless Card fits entirely within a CompactFlash slot.
  • Page 6: System Requirements

    • Get Connected! Wizard — This handy wizard guides you through the process of connecting to a phone for dial-up networking. • Socket Dialer — With this program, all it takes is a tap on a name in your contact list, and your mobile computer will have your phone start dialing the number.
  • Page 7: Product Registration

    Product Registration Socket highly recommends that all customers register their Socket products. Registered users receive the following benefits: • Priority for technical support • Special offers for future products and product updates • The latest new product information Register online at: www.socketmobile.com/support/support/new.
  • Page 8: Installation

    2 | I NSTALLATION This chapter covers installation instructions for the Connection Kit with Bluetooth Wireless Technology. After completing the installation instructions in this chapter, proceed to the appropriate chapter for your device and application. Installation Summary STEP 1: Install the software STEP 2: Complete the Bluetooth Setup Wizard STEP 3: Insert the card into your mobile computer Turn transmitter on/off...
  • Page 9: Step 1: Install The Software

    STEP 1: Install the Software Note: The OBEX and Socket Dialer software are optional to install. Do not install them until you have already installed the main Bluetooth software. ADVANCED USERS: Refer to the README file for CAB installation instructions.
  • Page 10 5. The Setup Center will launch in your browser. Follow the instructions on your screen to begin the software installation. • Read the information in the first screen, then click next. • In the Main Page, click Install Software. • In the Installation screen, scroll down to read the instructions for Windows CE, then click on the Windows CE link.
  • Page 11 7. The Socket Bluetooth Software Setup program will begin. Follow the wizard to install the software on your Windows Mobile-based device. 8. If desired, install the software for Socket OBEX and/or the Socket Dialer. In the Socket Connection Kit Setup Center, in the Installation Page scroll down and click Socket OBEX or Socket Dialer.
  • Page 12: Step 2: Complete The Bluetooth Setup Wizard

    STEP 2: Complete the Bluetooth Setup Wizard 1. After you install the software, the Socket Bluetooth Setup Wizard will automatically launch on your device. Tap Next. 2. In the next screen, give your device a friendly name that other devices will see when they search for other Bluetooth enabled devices.
  • Page 13 3. If your device has fewer than 6 COM ports available, the Disable IrDA? Screen will appear so you can free more ports. Tap Next. 4. In the next screen, choose the four ports and services that you plan to use most often.
  • Page 14: Step 3: Insert The Card

    STEP 3: Insert the Card IMPORTANT! Do NOT insert the card upside down or shove the card in too hard. Damage may occur! 1. Insert the card into your device’s card slot. Make sure the card is right- side up. Push the card all the way in. When properly inserted, the CF card will be fully contained within the slot.
  • Page 15: Turning The Radio Transmitter On/Off

    2. In the pop-up menu, select Turn Transmitter OFF. Note: The menu will list Transfer via Bluetooth only if you installed Socket OBEX. 3. The card’s radio transmitter will shut off. The Bluetooth icon in the task bar will become gray, as will menu options that require the radio to be turned on.
  • Page 16: Enabling/Disabling Irda Ports

    Enabling/Disabling IrDA Ports The Socket IrDA utility allows you to enable/disable the infrared port of your device to provide additional ports for Bluetooth connections. 1. Tap Start | Settings | System tab | IrDA. 2. Select the IrDA setting and tap ok.
  • Page 17: My Bluetooth Device Manager

    Device. Note: Transfer via Bluetooth will appear only if you installed Socket OBEX. 3. The Bluetooth Device Manager will appear, with the General screen open. Tap on the tabs on the bottom to view additional device properties. CHAPTER 3: MY BLUETOOTH DEVICE MANAGER...
  • Page 18: General Device Settings

    • Connectable: You do not need to enable this. If you want to accept a connection from another Bluetooth enabled device (e.g., to connect to a Socket Cordless Serial Adapter set to Initiator mode): • Discoverable: Check this box. • Connectable: Check this box.
  • Page 19: Assign Com Ports

    Assign COM Ports Follow these steps to view and/or modify the Bluetooth COM ports. 1. Tap on the COM Ports tab. As needed, view and/or enable/disable the Bluetooth COM port assignments. Note: The Bluetooth Phone port cannot be disabled. 2. To disable a COM port, uncheck a box. In the next screen, click Yes. IMPORTANT! After you finish configuring all of your settings, tap ok to exit the Device Manager and make the settings take effect! CHAPTER 3: MY BLUETOOTH DEVICE MANAGER...
  • Page 20: Configure Object Sharing

    Configure Object Sharing 1. Tap on the Object Sharing tab. 2. To assign a business card or folder for others to remotely access, tap on the appropriate Assign button. After selecting the contact or folder, tap ok. IMPORTANT! After you finish configuring all of your settings, tap ok to exit the Device Manager and make the settings take effect!
  • Page 21: Bluetooth Devices Folder

    4 | B LUETOOTH EVICES OLDER This chapter explains how to use the Bluetooth Devices folder, which manages your connections with other Bluetooth enabled devices. The steps covered in this chapter include: • Using the Bluetooth Device Discovery Wizard • Using the Bluetooth Device Bonding Wizard •...
  • Page 22: Discover Bluetooth Device(S)

    Discover Bluetooth Device(s) The Device Discovery wizard helps you search for Bluetooth enabled devices, which you can save in the Bluetooth Devices folder for future connections. Note: Depending on your device type, you may want to use one of the device-specific services instead of the Device Discovery Wizard.
  • Page 23 4. Your mobile computer will search for Bluetooth enabled devices in range. 5. After searching, your mobile computer will report the devices it found. Check the box for any device you wish to save to your Bluetooth Devices folder, (i.e., any device you wish to connect to). Tap Next. 6.
  • Page 24: Bond With Discovered Device(S)

    Bond with Discovered Device(s) The Device Bonding wizard helps you bond with devices that already saved to your Bluetooth Devices folder. Note: Depending on your device type, you may want to use one of the device-specific wizards instead of the Device Bonding Wizard. •...
  • Page 25 3. As prompted, make sure the Bluetooth enabled device that you want to bond with is in Bondable mode. 4. If the remote device is set up to accept bonding, a Bluetooth Passkey screen will appear. To continue bonding, enter the correct passkey and tap Reply.
  • Page 26: View Device Properties

    View Device Properties Follow these steps to view the properties of a device that you have already discovered and saved to the Bluetooth Devices folder. 1. In the Bluetooth Devices folder, select a device, then tap on the Properties button. Alternatively, you can tap Device | Properties or hold your stylus on the device and in the pop-up menu, select Properties.
  • Page 27: Set Up Your Favorite Device

    Set up Your Favorite Device Follow these steps to set up default devices in the Bluetooth Devices folder. Whenever your mobile computer is configured for automatic connections, it will try to connect to your favorite device of a particular type. Note: The Get Connected! Wizard automatically assign the favorite phone.
  • Page 28: Change Views

    Change Views You can switch between the Large Icons or Details views for the Bluetooth Devices folder. 1. In Bluetooth Devices, tap on View. 2. In the pop-up menu, choose between Large Icons or Details. Note: In Details view, scroll right to see the current Bonded status. Delete a Device from the Folder If you no longer plan to connect with a device, you can delete it from the Bluetooth Devices folder.
  • Page 29: Serial Port

    Socket Cordless Serial Adapter, or other Bluetooth enabled device that supports the Serial Port Profile. Note: To use the Socket Connection Kit to connect your device to the Socket Cordless Ring Scanner or Socket Cordless Hand Scanner, Socket recommends using either the Connect!Agent or SocketScan software, included with the bar code scanner, to create the Bluetooth connection.
  • Page 30: Step 1: Enable Bluetooth Serial Com Port

    STEP 1: Enable Bluetooth Serial COM Port 1. Tap on the Bluetooth icon at the bottom of the Today screen. In the pop-up menu, tap Advanced Features | My Bluetooth Device. 2. The General screen will appear. Tap on the COM Ports tab. 3.
  • Page 31: Step 3: Discover Bluetooth Serial Device

    STEP 3: Discover Bluetooth Serial Device Use the Device Discovery wizard to search for your serial device, as described in Chapter 4. When asked what type of device you want to find, select Any Bluetooth device. STEP 4: Bond with Bluetooth Serial Device Use the Device Bonding wizard to bond with your serial device, as described in Chapter 4.
  • Page 32: Step 5: Configure Application For Connection

    STEP 5: Configure Application for Connection Make sure to configure your Bluetooth serial application for the correct COM port, baud rate, and other settings. 1. Make sure your application is set to use the same COM port that is assigned to the Bluetooth serial connection. 2.
  • Page 33: Object Exchange

    IMPORTANT! If you have not done so already, be sure to run the OBEX Installer from the Socket installation CD. Otherwise, you will not be able to perform any OBEX operations with the Socket card. In the Socket Connection Kit Setup Center, on the Installation page, scroll down and click on the OBEX Setup link.
  • Page 34: Exchange Business Cards

    Exchange Business Cards 1. Make sure both Bluetooth enabled devices have a business card assigned to them. Note: If each device does not have a business card assigned to it, you will not be able to exchange business cards. To assign a business card to your mobile computer, do the following: •...
  • Page 35 2. Make sure the other Bluetooth enabled device is set up to receive a business card. The device must support the OBEX Object Push profile. IMPORTANT! If the other device is not set up to receive a business card, you will not be able to send it a business card! 2.
  • Page 36: Send A Contact

    Send a Contact 1. Make sure the other Bluetooth enabled device is set up to receive a contact. It must support the OBEX Object Push server profile. Refer to the documentation that came with the device for instructions. IMPORTANT! If the other device is not set up to receive a contact, you will not be able to send it a contact! 2.
  • Page 37 4. Select the Bluetooth enabled device you wish to send the contact(s) to. If the desired device is not listed, tap Find to initiate another search. 5. Your mobile computer will process and send the contact(s). CHAPTER 6: OBJECT EXCHANGE...
  • Page 38: Send A File

    Send a File 1. Make sure the other Bluetooth enabled device is set up to receive a file. It must support the OBEX Object Push server profile. Refer to the device documentation for instructions. IMPORTANT! If the other device is not set up to receive a file, you will not be able to send it a file! 2.
  • Page 39: Browse Remote Device

    • Exit the program Note: “Local device” refers to the device you are using Socket OBEX on. “Remote device” refers to the device you are trying to transfer files to. There are three ways to perform functions in the Bluetooth File Explorer: the pop-up menu, the tool buttons and the menu options.
  • Page 40 Prepare for File Transfer 1. Make sure the remote device has file sharing enabled. It must support the OBEX File Transfer server profile. IMPORTANT! If the other device is not set up to share files, you will not be able to transfer files to it! 2.
  • Page 41 Send/Receive File(s) or Folder(s) 1. Select the file(s) or folder(s) that you wish to transfer. Single-tap items to select them for transfer. Double-tap on a folder to open it and see its contents. Note: A copy of the selected item will be transferred, not the original.
  • Page 42 Create a Folder 1. Tap on the File menu. Select Remote device or Local device, wherever you want to create a folder, then tap Create remote folder or Create local folder, as applicable. Alternatively, you can tap and hold your stylus on an item in either the remote or local device that you wish to put in a new folder.
  • Page 43 Refresh Remote View 1. Tap on the Device menu. Select Refresh remote view. 2. Your local device will begin to read the contents of the remote device. 3. After a few seconds, the view of the contents of the remote device will be refreshed.
  • Page 44: Receive Contact Or File

    Receive Contact or File 1. Tap on the Bluetooth icon. In the pop-up menu, tap Transfer via Bluetooth | Receive Contact or File. 2. The Receive Contact or File status screen will appear. Your mobile computer will wait two minutes for the contact or file. 3.
  • Page 45: Activesync And Lan Access

    7 | A LAN A CTIVE YNC AND CCESS This chapter explains how to use the Bluetooth ActiveSync and Bluetooth LAN Access features of the Connection Kit with Bluetooth Wireless Technology. The Bluetooth ActiveSync feature makes it easy to connect to a Bluetooth enabled notebook or desktop computer running ActiveSync 3.x or greater to synchronize information.
  • Page 46 ActiveSync. Note: The menu will list Transfer via Bluetooth only if you installed Socket OBEX. 2. The next screens will vary depending on if you saved any notebook or desktop computers to the Bluetooth Devices folder, and if you designated one as your favorite. Please refer to the appropriate scenario: 3.
  • Page 47 Bluetooth LAN Access 1. Tap on the Bluetooth icon. In the pop-up menu, tap Bluetooth LAN Access. 2. When you tap Bluetooth LAN Access, your mobile computer will automatically try to connect with your favorite access point. Notes: • If your Bluetooth Devices folder has no access points, a search will begin.
  • Page 48: Dial-Up Networking

    Note: Since you have a Bluetooth enabled phone, you may want to install the Socket Dialer onto your mobile computer (compatible only with Windows Mobile 2003/2003SE). With the Socket Dialer, you simply need to tap on a number in your Contacts list, and your Bluetooth enabled phone will begin dialing the number.
  • Page 49: Step 2: Get Connected! To Bluetooth Phone

    STEP 2: Get Connected! to Bluetooth Phone The Get Connected! Wizard guides you through a one-time setup process that prepares the mobile computer and phone for Bluetooth connections. The wizard varies depending on which phone you want to connect to. 1.
  • Page 50 5. The Pocket PC will search for Bluetooth enabled phones in range. 6. When the search is complete, a list of the discovered Bluetooth enabled phones will appear. Choose the phone that you wish to connect to, and tap Select. A service discovery phase will begin, lasting 5-10 seconds. 7.
  • Page 51 9. The phone may then either automatically accept the passkey or ask you to enter one. If asked for a passkey, use the same one you entered on the Pocket PC. Ericsson T68/T68i only: When the phone asks you if you want to bond , select 2: Add to paired devices.
  • Page 52: Step 3: Create A Dial-Up Connection Profile

    STEP 3: Create a Dial-up Connection Profile Before you create a connection profile, prepare yourself with network settings for your office network or ISP (as described in STEP 1). Note: These instructions are for a standard dial-up connection to an Internet Service Provider (ISP).
  • Page 53 3. In the Network Management screen, make sure My ISP is selected in the top field, and My Work Network is selected in the bottom field. Tap ok. 4. The Connections screen will appear again, showing the Advanced tab. Tap on the Tasks tab. Tap on the Tasks tab.
  • Page 54 5. In most cases, you should tap Add a new modem connection under My ISP. 6. In the next screen, enter the following: • Enter a name… Enter a name, such as “ISP via Bluetooth” • Select a modem: Select Bluetooth Phone Tap Next.
  • Page 55 Tap ok. In the last screen, tap Finish. Now you have finished creating a connection and are ready to dial up to your network. Socket recommends using either of two methods for dialing in and connecting to your network.
  • Page 56: Step 3: Dial-Up To Your Network

    STEP 4: Dial-up to Your Network For Windows Mobile 2003, 2003SE and 5.0, there are two primary methods for dialing into a network. METHOD 1: TAP ON THE CONNECTION ICON 1. Tap on the Connection icon in the navigation bar at the top of the screen.
  • Page 57 • If you did not save the dial-up password, the Network Log On screen may appear. Enter the Password and tap OK. 4. The device will begin dialing. After the device connects to the ISP, the “X” will disappear from the connection icon to indicate an active dial-up or network connection 5.
  • Page 58 METHOD 2: DIAL AUTOMATICALLY FROM THE APPLICATION Note: After you have set up a dial-up connection profile, the Connection Manager will automatically try to connect whenever you insert the card and try to use Pocket Internet Explorer, Pocket Inbox or any other program that requires a dial-up connection.
  • Page 59 4. Depending on your phone and connection settings, you may need to enter a passkey and/or a password before the phone will start to dial: • If you have a Nokia 3650/6310/7650/8910/8910i or Motorola Timeport 270C, you must complete the bonding process: a.
  • Page 60 7. To use a different Bluetooth enabled phone for dial-up networking, you can use the same connection setup, but you must make the new phone your favorite. Just run the Get Connected! Wizard again, select the new phone, and make it your new favorite when prompted. Alternatively, you can use the Bluetooth Devices folder to change your favorite phone (see Chapter 10 for instructions).
  • Page 61: Automatic Phone Connections

    Automatic Phone Connections Some Motorola and Nokia phones let you set up automatic Bluetooth connections with previously bonded devices, so you don’t have to manually enter a password every time you try to connect. Motorola Timeport 270C: 1. On the phone, press MENU. 2.
  • Page 62: Socket Dialer

    If you have not already assigned a dialing prefix during the install process, you can do so by following these steps: 1. Go to Start | Settings | System. Tap on Socket Dialer. 2. Select the appropriate Dialing Prefix, then tap ok.
  • Page 63 Use the Socket Dialer 1. To use the dialer, the mobile computer must already be connected to the Bluetooth enabled phone. You can use the Get Connected! Wizard to do this. Also, the Bluetooth enabled phone must be selected as your favorite.
  • Page 64 5. Your mobile computer will connect to your phone and begin dialing. Note: The Socket Dialer can dial a phone number containing any of the 17 following non-numeric characters: * # + . space A B C D T P W Additionally, the following string can be included in a phone number: (‘,’)
  • Page 65: Faxing And Printing

    10 | F AXING AND RINTING This chapter explains how use the Socket Connection Kit with Bluetooth Wireless Technology for wireless faxing and printing. Faxing Many Bluetooth enabled phones and other types of Bluetooth enabled devices support faxing. Note: The Socket Connection Kit does not include faxing software. You must obtain faxing software customized for Bluetooth wireless technology separately from a third party.
  • Page 66 3. Make sure a COM port is enabled for faxing. Tap on the Bluetooth icon and in the pop-up menu, tap Advanced Features | My Bluetooth Device. Tap on the COM Ports tab. In the COM Ports screen, make sure Bluetooth Fax is checked.
  • Page 67 Printing You can print using the PrintPocketCE program included on the installation CD. The Socket Connection Kit includes a 30-day trial version of PrintPocketCE. For a full version, please visit: www.fieldsoftware.com If you have not done so already, be sure to install the PrintPocketCE program.
  • Page 68 For a Pocket Excel file, the first screen lets you adjust printing properties. Tap Continue to select the correct printer and port. Instead of Bluetooth: Socket CF Card, you can choose the COM port assigned to your Bluetooth printer. 5. If needed, tap on More Settings to adjust margins, form feed, and other settings.
  • Page 69 7. The mobile computer will search for a Bluetooth enabled printer. After the search, a list of discovered printers will appear. Select the correct Bluetooth enabled printer, then tap Select. If the mobile computer fails to detect the Bluetooth enabled printer, make sure the printer is on, discoverable, and in range.
  • Page 70: Appendices A | Specifications

    With CompactFlash-to-PC Card Adapter: PCMCIA, Type II Serial Communications: TTL Software Compatibility: Windows COM port Operating System Support: Windows Mobile 2003, 2003SE and 5.0 Software Included: Socket Connection Kit Installation CD Compatible Applications: PrintPocketCE Warranty: CompactFlash Card: One year Certification: FCC: Part 15, Section 15.247...
  • Page 71: B | Safety And Usage Tips

    • Changes or modifications of this product, not expressly approved by Socket, may void the user’s authority to operate the equipment. Antenna Care Do not place a metallic shield around your Socket card since it will reduce the radio transmission efficiency. APPENDIX A: SPECIFICATIONS...
  • Page 72 2400 to 2500 MHz. The output power of the radio transmitter is 0.001 Watt. The Socket card unit is designed to be in compliance with the RF exposure limits set by national authorities and international health agencies when installed or used separately from other antennas or radio transmitters.
  • Page 73: C | Glossary

    Appendix C Glossary authentication The process of verifying the device at the other end of a connection by entering a passkey. band A range of frequencies or wavelengths used in radio transmission. Baud rate In telecommunications and electronics, the rate of the digital signal, measured in the number of distinct signaling events per second.
  • Page 74 discoverable Visible to other Bluetooth enabled devices in range. DUN (Dial-up Networking) A Bluetooth profile that provides Internet access through a modem. encryption A method of protecting data by scrambling it up and making it hard to read. Favorite Device A default device, chosen by the end user, for a specific Bluetooth class.
  • Page 75 RF (Radio Frequency) The frequency at which a radio wave travels. Serial Port Profile A Bluetooth profile that provides serial communications for transferring data, such as for connecting to GPS receivers, bar code scanners, etc. service A profile or function supported by a Bluetooth enabled device, such as printing, dial-up networking, etc.
  • Page 76: D | Troubleshooting

    If using a pre- assigned passkey for the phone, verify that your passkey is correct. SYMPTOM: When I insert the Socket card, I get a message that says Unrecognized Card. POSSIBLE REASONS SOLUTION You did not install the software for Remove the card and install the the Connection Kit yet.
  • Page 77 POSSIBLE REASONS SOLUTION Your mobile computer’s battery is Recharge the battery. low. The Socket card has been in Tap on the Bluetooth icon, then select My Bluetooth Device. Discoverable mode for a long time. Uncheck Discoverable. This mode requires a lot of battery power and should be turned off whenever not needed.
  • Page 78: E | Technical Support

    Appendix E Technical Support Socket On-Demand Support (SOS) Socket On-Demand Support (SOS) is a virtual technical support assistant that focuses in on your specific question to provide the specific answers you need. SOS provides the quickest turnaround time and is the best place to start for technical support.
  • Page 79: Technical Support

    Technical Support IMPORTANT! To obtain technical support for your product, you must first register your product online at www.socketmobile.com/support/support/new After product registration, log in and click on the Technical Support tab. Click on Create New Ticket to submit an online request. If we are unable to resolve your support inquiry via email, we can arrange for a technical support engineer to call you at a specific time.
  • Page 80: Limited Warranty

    Incompatibility is not a defect covered by Socket’s warranty. During the warranty period, Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center.
  • Page 81 90 days from the date of delivery of the SOFTWARE. CUSTOMER REMEDIES. SOCKET’S entire liability and your exclusive remedy shall be, at SOCKET’S option, either (a) return of the price paid or (b) replacement of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which is returned to SOCKET with a copy of your receipt.
  • Page 82: Regulatory Compliance

    Regulatory Compliance CompactFlash Card The Socket Connection Kit with Bluetooth Wireless Technology is designed to be compliant with the rules and regulations in locations where they are sold and will be labeled as required. This product is type approved — users are not required to obtain license or authorization before using.
  • Page 83 the user may try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna of the radio or television. • Increase the distance separating the equipment and the receiver. • Connect the equipment to an outlet on a different branch circuit than that of the receiver.
  • Page 84 • IEC 801.2 – Electromagnetic Compatibility for Industrial Process Measurement and Control Equipment, Part 2: Electrostatic Discharge Requirements. • IEC 801.3 – Electromagnetic Compatibility for Industrial Process Measurement and Control Equipment, Part 3: Radiated Electromagnetc Field Requirements. • IEC 801.4 - Electromagnetic Compatibility for Industrial Process Measurement and Control Equipment, Part 4: Electrical Fast Transients Requirements.
  • Page 85 5/2007 Printed in U.S.A.
