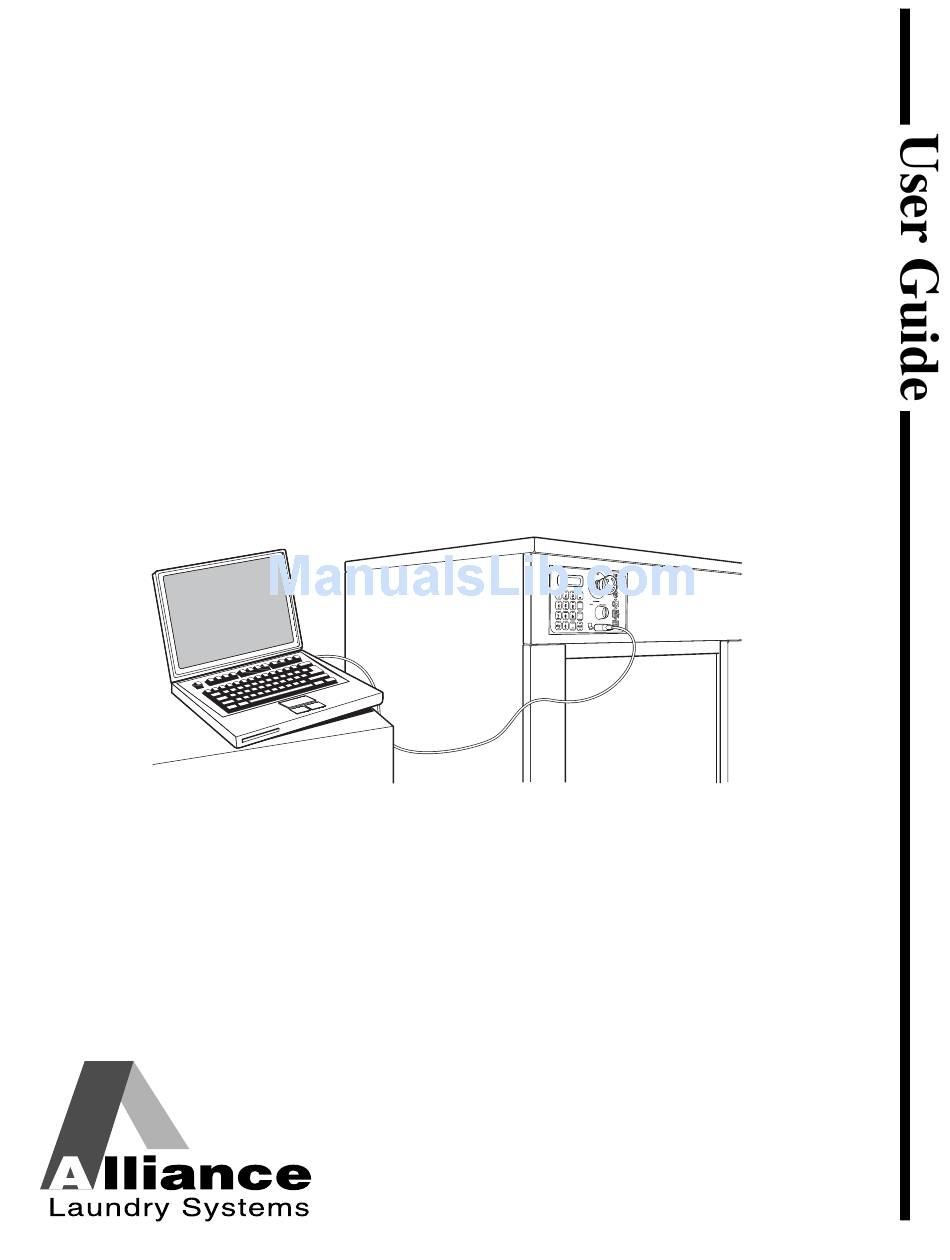

Alliance Planner
Programming
Software
COM223F
COM223F
Part No. 9-05-72R7
January 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alliance Planner Programming Software and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems Alliance Planner Programming Software

Summary of Contents for Alliance Laundry Systems Alliance Planner Programming Software

  • Page 1 Alliance Planner Programming Software COM223F COM223F Part No. 9-05-72R7 January 2013...

  • Page 2: Limited Warranty

    Alliance Laundry Systems also warrants that the © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...

  • Page 3: Table Of Contents

    Software ......... 6 Opening Alliance Planner Programming Software ..7 Loading Cycles .

  • Page 4: Introduction

    The cycle information is stored on the laptop and then downloaded into the washer-extractor. NOTE: The machines are factory programmed with basic cycles to make the units operational without programming at installation. COM220F COM220F © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...

  • Page 5: System Requirements

    System Requirements The Alliance Planner Programming Software has the following recommended system requirements: free serial port, keyboard, mouse or other pointing device, and a CD drive or DVD drive. Recommended System:  Pentium 1 GHz processor or higher  SVGA monitor supporting 1024 x 768 resolution or higher ...

  • Page 6: Installation Of The Alliance Planner Programming Software

    Navigate to the CD/DVD drive using Windows Explorer or My Computer. b. Double-click the Alliance Planner file on the CD. 3. Follow the on-screen instructions. 4. The Alliance Planner Programming Software will be installed on your laptop. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...

  • Page 7: Opening Alliance Planner Programming Software

    NOTE: The Alliance Planner Programming icon is also added to your desktop. The program can be started by double clicking the icon on your desktop. 2. The Alliance Planner will display. CFD990R 9-05-72 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 8: Loading Cycles

    Loading Cycles 3. Click Load. 4. Double click desired cycle set from the dialog box. Load CFD992R Cycle Sets CFD991R © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...

  • Page 9: Creating And Modifying Cycles

    57 cycles). 10. Click Add Cycle. Edit name will be highlighted. 11. Rename the cycle by typing over the default. Type Cycle Arrow Name Keys CFD994R 9-05-72 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 10: Setting Machine Configurations

    Level hysteresis Temperature hysteresis Type Heat Flowrate Units Cold inlet temperature Drain 1 Hot inlet temperature Drain 2 Spin retries Advance Inlet options Chem hold Temperature CFD996R © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...
  • Page 11 Machine Type Options OPL Machines with 4 Compartment Supply Dispenser. X18R1 X25R1 X35R1 X55R1 X75R1 Machine Type Options Vended Machines with 4 Compartment Supply Dispenser. X18R1C X30R1C X35R1C 9-05-72 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 12 Delays cycle progress until dispersing is confirmed. This option applies to OPL models only. d. Temperature: Displays or hides the temperature. This option applies to Vended models only. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...

  • Page 13: Saving Cycles

    The file will save to where the software is stored unless you choose a different location. Save CFD993R NOTE: The standard cycles from Alliance Laundry Systems and any cycles created by you can be accessed by clicking Load. 9-05-72...

  • Page 14: Setting Vend Prices (Coin Models)

    16. Click OK to save changes. IMPORTANT: Any changes to vend prices must be saved to your laptop before information can be transferred to a machine. Refer to Saving Cycles Section. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...

  • Page 15: Changing Com Port

    Click Setup to open the dialog box for changing the COM port. Setup CFD990R NOTE: If the laptop does not have a free serial port, a USB to Serial Adapter can be used. 9-05-72 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 16 Select the appropriate COM port in the drop-down menu or click the “auto detect” button to find the correct port. For the auto detect function to work, the machine must be connected to the PC with the serial cable. CFD999R CFD1000R © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...

  • Page 17: Connecting To Machine

    21. Flip programming switch in top right corner of box. Refer to the following illustration. 22. Connect cable from the laptop to machine. Program Switch Cable Connection COM212F COM212F 9-05-72 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 18 Click Write Prices to upload the vend prices (Coin models only) to the laundry machine. Vend prices must be set and saved. d. Click Read Prices to download the laundry machine vend prices (Coin models only) to the laptop. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...
  • Page 19 Connecting to Machine (cont.) Write Cycles Read Cycles Write Software Read Prices CFD1003R Write Prices CFD1002R NOTE: Write software is for technician’s use only. 9-05-72 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 20: Upgrading The Washer Extractor's Firmware

    1. Open the Alliance Planner software on your computer. 2. In the Alliance Planner software, click Talk. Refer to Figure 1. The Communication via front connector window appears. Talk CFD1006R Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...
  • Page 21 IMPORTANT: Do not open the firmware file yet. CFD1004R Figure 3 5. Disconnect power from the washer-extractor. 6. Turn the washer-extractor’s Run/Program switch to the Program position. 9-05-72 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 22 10. In the Alliance Planner software, click Open. Refer to Figure 4. The firmware file is sent from the computer to the washer-extractor. Open CFD1004R Figure 4 11. Turn the washer-extractor’s Run/Program switch to the Run position. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9-05-72...
