1.
READ these instructions.
2.
KEEP these instructions.
3.
HEED all warnings.
4.
FOLLOW all instructions.
5.
DO NOT use this apparatus near water.
6.
CLEAN ONLY with dry cloth.
7.
DO NOT block any ventilation openings. Install in accordance with
the manufacturer's instructions.
8.
Do not install near any heat sources such as radiators, heat regis-
ters, stoves, or other apparatus (including amplifiers) that produce
heat.
9.
DO NOT defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wider blade or the third prong are provided for your safe-
ty. If the provided plug does not fit into your outlet, consult an electri-
cian for replacement of the obsolete outlet.
This symbol indicates that there are important operating
and maintenance instructions in the literature
accompanying this unit.
WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.
The safety certifications do not apply when the operating voltage is changed from the factory setting.
2001, Shure Incorporated
27A8778 (BF)
! IMPORTANT SAFETY INSTRUCTIONS !
AuxPander
Auxiliary Expander
10. PROTECT the power cord from being walked on or pinched, particu-
larly at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12.
USE only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the appa-
ratus. When a cart is used, use caution when mov-
ing the cart/apparatus combination to avoid injury
from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for
long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is re-
quired when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been ex-
posed to rain or moisture, does not operate normally, or has been
dropped.
This symbol indicates that dangerous voltage constituting
a risk of electric shock is present within this unit.
User Guide
Printed in Italy
Advertisement
Table of Contents
Related Manuals for Shure AuxPander
Summary of Contents for Shure AuxPander
-

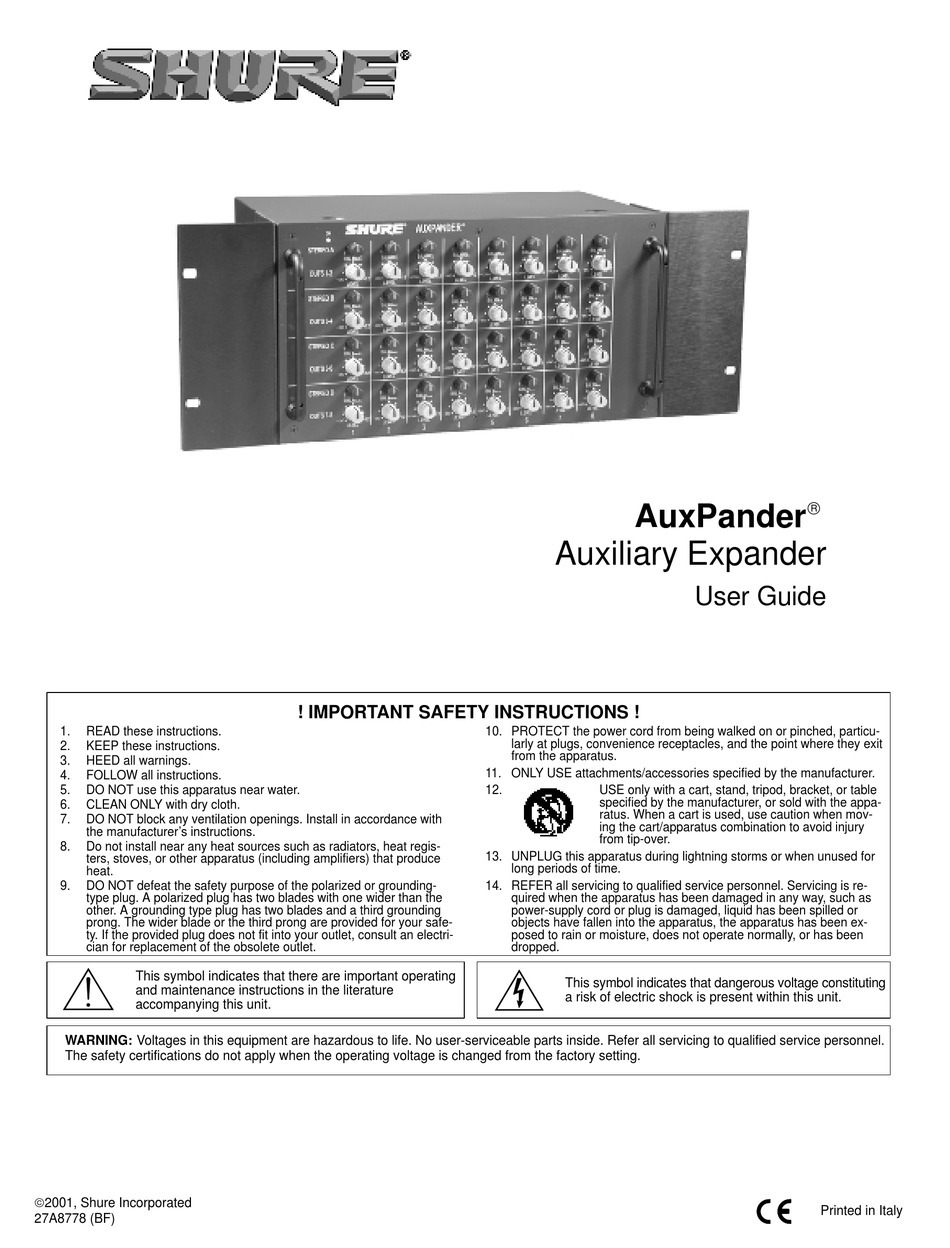

Page 1: User Guide
WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. The safety certifications do not apply when the operating voltage is changed from the factory setting. 2001, Shure Incorporated Printed in Italy... -
Page 2: General Description
Zone mixing and mix-minus matrixing (see Page 15) Additional Possibilities... This guide illustrates just a few of the many possible uses for the AuxPander. However, let your own applications determine what works best for you, or use your imagination to create new, personalized applications. For more ideas,... -
Page 3: Basic Setup
Basic Setup Figure 1 illustrates the basic AuxPander setup. The AuxPander connects to the mixing console insert points. Any processors that were connected to the mixing con- sole inserts are moved to the AuxPander INSERT jacks. The mixing console receives the same signal as in the original setup, including the processed signal from the mono and stereo processors. - Page 4 Figure 2 shows signal from the AuxPander Channel 1 input (IN/OUT 1) routed to each stereo output. To add signal from the Channel 2 input (IN/OUT 2) to the STEREO A outputs, use the LEVEL control in the same row (STEREO A / OUTS 1–2) in the second column (2) .
- Page 5 AuxPander IN/OUT jack First “click” Direct Inputs The DIRECT INPUT jacks on the back of the AuxPander feed signal directly to the outputs, bypassing the mix bus. (See Callout H in the next section.) Daisy Chain Connection for Mono Monitoring Use this method to add a signal to four mono outputs.
- Page 6 This method sends a single line input (such as a click track or mixing console submix) to the left channel of each PSM transmitter and a personalized mix (from the AuxPander stereo bus) to the right channel. Each performer uses the ...
-
Page 7: Front Panel Control Knobs
FRONT PANEL—CONTROL KNOBS FRONT PANEL CONTROLS FIGURE 3 BACK PANEL—INPUTS AND OUTPUTS REAR PANEL INPUT AND OUTPUT FIGURE 4... -
Page 8: Insert Jack
Tip Assign Switch This switch makes the AuxPander compatible with all mixing consoles. It reverses the function of the tip and ring con- tacts of the IN/OUT jack. NOTE: Change the position of this switch if, after connecting the AuxPander to the mixing console inserts, the signal does not return to the console. -
Page 9: Output Jacks
Direct inputs also allow you to expand the number of input channels while keeping the same number of mixed outputs. For example, connecting the outputs of one AuxPander to the direct inputs of another AuxPander creates a 16 X 8 matrix. -
Page 10: Appendix I: Applications
Headphones are often an essential part of the studio recording environment. They are used for foldback or cueing purposes and for performers to hear each other. The AuxPander’s eight outputs allow for a great degree of mix custo- mization in the studio. - Page 11 Hardwired PSM System Wireless PSM Systems...
-
Page 12: Multitrack Recording
MDMs. Do not fear, AuxPander is here. Portable, yet flexible, the AuxPander is the perfect front-end for MDMs. With its eight- output architecture, it easily connects to stereo, four-track, or eight-track MDMs. And since it connects to the prefader inserts of the mixing console, you can balance and fade a custom mix for an MDM without affecting the house mix and without the confusing network of reconnecting patch cables. - Page 13 Multitrack Monitoring Use the AuxPander IN/OUT jacks to insert it between the eight outputs of an MDM and the line inputs of another mix- ing console. You can mix the outputs to four individual stereo cue mixes without interrupting the signal flow to the mixing console.
- Page 14 Create these stereo auxiliary sends using the AuxPander. Performers can use the signal at the input of their devices, mix them to the stereo outputs of the AuxPander, and send them to the effect processor. Mixing Console...
-
Page 15: Installations
Often, the limited number of outputs on a mixing console does not meet the high demands of installed sound systems. The AuxPander adds eight channels, mixed into any combination of stereo or mono outputs, to cover all of the loca- tions (or zones) in your installation. - Page 16 Any device with a line-level input and output can be “inserted.” For example, a compressor might be inserted on a vocal microphone or a gate might be inserted on the snare drum channel. Likewise, the AuxPander is inserted on the inputs of a mixing console. First Things First:...
- Page 17 Some mixers use a knob instead of a sliding control. This fader does not affect the signal at the insert point. In fact, that is the reason the AuxPander connects to the insert point—so that you do not have to worry about the rest of the mixing console settings affecting the mix of the AuxPand- er outputs.
- Page 18 RING – RING – SLEEVE SLEEVE TIP + TIP + INSERT OUTPUT RETURN RING – RING – SLEEVE AuxPander IN/OUT JACK TIP + INSERT SEND RING – SLEEVE TIP + INSERT RETURN “Y” cable* RING – Single-Connector Insert Points SIGNAL PROCESSOR...
-
Page 19: Specifications
Shure Incorporated (“Shure”) hereby warrants that this product will be free from defects in materials and workmanship for a period of one year from the date of purchase. At its option Shure will repair or replace the defective product and promptly return it to you, or refund the purchase price. -
Page 20: Block Diagram
Stereo Bus Output A (1 and 2) Stereo Bus Output D (7 and 8) Level and Balance 8D SHURE Incorporated Web Address: http://www.shure.com 222 Hartrey Avenue, Evanston, IL 60202–3696, U.S.A. Phone: 847-866–2200 Fax: 847-866-2279 In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414 In Asia, Phone: 852-2893-4290 Fax: 852-2893-4055 Elsewhere, Phone: 847-866–2200 Fax: 847-866-2585...
