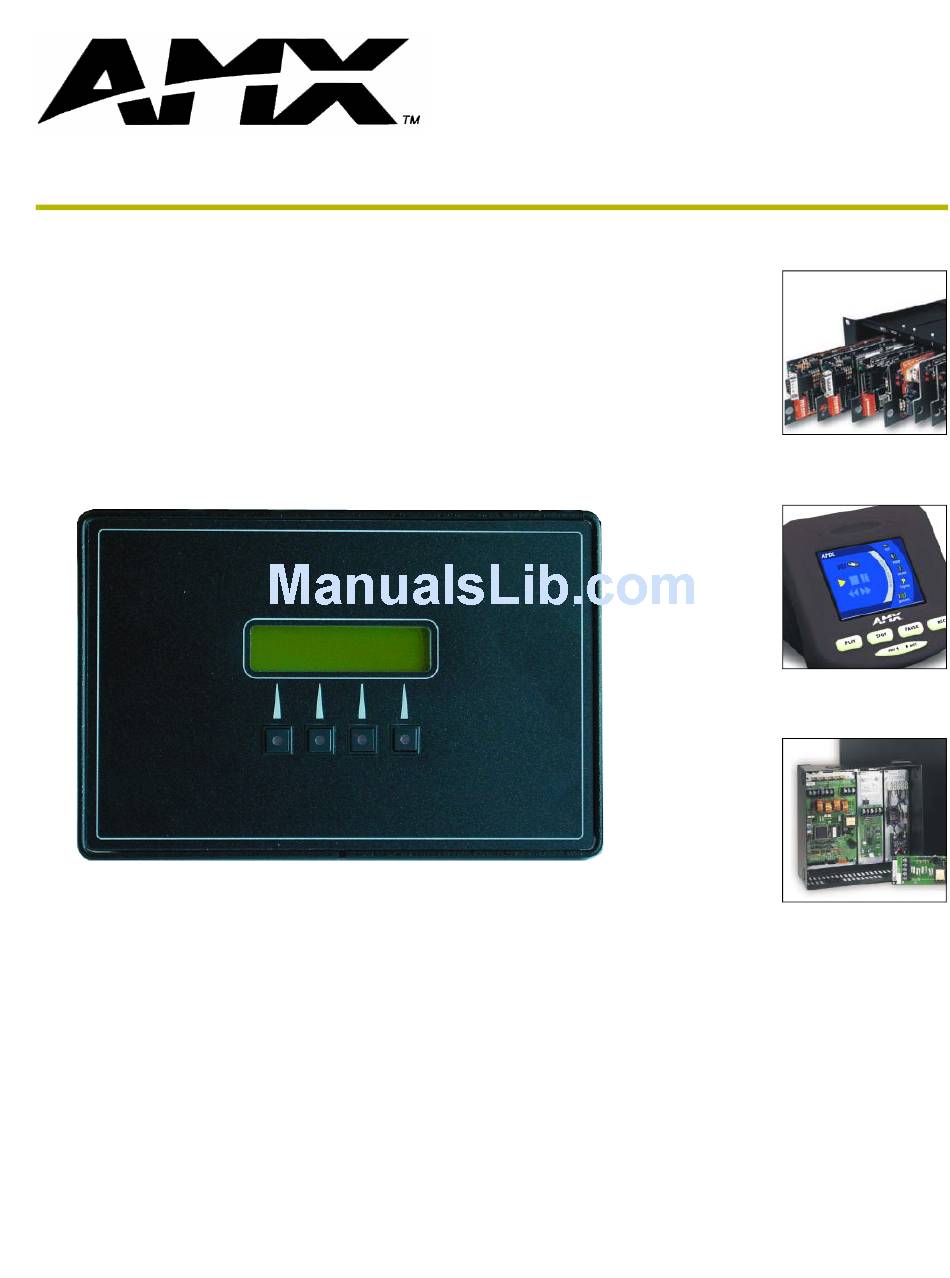

- Page 1 AXU-SPL4 Mini-LCD Panel P r o d u c t C a t e g o r y...
- Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction .......................1 Specifications ........................1 Installation and Wiring .....................3 AXU-SPL4 Internal Rear View ..................3 AXlink Device Number ...................... 3 Adjusting the Contrast Potentiometer................3 Wiring ..........................4 AXlink wiring..........................4 Setting Jumpers ........................4 Relay connections........................ - Page 4 Table of Contents AXU-SPL4 Mini-LCD Panel...
-
Page 5: Introduction
Introduction Introduction The AXU-SPL4 Mini-LCD Panel is a versatile product primarily designed for civic and commercial voting systems. However, the it can also accommodate a broad range of other commercial applications. The backlit LCD has a two line by 16-character menu that provides time, date, user name, menu titles, and control function information. - Page 6 Introduction AXU-SPL4 Mini-LCD Panel...
-
Page 7: Installation And Wiring
1 2 3 4 5 6 7 8 Value The AXU-SPL4 can be assigned as one of 255 devices in the Axcess system. Set the device number by referencing the table above. The device number is set by the total of all ON (up) switches. For example, the DIP switch shown above is set as device number 18 (2 + 16 = 18). -
Page 8: Wiring
After the device number is set, install the AXlink data/power bus wiring as shown in FIG. 2. Remove and reconnect the AXlink terminal after changing the device number to set the new device number in the AXU-SPL4 memory. AXU-SPL4 AXlink... -
Page 9: Input/Output Connections
2. Insert each wire into the appropriate opening on the connector according to the wiring diagrams and connector types described in this section. Do not tighten the screws excessively; doing so may strip the threads and damage the connector. AXU-SPL4 Mini-LCD Panel... -
Page 10: Mounting Options
Installation and Wiring Mounting Options The AXU-SPL4 can be mounted onto any flat surface, a standard three-gang wall box, or into a BB-SPL4 back box, as described in the following subsections. BB-SPL4 Back Box (Optional) FIG. 6 represents a drawing and dimensions of the BB-SPL4 back box. The BB-SPL4 is available as an optional accessory. -
Page 11: Three-Gang Wall Box
6. Insert the cover plate into the magnetic bezel. Three-gang wall box To install the AXU-SPL4 into a three-gang box: 1. Mount the three-gang wall box. Minimum dimensions (HWD) are 5.38" x 2.88" x 2.00" (13.67 cm x 7.32 cm x 5.08 cm). - Page 12 Installation and Wiring FIG. 7 demonstrates how to install the AXU-SPL4 into sheetrock using "OLD-WORK" expansion clips. The expansion clips provide permanent installation allowing for easy removal for servicing. FIG. 7 Installing the AXU-SPL4 into sheetrock using "OLD-WORK" expansion clips...
- Page 13 FIG. 8 demonstrates how to permanently install the back box with the face frame into a solid surface, such as a podium or desk. FIG. 8 Installing the AXU-SPL4 face frame and back box permanently into a hard surface AXU-SPL4 Mini-LCD Panel...
- Page 14 FIG. 9 demonstrates how to install the AXU-SPL4 face frame and back box into a hard surface (podium, desk) as a single assembly. FIG. 9 Installing the AXU-SPL4 face frame and back box into a hard surface as a single assembly AXU-SPL4 Mini-LCD Panel...
-
Page 15: Connecting To The Control System
Installation and Wiring Connecting to the Control System Once the AXU-SPL4 unit is programmed and the mount is prepared, it is ready for final installation. Perform the following after pre-installation and wiring is complete: 1. Verify control wiring of I/O and relay ports are installed correctly. - Page 16 Installation and Wiring AXU-SPL4 Mini-LCD Panel...
-
Page 17: Programming
Programming Programming Channels The following table show the pushbuttons, control channels and their functions. AXU-SPL4 Pushbuttons, Control Channels and Functions Pushbuttons (left to right) Control Channels Function 1 = Pushbutton 1 253 = Input/Output Port 1 While channel is ON, relay 1 (energized), everything else is OFF. -
Page 18: Send_Commands
Programming Send_Commands The following Send_Commands are listed to program the AXU-SPL4: AXU-SPL4 Send_Commands BEEP Syntax: Generates a beep of the 'BEEP<time>' specified time duration. By Variable: sending another beep com- time = 0 - 9 mand before the previous one... - Page 19 Programming AXU-SPL4 Mini-LCD Panel...
- Page 20 AMX reserves the right to alter specifications without notice at any time. brussels • dallas • los angeles • mexico city • philadelphia • shanghai • singapore • tampa • toronto • york 3000 research drive, richardson, TX 75082 USA • 469.624.8000 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993...
