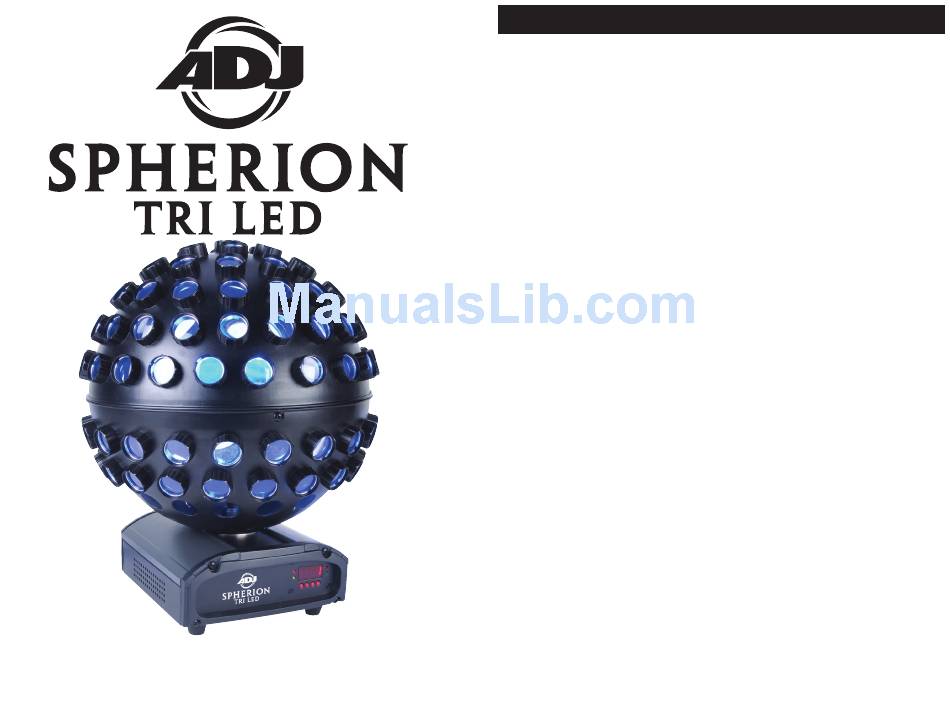

User Instructions
Rev. 8/11

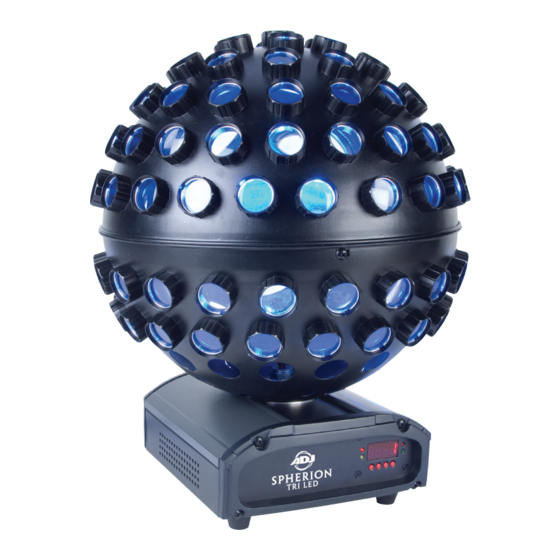

Spherion Tri LED
Unpacking:
Thank you for purchasing the Spherion Tri LED by Amer-
ican DJ
. Every Spherion Tri LED has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without first contact-
ing customer support.
Introduction:
The Spherion Tri LED is part of American DJ's continu-
ing pursuit for creating and upgrading affordable intelligent fixtures The
Spherion Tri LED is an DMX intelligent centerpiece. This fixture can be
used as a stand alone piece or connected in a Master/Slave configura-
tion. The unit can sound active, run in a auto mode or be controlled via
DMX controller. When using DMX control the fixture has a 1 Channel
mode and a 3 Channel mode.
Customer Support:
American DJ
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2941
E-mail:
support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ
.
®
American DJ
- www.americandj.com - Spherion Tri LED Instruction Manual Page 2
©
®
General Information
provides a toll free customer sup-
®
