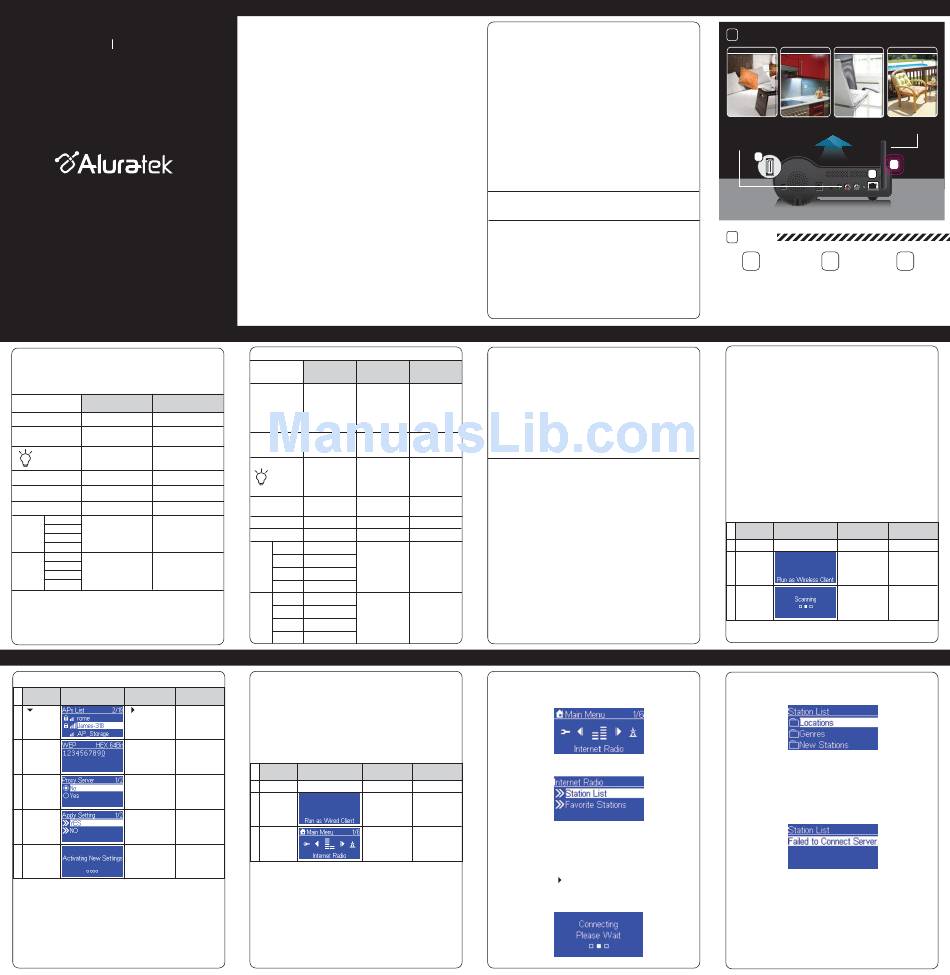

Aluratek AIRMM01F Quick Start Manual

Internet Radio Alarm Clock
<with Built-in WiFi>
Quick Start Guide AIRMM01F
aluratek.com
qsg Q10086 Copyright © 2009 Aluratek, Inc. All Rights Reserved.

Keypad Functions

The following tables shows the keypad function definition at various
situations when you operate AIRMM01F.
(A) When you are browsing the menu list, or when the device is idle
Screen with Menu List Clock Screen
(Standby Screen)
SNOOZE No function No function
1. Stop music
Enter the alarm menu
STOP
2. Go back to main menu
Short press=Light ON/OFF Short press=Light ON/OFF
Long press=standby mode Long press=standby mode
OK Select the function Enter main menu
UP Enter main menu
Move to previous item
DOWN
Move to next item Enter main menu
Int. Radio
FM Radio
Back to upper layer of lists Enter main menu
LEFT
Media Serv.
MP3 Player
Int. Radio
FM Radio
RIGHT Enter next layer of lists Enter main menu
Media Serv.
MP3 Player
First time using device without an Ethernet cable plugged in (cont.):
Instructions Screenshot Go to next Notes
screen
" " button
4. " " button or Select the desired
"OK" button AP to connect
5. Numeric key "OK" button Type in the
pads encryption key
if the AP is
encrypted.
6. "OK" button Set a proxy
server if any.
7. "OK" button Confirm to the
settings.
8. Apply new settings.

Introduction

Thank you for choosing Aluratek's® Internet Radio Alarm Clock with
Built-in WiFi. Once I'm connected to the internet you will have access
to 11,000+ live streaming internet radio stations from around the globe
at your fingertips.
This includes any music genre you can think of including talk, sports
and local news from over 150 countries.
That's pretty much free music for life playing from any room in your
home or office.
Just use your exisitng WiFi and internet connection. If you have
internet you are all set!
In addition to making sure only quality materials are used for manu-
facturing, Aluratek® is also dedicated to provide the best customer
satisfaction and support.
The goal of Aluratek is to embody "Simple Elegance" in every
product it designs, manufactures and sells.
The product focus of Aluratek is to bring simple yet elegant connectiv-
ity solutions to the consumers to enhance their consumer electronics,
communications and computing experience. Each product is carefully
designed with the consumer in mind. Each product is solution-driven
to address the need of the consumers and deliberately planned to
provide the ultimate user experience.
Read this guide thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit and / or any of
the devices it connects to.
(B) When you are playing music
Screen with Clock screen & Clock Screen &
Music Playing Alarm Music
name of
Station / Song
Enable or disable Enable or disable STOP the music.
sleep function. sleep function. Go back to clock
Start the timer for Start the timer for screen & restart the
SNOOZE 15/30/45/60 min. 15/30/45/60 min. alarm in 10 min.
(stop current mu- (stop current mu-
sic source after sic source after
time is up) time is up)
1. Stop music 1. Stop music 1. STOP alarm
STOP 2. Go back to 2. Go back to 2. Go back to
main menu main menu clock screen
Short press = Short press = Short press =
Light ON / OFF Light ON /OFF
Light ON / OFF
Long press = Long press = Long press =
Standby mode Standby mode Standby mode
Show the playback Show the playback
Go to option menu
OK
screen screen
UP Volume up Volume up Volume up
DOWN
Volume down Volume down Volume down
Int. Radio Go back to radio list
FM Radio Go back to radio list
Show the playback Show the playback
LEFT
screen screen
Media Serv. Go back to song list
MP3 Player
Go back to song list
Int. Radio Go back to radio list
FM Radio Go back to radio list
Show the playback Show the playback
RIGHT
screen screen
Media Serv. Go back to song list
MP3 Player Go back to song list

Configure as a Wired Client

If there is no 802.11b/g wireless network, AIRMM01F can also
connect to the wired network through an Ethernet cable.
For this case, prior to power on the device, you have to plug in
the Ethernet cable into the LAN (RJ45) connector on the back of
the unit. After you power on the device, it will automatically go
into the wired client mode when it detects a link status through
the Ethernet connection.
First time using device with an Ethernet cable plugged in:
Instructions Screenshot Go to next Notes
screen
1. POWER ON
2. Device is running
as a Wireless
Client.
3. The device is in
wired client mode
now. It already
connected to your
network.
Features, Requirements & Package Contents
Features:
• Choose between more than 11,000+ radio stations worldwide
via built-in vTuner with no monthly cost
• Search music by genre, i.e. classic, pop, talk, news, sports etc.
and geographically over 150 countries
• Compatible with universal Plug-n-Play audio servers such as:
Microsoft Media Player 11 (WMP11), Microsoft Media Connect
and MusicMatch Jukebox
• Wireless access WIFI 802.11 b/g, Ethernet and USB 2.0
(host only) connectivity
• Built-in FM radio tuner for local FM broadcast service
• Access music files stored on a USB 2.0 flash drive, MP3 player
or Hard drive through the unit's USB port
• Alarm clock function with 2 programmable alarms wakes you up
to internet radio, FM radio, digital music, or choice of several
alarm tones
• Integrated amplifier: 2x2W stereo
• External plug for headsets (3.5mm)
• 2 RCA plugs (Stereo Lineout) for external speakers
• No PC is required
• 1 Year limited warranty
Requirements:
• Wired / wireless router
• Internet connection
Package Contents:
Your order has been carefully packaged and inspected. The
following should be included in your package. Please inspect
the contents of the package to ensure that you have received
all items and that nothing has been damaged. If you discover a
problem, please contact us immediately for assistance.
• WiFi Internet Radio • Instructional Manual / CD
• Remote Control • Quick Start Guide
• FM Antenna • Warranty / Registration Card
• Power Adaptor
Hardware & Software Installation

Hardware Installation:

Please fasten the wireless antenna and the FM antenna to
appropriate antenna connectors at the rear panel of the device. If
you prefer to use Ethernet for wired network connection, please
plug in your Ethernet cable to the LAN (RJ45) port.
Please plug in the DC power adapter to the outlet and the DC
power jack carefully.
To operate the device, you can use both the supplied remote
control and also the keypad buttons.

Software Installation:

AIRMM01F can work as a stand-alone device or as a media
streamer of a media server. As a stand-alone unit, you can use it
to listen to Internet radio, FM Radio and external USB
storage/MP3 players. No computer is needed.
For digital music files that are stored in your computer, you need
to install streaming server software in the computer so that
AIRMM01F can request the streaming service from that server.
AIRMM01F is compliant to UPnP protocol. It works with media
server software such as Microsoft Windows Media Player 11
(WMP11), Microsoft Media Connect 2.0 (WMC2.0), and Music-
match Jukebox. Once you have the software installed on the
computer, you can stream your music collection to AIREC01F.
Please find Appendix A and B in the manual for instructions on
how to connect AIREC01F to your computer via WMP11, and
WMC2.0.

Listen to Internet Radio

To listen to music or broadcast programs from Internet radio stations,
please select the "Internet Radio" function from the main menu and
then press the OK button to enter the Internet Radio function.
The first screen of Internet Radio function shows 2 items for you to select:
"Station List": Retrieve the Internet radio station lists from the
Internet portal server.
"Favorite Stations": Retrieve the favorite station lists that stored in
the device.
Press "OK" button or " " button to retrieve the Station List. The device
will try to connect to the Internet radio server to retrieve the Internet
radio stations for further playback, you will see the following screen:

Product Application

1
PLACE IN ANY ROOM OF YOUR HOME
Bedroom Kitchen Home Office Backyard / Patio
Integrate the AIRMM01F Built-in WiFi
into your home theater
system via the RCA jacks
C
A
B
2
LISTEN
A B C
OR OR
Stream Internet Radio Connect your local Plug in any USB Drive
from your WiFi / wireless CAT5 Ethernet cable to and listen to your music
802.11 B / G router. stream Internet Radio files. (USB port at front)

Configure as a Wireless Client

The factory default mode is the wireless client code. According to
the availability of an Ethernet cable, the device will automatically
select a suitable client mode to operate. User can also manually
change the setting of network configuration through the Setup
menu "Setup/Advanced Setup/Configure Network".
AIRMM01F will connect wirelessly if it detects an 802.11b/g
wireless network. With no Ethernet cable attached, you just need
to power on the device and AIRMM01F will automatically enter
the wireless client mode.
To connect AIRMM01F to the wireless network for the first time,
you will need to set the encryption key for a secured network.
Once the setting is finished, the device will remember the related
settings and try to connect to the designated AP when it is power
on next time. However, if there is something trouble in connecting
to the designated AP, the device will show the AP list screen for
you to configure again
First time using device without an Ethernet cable plugged in:
Instructions Screenshot Go to next Notes
screen
1. POWER ON
2. Device is running
as a Wireless
Client.
3. Scanning for
available APs.
It takes few seconds to get the latest list from Internet. And you
will see the next screen.
This means the AIRMM01F is connected to the Internet server
and received the information from the server.
If you see the following screen instead, it means that the device
has encountered problem in retrieving the list from the internet
server, please try again.
