Performance Parameter; Power Supply Specifications; Display Characteristics; Physical Dimensions - Tview T700SVD Instruction Manual

2nd video input (yellow)
Audio input (black)
MUTE
MENU
V1/V2

Performance parameter

Type:TFT LCD
Display size: 7"
Display format: 16:9
Power: About 7W
Power supply: DC 12V
System: NTSC/PAL
Operation temperature:+5 ~+40
Pixel:480(W) R/G/B 234(H)=336960
Overall dimension:385(W) 148(L) 23(H)mm
Weight:about 780g
2 AV inputs
TFT LCD TFT LCD
TURN
REMOTE
WINDOW
POWER
SWITCH
VIDEO
VIDEO
SELECT
SELECT
MENU
MODE
SELECT
MENU
MODE
SELECT

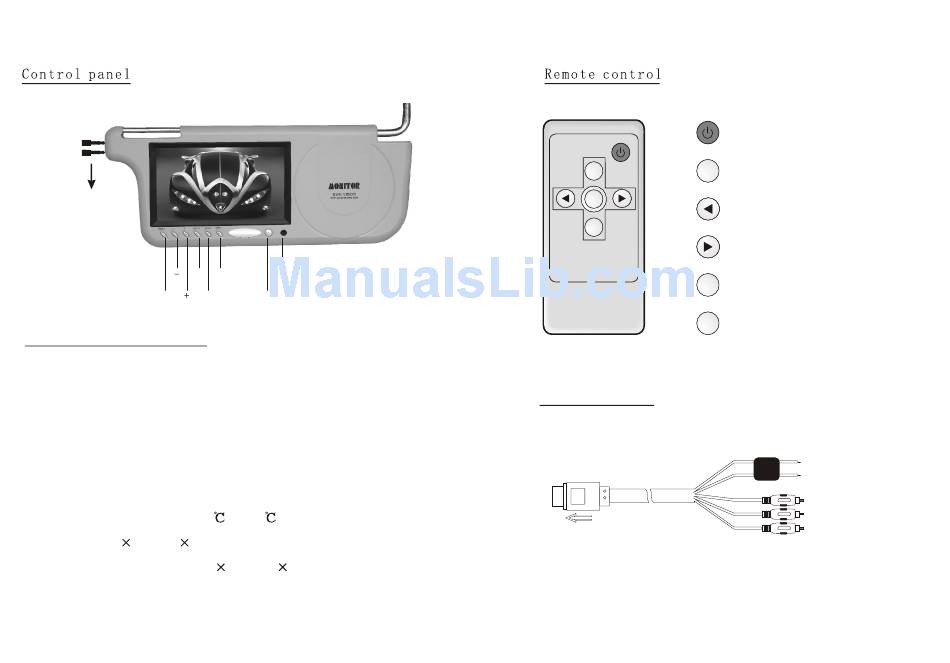

Method of wiring
Inset to LCD S terminal
Power switch
V1/V2
Decrease
Increase
Menu
Turn image
Fuse 2A
Red to battery +12V
Black to grounding
1st video input (yellow)
Left audio input (white)
Right audio input(red)
