Summary of Contents for ADDER AdderView RDX Rack Drawer

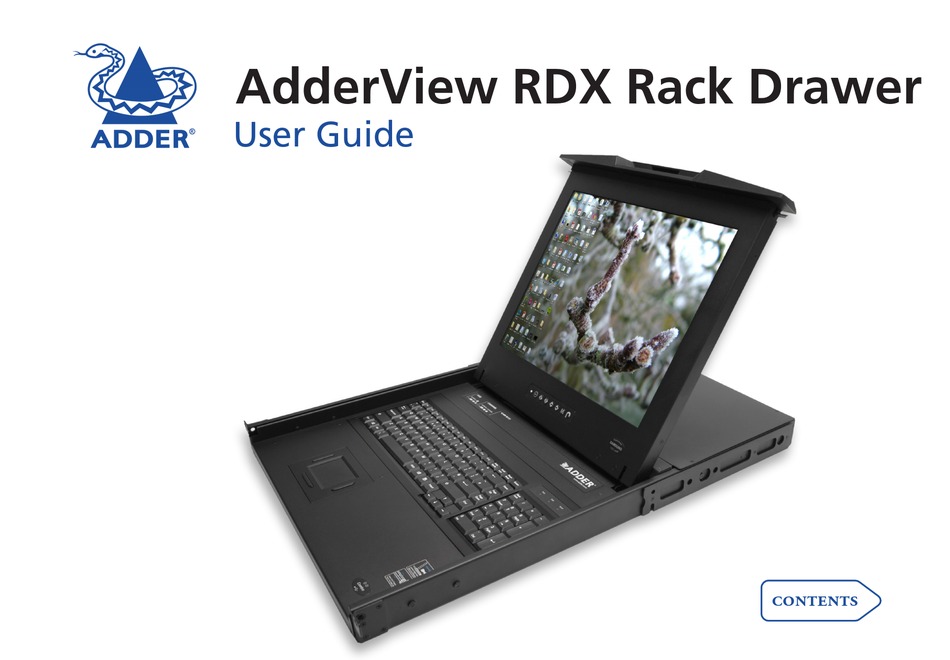

- Page 1 AdderView RDX Rack Drawer User Guide ...
-
Page 2: Table Of Contents
Contents Welcome Operation Introduction .................2 Opening and closing the rack drawer ........8 Standard items ................3 Operating the rack drawer ............9 Additional items ................3 The screen controls ..............9 Using the OSD menu ..............9 Installation Selecting server channels .............10 Suitable mounting locations ............4 Further information Mounting the rack drawer ............4 Connecting the rack drawer ............5... -
Page 3: Introduction
Introduction Thank you for choosing the AdderView RDX Rack Drawer which combines Certain sections of this manual refer to other Adder user guides for details about screen, keyboard, mouse and sixteen port KVM switching while occupying only the KVM module fitted within your rack drawer. These other guides are stored a single rack slot. -
Page 4: Standard Items
Standard items Additional items AdderView RDX Rack Drawer assembly Computer Access Modules One required per connected computer. There are four different formats, depending on the required computer connections: PS/2-style Connectors: Analog video, PS/2-style keyboard and PS/2-style mouse. Part number: CATX-PS2 Connectors: Analog video and USB keyboard/mouse. -
Page 5: Installation
Installation Suitable mounting locations • It is very important to locate the AdderView RDX Rack Drawer in a suitable 3 Insert the rack drawer assembly into the mounting brackets. environment. • The surface for placing and fixing the rack drawer should be stable and level, or mounted into a suitable cabinet. -
Page 6: Connecting The Rack Drawer
For more information about connecting CAMs, please refer to the 3 Connect the other end of the cable as follows: appropriate Adder user guide as appropriate to the rack drawer model being used: • If the EXT port label shows connect the link cable to a network •... -
Page 7: Power Connection
Power connection The rack drawer is provided with a power adapter capable of supplying the display monitor, keyboard and in-built KVM module. IMPORTANT: You must only use the manufacturer approved power adapter with the rack drawer. IMPORTANT: Due to the length of the power cable, if the rack drawer is mounted high in the rack it may not be possible to place the power adapter at floor level. -
Page 8: Initial Configuration
The precise details for configuration of the rack drawer will depend on the model being used. For more information, please refer to the Configuration section of the appropriate Adder user guide as appropriate to the rack drawer model being used: • RDxx16yy --->... -
Page 9: Operation
Operation Opening and closing the rack drawer The compact rack drawer is easy to open and close when required. To open the rack drawer To close the rack drawer 1 Press the button on the carry handle at the front of the rack drawer unit and 1 Fold down the screen and locate the black arrow release button on each gently pull the carry handle towards you: side of the drawer slider:... -
Page 10: Operating The Rack Drawer
Operating the rack drawer The screen controls Using the OSD menu The screen controls are located at the base of the screen: Press the button to display the OSD menu: The various sections within the menu are as follows: Image Controls for brightness, contrast, colour temp, red, green and blue. -
Page 11: Selecting Server Channels
• On screen menu, or • Keyboard hotkeys. For more information, please refer to the Operation section of the appropriate Adder user guide as appropriate to the rack drawer model being used: • RDxx16yy ---> use AdderView CATx 1000 user guide, •... -
Page 12: Further Information
• In rare cases interference may appear on the screen. This may be caused by • Adder Technology website – www.adder.com signal rate of the video card and is considered normal. The image quality can Check the Support section of our website for the latest solutions and driver be improved by adjusting the phase or pixel rate. -
Page 13: Warranty
If the product should fail to operate correctly in normal use during the a moist cloth. warranty period, Adder will replace or repair it free of charge. No liability can be • The unit is heavy. Therefore when installing, place the rack drawer on a accepted for damage due to misuse or circumstances outside Adder’s control. -
Page 14: Radio Frequency Energy
Radio frequency energy All interface cables used with this equipment must be shielded in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances. FCC compliance statement (United States) European EMC directive 89/336/EEC This equipment generates, uses and can radiate radio frequency energy This equipment has been tested and found to comply with the limits for a class... - Page 15 © 2011 Adder Technology Limited All trademarks are acknowledged. Release 1.0d April 2011 Part No. MAN-RACKDRAWER-ADDER Adder Technology Limited, Adder Corporation, Adder Asia Pacific 6 New Industrial Road, Technology House, 350R Merrimac Street, Hoe Huat Industrial Building Newburyport, Trafalgar Way, Bar Hill,...
