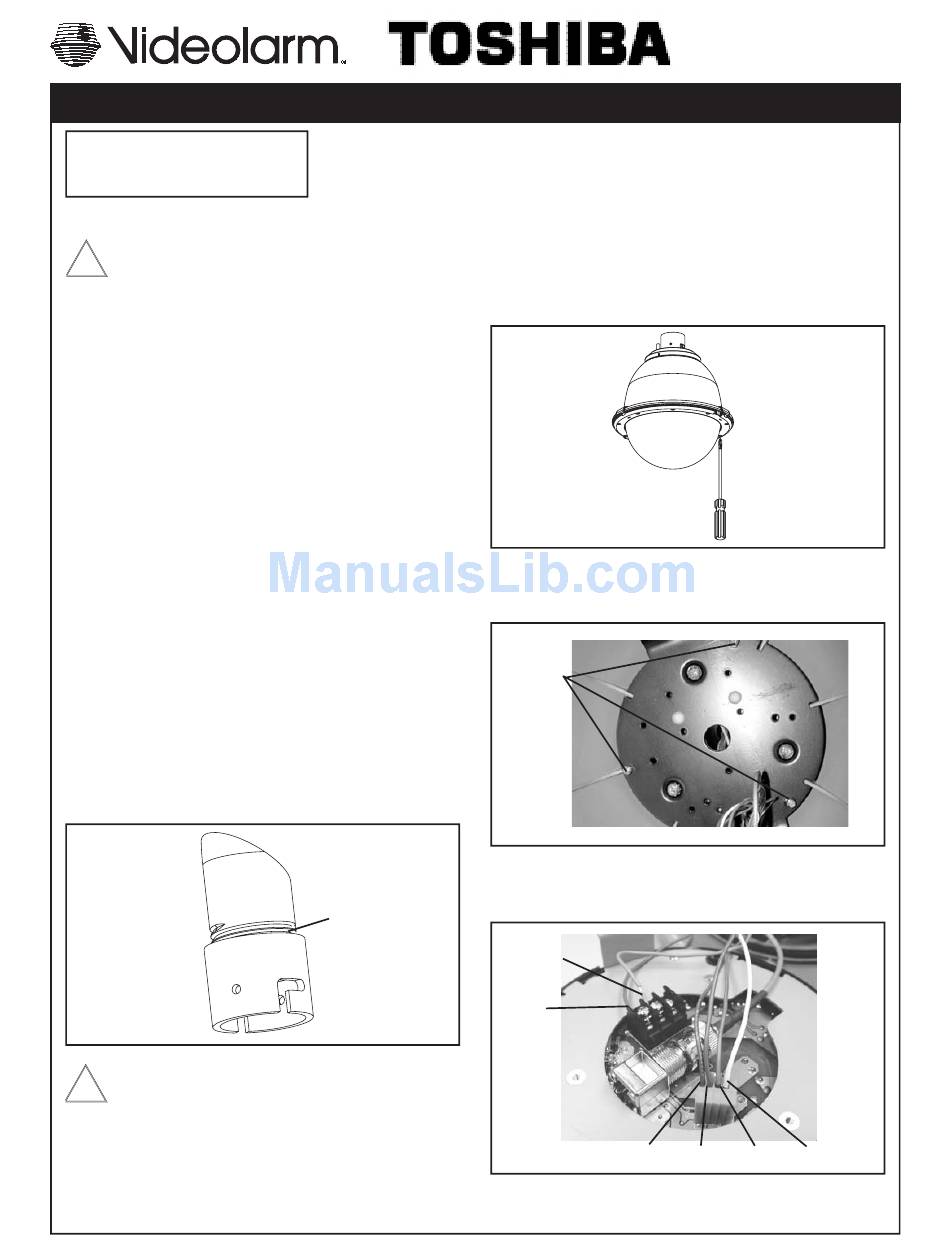

Moog Videolarm JK-PHO Product Instructions

Manufactured by:
Before attempting to connect or operate this product, please read these instructions completely.
IN-4500
MODELS: Outdoor Dome Housings
JK-PHO, JK-PHI
ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY):
!
Power 24VAC, Class 2 Only
26 watts at 24 VAC (accessories)
Heater: 25 watts
Blower: .84 watts
Input Connectors (outdoor units):
BNC
(2) screw-down connectors
GENERAL INSTRUCTIONS:
Tools Required: .100" Flat Head Screwdriver
Phillips Head Screwdriver
1. Carefully remove the housing from the packaging material.
Check to be sure all parts are present.
2. This unit includes a 1 1/2" NPT housing coupling that can be
used with a standard 1 1/2" NPT pipe. The unit can be
used with other brackets designed with 1 1/2" male pipe
threads, such as the Toshiba's JK-WM and JK-PJM wall
mount brackets.
3. Attach the housing coupling to the bracket or pendant pipe
(Figure 1).
NOTE: Pipe threads should be clean and rust free. Use a
sealer (such as Tefl on™ tape or silicone sealer) on the
threads.
Figure 1
Be sure the bracket is properly and securely mounted
!
to a supporting structure capable of rigidly holding the
weight of the entire unit.
for
INSTALLING QUICK RELEASE BRACKET AND PAN/TILT
CAMERA ASSEMBLY
1. Open the housing by loosening the (3) captive screws located
on the housing ring next to the lower clear dome. Be careful
not to back these all the way out. Twist the dome slightly in a
counterclockwise motion to remove (Figure 2).
Figure 2
2. Install the pan/tilt unit quick- release bracket using the three
6-32 Phillips head screws provided (Figure 3). Screw down
only about halfway.
Mounting
screws
Figure 2
3. Make wiring connects from the housing to the Pan/Tilt base
(Figure 3). Use the Color Code Chart B on the next page for
correct connections.
Add thread
sealing tape
Figure 3
PRODUCT INSTRUCTIONS
NOTE: These installations should be completed before
mounting the housing.
Orange
Red
Blue Violet
81-IN4500
6/17/02
Loosen screws only,
do not remove
Remove dome by
twisting coun ter -
clock wise
Gray
White
