TELETYPE GPS PDA POWERED VENT CLIP
The Vent Clip provides a mechanism for easily mounting and viewing the PDA in your vehicle.

ATTACH THE VENT CLIP TO THE AIR CONDITIONER VENT

1. Manually spread the hooks to widest possible position.
2. Insert the clip onto the grill of the air conditioning vent. You will
need to rotate the entire vent clip slightly to obtain the best
position to insert and attach to the vent. See Fig. 1.
3. Adjust the disc closest to the vent to properly secure the clip
to the vent. See Fig. 2.

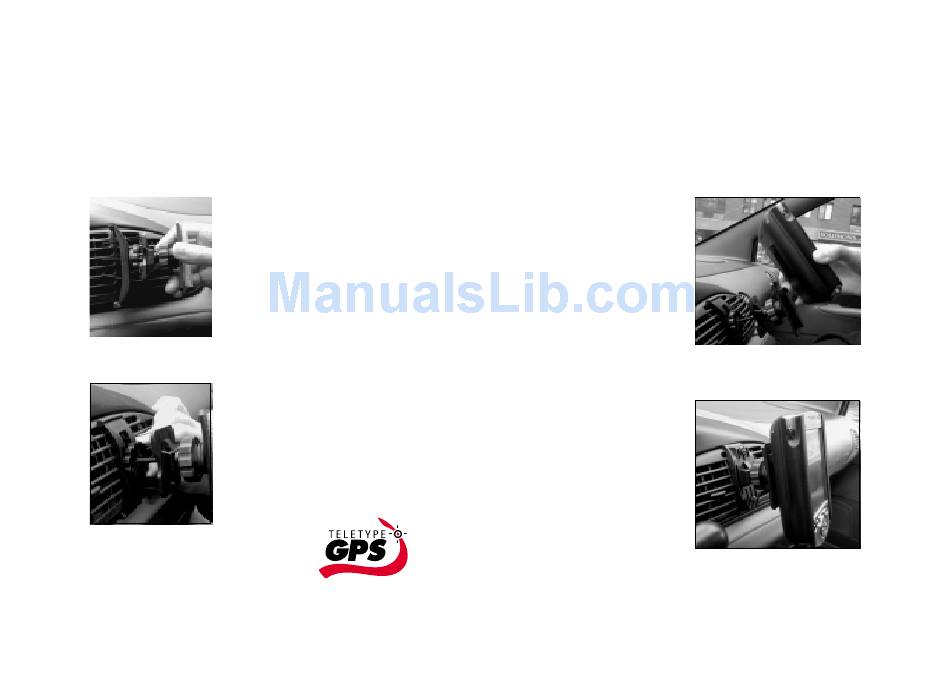

Fig.1 Rotate and
4. Peel off the adhesive from the smaller triangle (the larger
insert to attach.
triangle has already been attached to the clip) and attach the
triangle to your PDA (in the case of the iPAQ, attach to the
Compaq expansion jacket). Slide the PDA onto the vent clip.
See Fig. 3 .
5. Adjust the viewing angle for the PDA by rotating the disc
closest to the PDA.
6. Optional - attach 12v power source to the PDA.
Fig.2 Adjust disc to
tighten.
Product #2091/#2093
TeleType Co., Inc.
20 Park Plaza Park Plaza
Boston, MA 02116
42.351648 N 71.06832 W
www.teletype.com
Tel: 617-542-6220
Fig.3 Slide in, adjust
viewing angle.
Fig.4 Installation finished.
