Wintal AV Over Cat5 Instruction Manual

AV Over Cat5 Distribution System with IR Instruction Manual
The System allow the extension of video, stereo audio and infrared control signals using
Cat5 UTP (category 5, unshielded twisted pair) cable.
The System uses a unique method of transparent data transfer, which allows a device,
such as DVD player, set-top box to be situated up to 1000ft (300m) away from the
controller TV or point of control.
Fully compliant with standard 38 kHz modulated IR or higher, the IR extender link will
provide a transparent path for all protocols and data transfers. The extender uses one
pair for IR data transmission and the other 3 pairs for composite video and stereo audio
transmission.
The Distribution Hub has one set of RCA inputs and one set of RCA loop-thru connectors
to go to the next Distribution Hub if installed. The System allows any audio/video source
to distribute audio and video to 4-zone distant locations with excellent picture quality.
The AV Cat5 Receiver supports one monitor with composite video, stereo audio.

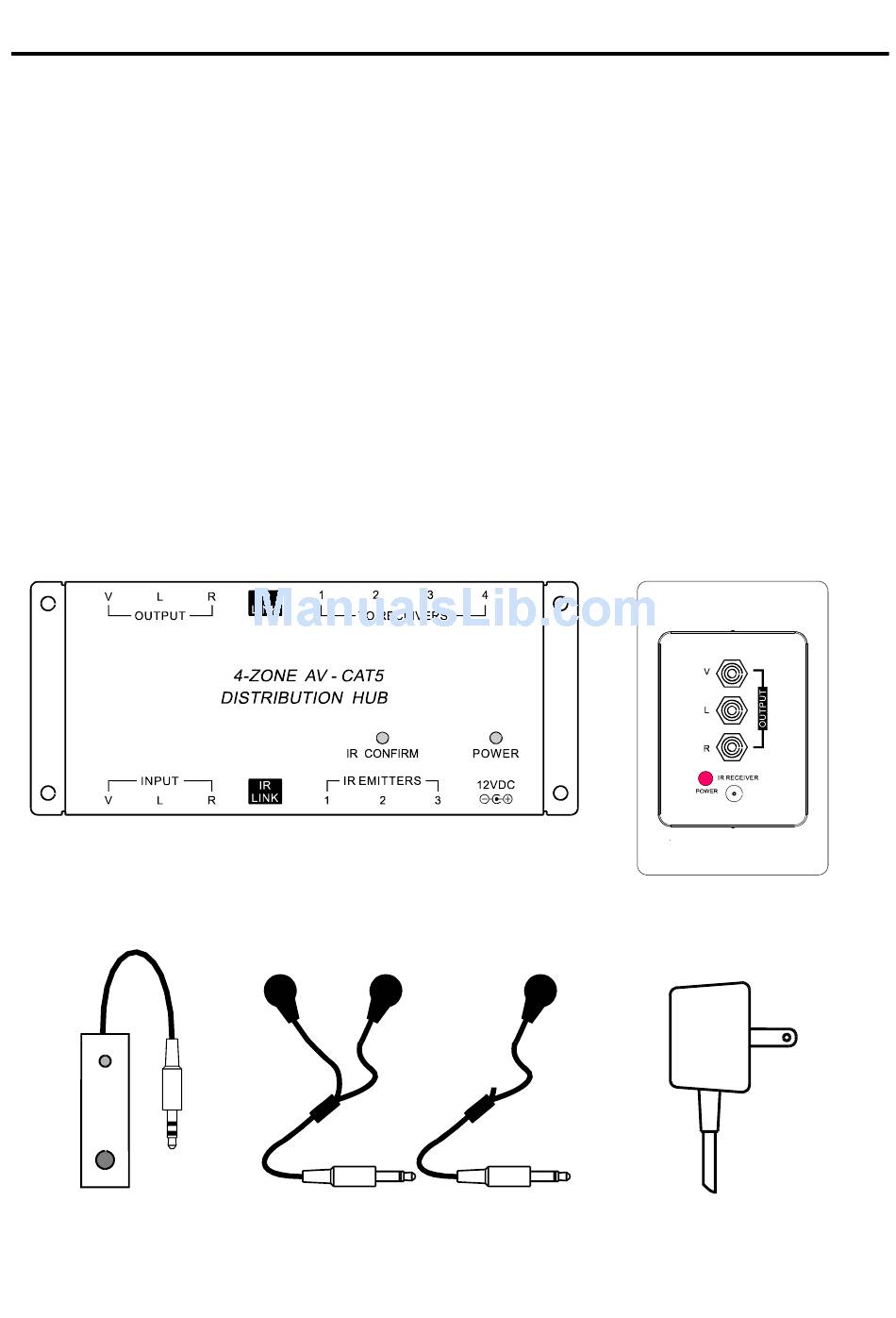

Related Components:
Distribution Hub AV Cat5 Receiver
IR Receiver IR Emitter Switching Power
(12VDC, 1.2A or above)
