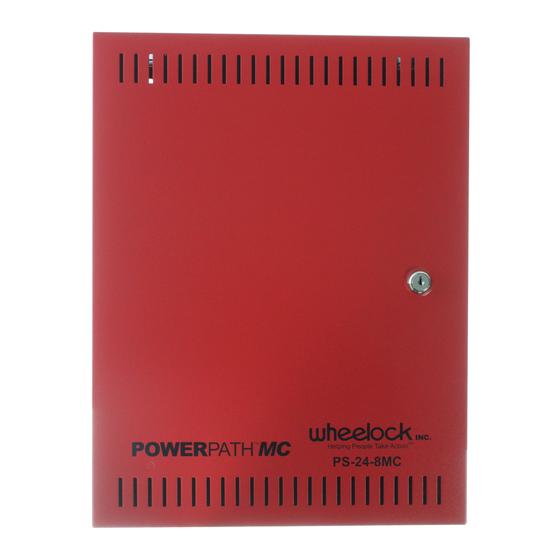

POWERPATH
PS-24-8MC
POWER BOOSTER

POWER SUPPLY

Installation Instructions
273 Branchport Avenue, Long Branch, NJ 07740-6899 Ph: (800) 631-2148 Fax: (732) 222-8707
Web Site: www.cooperwheelock.com e-mail: info@cooperwheelock.com
A84661-001A
Copyright 2007 Cooper Wheelock, Inc. All rights reserved
Thank you for using our products.
Use this product according to this instruction manual.
Please keep this instruction manual for future reference.
