Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL: PS-33A
GENERAL:
The TelStrobe is a self contained, plug-in strobe signal that emits a high intensity flashing light when the telephone rings. A minimum
one second ring time is required for the ringing voltage to produce one to two strobe flashes per second.
In the event of a malfunction with this product, repairs will be performed by Wheelock Inc., or its authorized agents in accordance
with Wheelock's published Terms and Conditions of Sale.
READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
MOUNTING INFORMATION:
The TelStrobe is designed for mounting to interior structures such as walls, partitions or posts. Locate the TelStrobe as desired for
visibility and connect it as shown in the sketch below. Note that the special mounting screws supplied with each unit must be spaced
as indicated. The TelStrobe hangs securely on the screw heads by means of key holes on the back of the unit. Connect a standard
modular telephone line cord (not supplied) from the jack on the strobe to the ring voltage supply. Refer to figure below for proper
installation. The TelStrobe is now ready to operate. Test the installation by having someone ring your number to make sure that the
strobe flashes properly.
SPECIFICATIONS:
MODULAR PLUG
2 PAIR MODULAR LINE CORD
BLACK
RED
GREEN
YELLOW

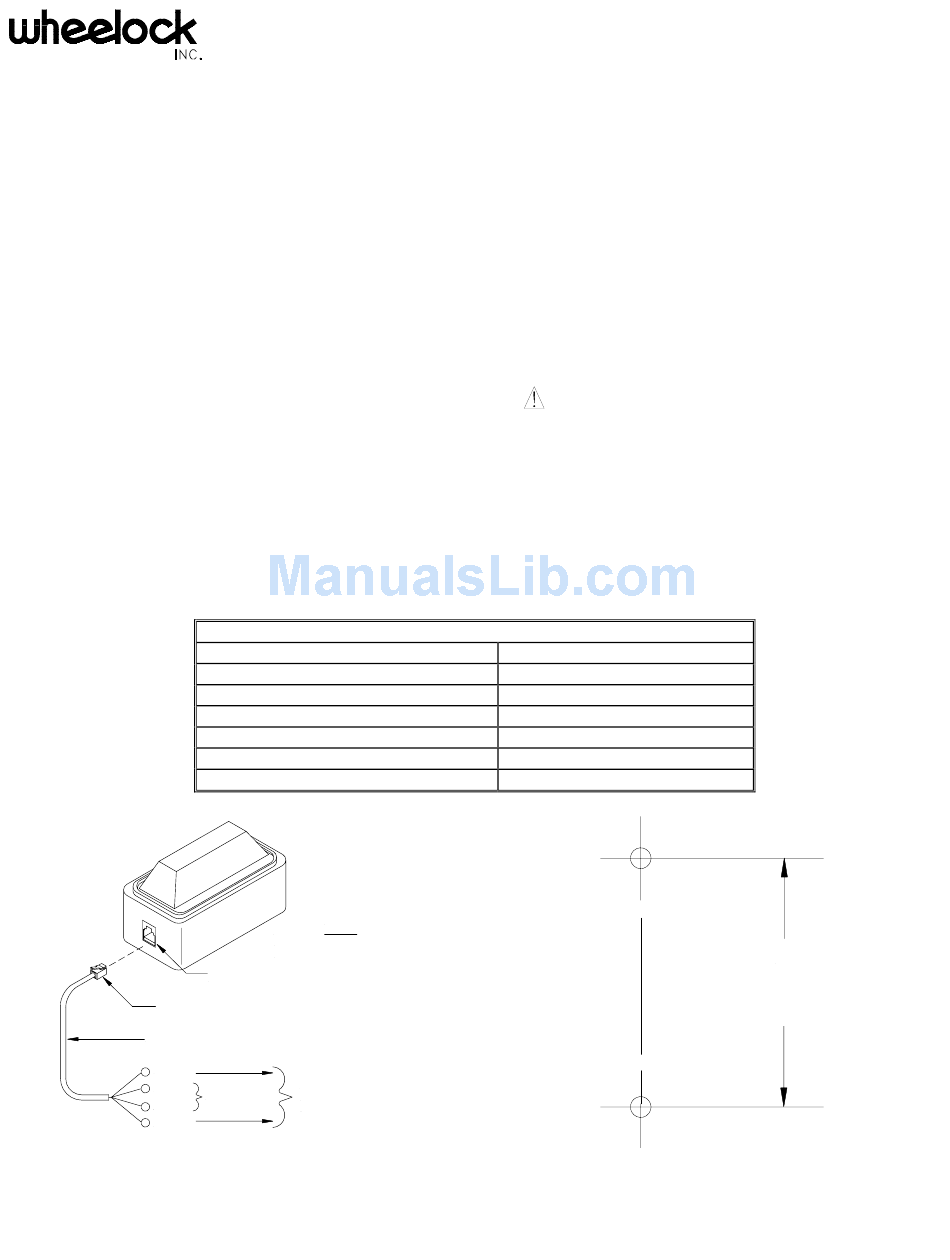

Figure 1: TelStrobe
Copyright 2002 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
Table 1: Performance Specifications
Model Number
Input Voltage Range
Nominal Voltage
Current Draw at Nominal Voltage
Peak Candlepower (cp)
Nominal Flash Rate
Input Jack
NOTE
NOT POLARITY SENSITIVE,
WILL FUNCTION EVEN IF
POLARITY IS REVERSED.
MODULAR JACK
(6 POSITION)
TO COMMUNICATION
NOT USED
SYSTEM RING
SIGNAL SUPPLY
TELSTROBE
. All warnings are printed in bold capital letters.
PS-33A WPW
18-30VAC/VDC
24VAC/DC
2/Second
USOC RJ11C
.150A
25,000
2"
Figure 2: Mounting Template
P81186 F
Sheet 1 of 2
