INSTALLATION INSTRUCTIONS
MODEL MZEM-3
3 ZONE EXPANSION MODULE
NOTE: All CAUTIONS and WARNINGS are identified by the symbol .

APPLICATION INFORMATION:

The MZEM-3 is a plug-in zone expansion module designed to expand the zone paging capability of the MZC-144 modular zone control. The MZEM-3
provides a fixed zone group consisting of 3 paging zone outputs and one background music input.
Figure 1 shows the MZC-144 PC Board, and illustrates the 3 positions available for the MZEM-3 expansion modules. Chart 1 and 2 show the Zone
Page Dial and Fixed Group Page Access Codes.

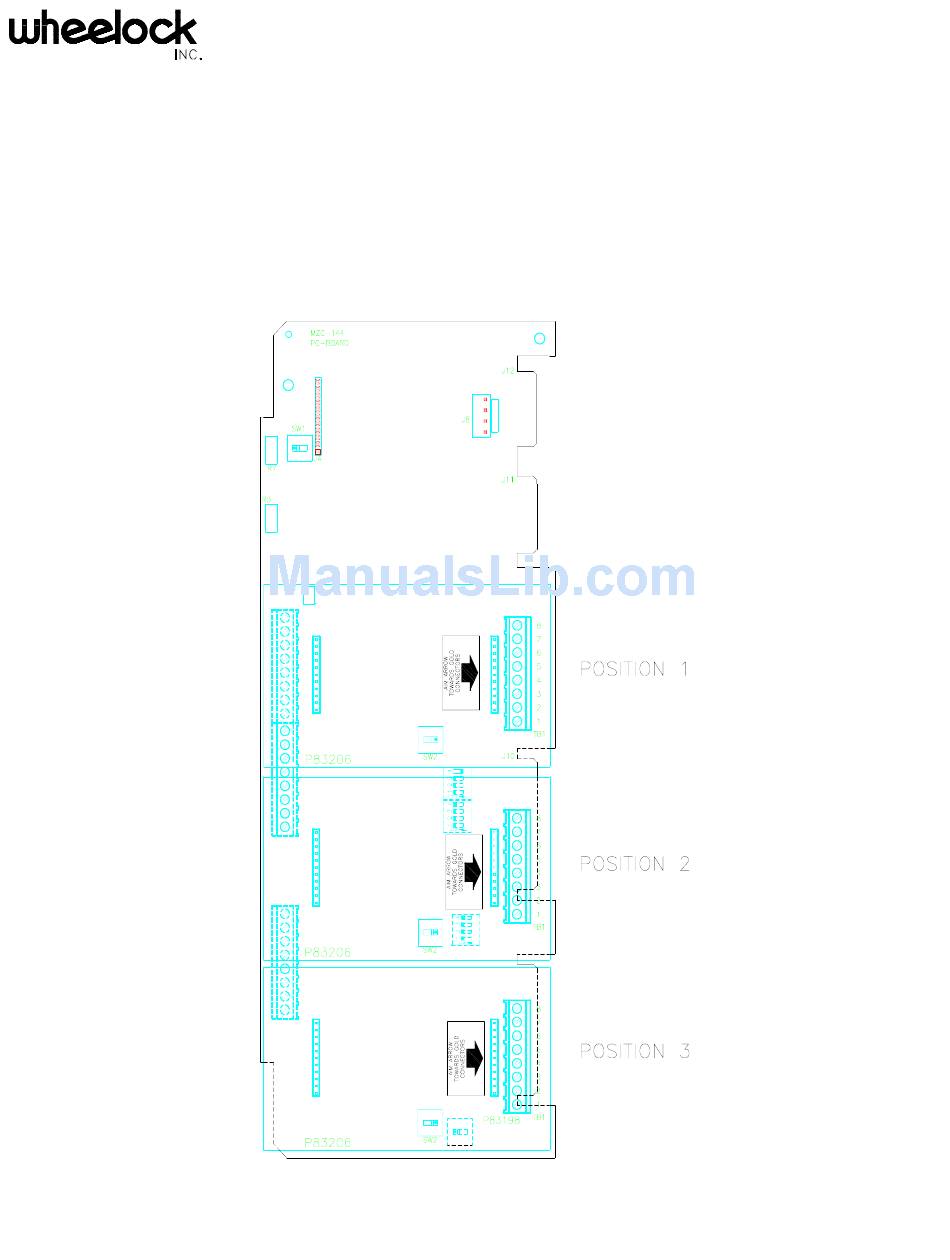

Figure 1: MZC-144 Board and MZEM-3 Positions
P83272 A
Sheet 1 of 4
Copyright 1996 Wheelock Inc. All rights reserved.
