Wheelock SERIES VL Installation Instructions

273 Branchport Avenue
Long Branch, N.J. 07740
(732) 222-6880

GENERAL:

Wheelock's VL, VL1 and VLP Visible Signals are designed with dual lamps for extra visibility and dependability. They are non-flashing incandescent
lamp signals that can be used as a visible signal only or combined with an audible signal. They can be used on a continuous or coded alarm system.
The VLPS, VLPH and VLPM are flashing xenon strobe signals that are designed to be combined with an audible signal or speaker. They are ideal for
adding strobe capability to an existing audible signal installation and they offer maximum reliability and efficiency for effective visible signaling in fire and
life safety applications. They flash once per second on continuous (non-coded) alarm systems.

SPECIFICATIONS:

VL,VL1, VLP, VLPS, VLPH Models
W in the model number indicates white lens; substitute R for red lens. The VLPM is available with a clear lens. NOTE: At 0 degrees C, minimum UL
candela ratings apply: 15cd (70,000) models = 13.75cd

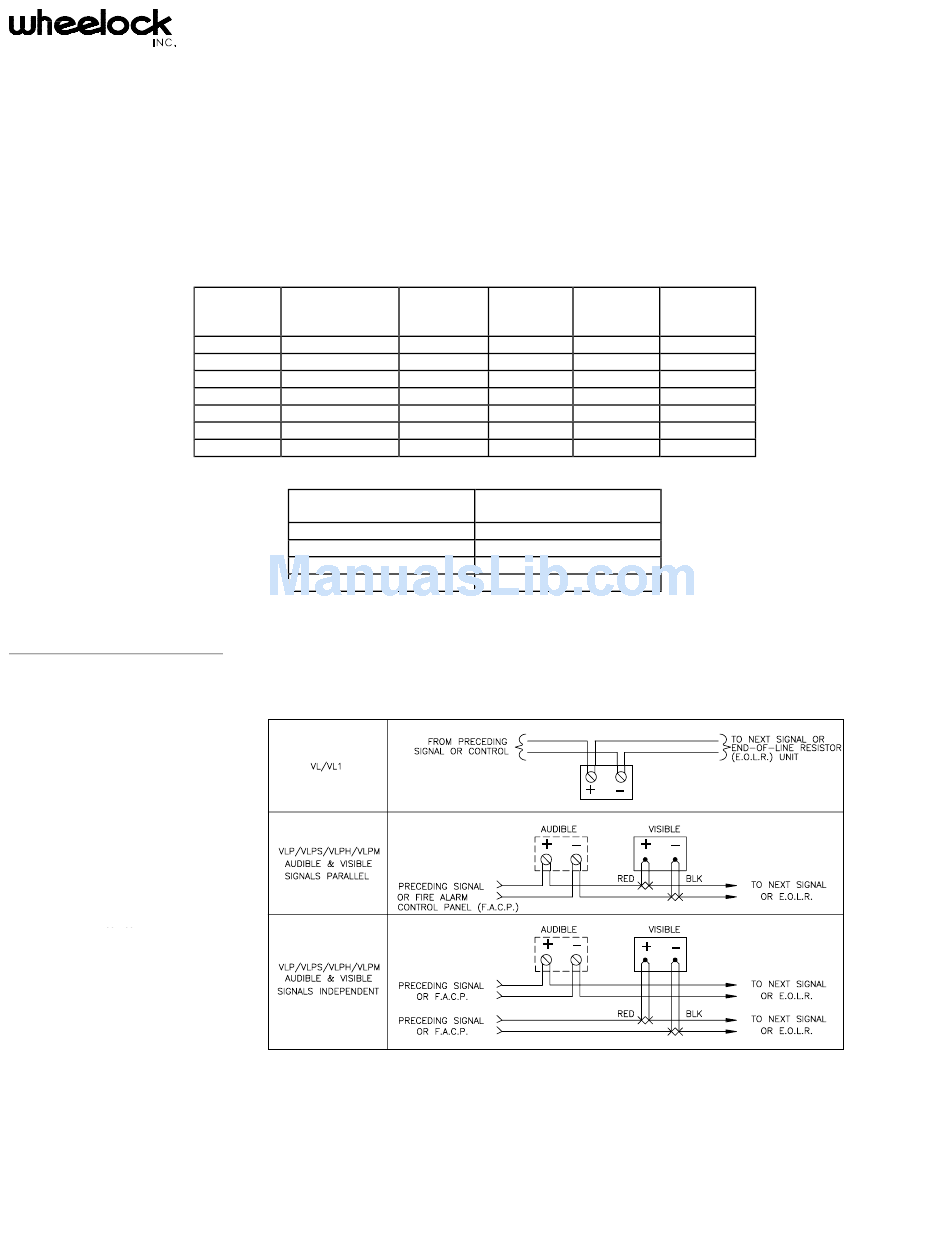

WIRING DIAGRAM:

Figure 1.
VL and VL1 models have terminals with wire clamps, (2) wires - 12 AWG max. per position are allowed. Do not pigtail or wrap wires around screw. See
Figure 1. VLP, VLPS, VLPH and VLPM models have double leads for in-out wiring (See Application Note 2).
Copyright 1986, 1989, 1990, 1991, 1992, 1993 Wheelock, Inc. All rights reserved.
INSTALLATION INSTRUCTIONS
MODEL SIGNAL
TYPE
VL-24 Incandescent
VL1-24 Incandescent
VLP-24 Incandescent
VLPS-24 Strobe
VLPH-24 Strobe
VLPH-115 Strobe
VLPM-24 Strobe
VLP, VLPS, VLPH & VLPM - POSSIBLE COMBINATIONS
AUDIBLE SIGNAL
OR SPEAKER
HORNS
BELLS (4", 6", 10")
ELECTRONIC SIGNALS
SPEAKERS
SERIES VL/VLP SIGNALS
INPUT INPUT
RANGE CURREN
VOLTAGE T(AMPS)
24VDC 0.100
24VDC 0.100
24VDC 0.100
18-31VDC 0.025
18-31VDC 0.075
115VAC 0.060
24VDC 0.088
WHEELOCK
SERIES
31T, 34T, EH-E
43T, 46T, 42PT, MB
AES-E *
ET-1010, 806T, 807T
* See Application Note 9.
CANDELA
PER MOUNTING
UL 1638 OPTIONS
0.84cd B
0.84cd A
0.84cd C,D
1.5cd C,D
15.0cd C,D
15.0cd C,D
117.0cd E,F
P81415 N
Sheet 1 of 4
