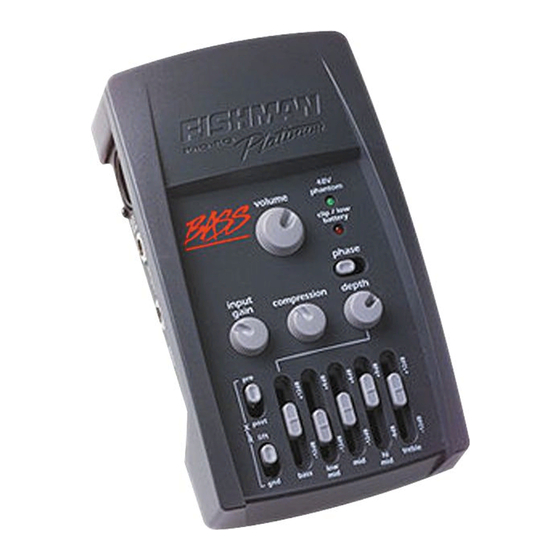

- Page 1 USER GUIDE PRO-EQ PLATINUM BASS...
- Page 2 Welcome Thank you for making Fishman a part of your acoustic experience. We are proud to offer the finest acoustic amplification products available; high-quality professional-grade tools which empower you to sound your very best.
-
Page 3: Quick Start
Quick Start 1. Place XLR Pre / Post switch to “post” position. . Adjust the Input Gain so that the Clip / Low Battery light barely flickers with strong playing. . For acoustic bass only: Set Phase switch to position that sounds best and suppresses feedback. 4. -
Page 4: Power Options
3. AC Adapter Input Use only a well filtered and regulated AC adapter with a 9-Volt DC output. We recommend the Fishman 910-R. Use of a non-recommended adapter may void the warranty and damage the unit. Input—Plug your bass in here When you plug into the input jack, the 9-Volt battery switches on. -
Page 5: Input Gain
Input Gain For the cleanest possible signal, adjust the Input Gain so that the Clip / Low Battery LED barely flickers with strong playing. If the Clip LED lights up brightly as you play, your bass signal is overdriving the circuit and you will hear distortion. -
Page 6: Phase Switch
Compression (continued) To gently smooth out your instrument’s all-around response, set the Compression between 8:00 and 11:00. For more punch set the Compression between 1:00 and :00. This is especially effective for tumbao and walking bass styles. For heavy compression with lots of sustain set the Compression knob between :00 and 5:00 (for best results set the Input Gain as high as possible without lighting the red Clip light). - Page 7 Fighting Feedback 1. Start with the Phase switch in the left position and the Depth control at 5:00. . Turn your amp or PA up so that it is on the verge of feedback. . Flip the Phase switch back and forth until you find the position that sounds good and doesn’t feed back from open G and above (mid-bass feedback).
-
Page 8: Tone Controls
Tone Controls Bass - We carefully voiced this control to give you the deep bass you need for your lowest notes, with plenty of mid-bass punch for the D and G strings. If the sound becomes boomy when you raise the Bass control, lower the Depth control until the sound tightens up. - Page 9 XLR Pre/Post Switch Choose between a true D.I. (pre EQ) or an affected XLR output (post EQ). 1. XLR Post Signal Path: Bass Signal Input Gain Depth EQ Compression Volume Phase Switch XLR Out Post is useful in live venues (especially if you are mixing from onstage) where you want your personal “dialed-in”...
- Page 10 Sample EQ Settings Here are a few suggested settings for the Pro-EQ Platinum Bass: Dub/Reggae Tumbao Fretless Jazz Classic Thumb-style...
- Page 11 Studio Acoustic Motown Five String Fishman BP-100-pizz / arco...
- Page 12 Stage Setups 1. Set the XLR Pre / Post switch to “post” when you want your personal “dialed in” sound to come through the PA. XLR Cable XLR Out Input XLR Switch PA System set for POST EQ . Plug into a bass amp. Start with the amp’s tone controls set flat.
- Page 13 a. Alternate into bass amp (especially for upright) For a cleaner and less colored sound, try bypassing the preamp in your bass amp and plug the output from the Platinum Bass directly into the effects return or the power amp input at the back of your amp.
-
Page 14: Block Diagram
Block Diagram input tuner / send output volume phase lift input gain depth compression bass treble post... -
Page 15: Specifications
THD @ 1kHz: A weighted S/N: Noise: Power Options 9 Volt Alkaline Battery: 48 Volt phantom power via XLR cable Fishman 910 AC adapter (center negative) All specifications subject to change without notice. -14dBu +10dBu 10MΩ -0dBu to +10dBu (1kΩ) -14dBu to +10dBu (1kΩ) - Page 16 Technical support, troubleshooting tips and other product information can be found at www.fishman.com/support/ www.fishman.com 009-091-00 Rev B 1-07...
