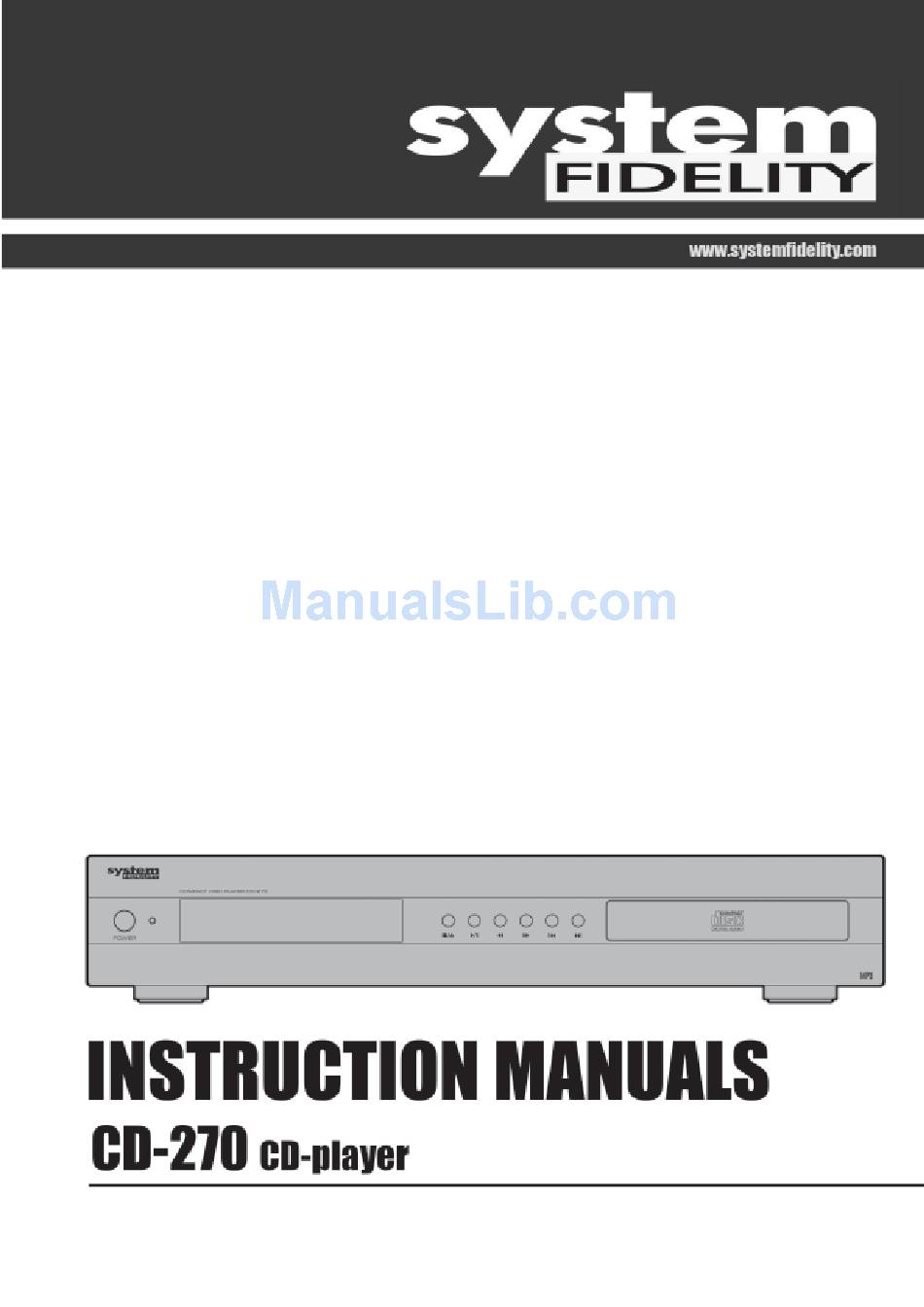

System Fidelity CD-270 Instruction Manuals

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-270 and is the answer not in the manual?

Questions and answers

Related Manuals for System Fidelity CD-270

Summary of Contents for System Fidelity CD-270

  • Page 2: Table Of Contents

    CONTENTS ACCESSORIES CONTENTS SAFETY PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT INFORMATION CONNECTIONS TO THE MAINS REMOTE CONTROL FRONT/REAR PANEL AUDIO CONNECTIONS OPERATION AND FUNCTIONS TROUBLESHOOTING TECHNICAL DATA ACCESSORIES Accessories 1 x CD-300 CD-player 1 x Remote control 2 x Batteries (Optional) 1 x Operation Manual This operation manual supplies all the information that you need to have about your System Fidelity CD-player.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS A triangle with a lightning symbol draws the user’s attention to “dangerous voltage” without insulation in the cabinet which may be high enough to entail a risk of electric shock. A triangle with an exclamation mark draws the user’s attention to important instructions for use and maintenance in the accompanying manual, which should be studied.
  • Page 4 Ventilation The cabinet is provided with slots and openings to ensure ventilation and reliable operation and to protect the unit against overheating. Do not block or cover these openings. The openings must never be blocked, for instance by placing the unit on a bed, a sofa, a carpet or similar surface . Heat Do not place the unit near sources of heat such as radiators, heat registers, ovens or other units that produce heat.
  • Page 5 must be made as incorrect setting may result in damage and often will make it difficult for a qualified technician to make the unit work properly again. E) If the unit has been dropped or damaged in any other way. F) When the operation of the unit changes drastically, the unit requires service.

  • Page 6: Important Information

    NOTES ON INSTALLATION Your System Fidelity CD-270 should be placed on a firm, level surface. Avoid placing it in direct sunlight or near sources of heat and damp. Always allow adequate ventilation and don’t place it on a soft surface like a carpet. Don’t place it in an enclosed position such a bookcase or cabinet that may impede the air-flow through the ventilation holes.

  • Page 7: Connections To The Mains

    About connection to the mains Do not turn on the power before all connections have been made correctly. Check that all connections have been made correctly before turning on the power. Check that the mains voltage is 230-240V AC50Hz before turning on the power. Check that all other connections have been made correctly before inserting the mains plug into the wall socket.

  • Page 8: Remote Control Functions

    Remote control functions CD-270 CD-PLAYER FUNCTIONS: (1) Power: Sets the CD-270 in standby mode (2) Eject: Opens the CD tray (3) 1-10 : Selects desired track for playback (11) PLAY/PAUSE: press once for playback. If press during play, the disc is paused. Press one more time for resume play.

  • Page 9: Front/Rear Panel

    FRONT PANEL DESCRIPTION (1) Mains switch : Used to switch on and off the unit by switching the mains voltage. (2) LED indicator: Lights blue indicating that the CD-player is on stand-by mode. Switched off when the CD-player is in operation and LCD display is lit. (3) VFD display: main display displaying most of the function performed.

  • Page 10: Audio Connections

    - When make the connection, please refer to the connection diagram. Make sure that all the units are switched off during any connection. The RCA sockets on your CD-270 are color coded for your convenience. Red and white are RIGHT and LEFT audio respectively.

  • Page 11: Operation And Functions

    OPERATION AND FUNCTIONS On, Off and standby Turn on the unit by pressing the mains switch. Press the standby button on the remote control to switch to standby mode. The display will turn off and all functions will be reduced to a minimum to make sure that the unit uses minimal power.

  • Page 12: Forward And Rewind

    When you press one of the skip buttons, you will select the next track in the programmed order. Repeat The CD-270 can be set to repeat one or all tracks of a CD. This is done by means of the REPEAT button on the remote control or front panel.

  • Page 13: Troubleshooting

    - Check if the disc is clean and undamaged. during playback. - The unit is positioned on an unstable surface. -The RCA cables between the CD-270 and the amplifier/receiver have been damaged. A buzzing noise can be heard. -The RCA cables between the CD-270 and the amplifier/receiver have been wound around the power cord.
  • Page 14 CONSUMER NOTICE: The System Fidelity product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE) and, in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be disposed of as unsorted municipal waste.
