- Page 1 XMP-3450 User’s Manual...
-
Page 2: Table Of Contents
Mounting options 1.4. Physical view Configuring the XMP-3450 Media Player 2.1. System connections 2.2. USB keyboard configuration menus 2.3. Connect the XMP-3450 to your network 2.4. Video output settings 2.5. Clock and calendar settings 2.6. Setting a password 2.7. Factory reset 2.8. -
Page 3: Introduction
1. Introduction This document describes the hardware and software operations of the XMP-3450, system set up, and frequently asked questions. 1.1. Features The XMP-3450 is a Full-HD 1080p high definition digital signage player featuring industrial grade mechanical design and versatile open-standard SMIL programmability. -
Page 4: Physical View

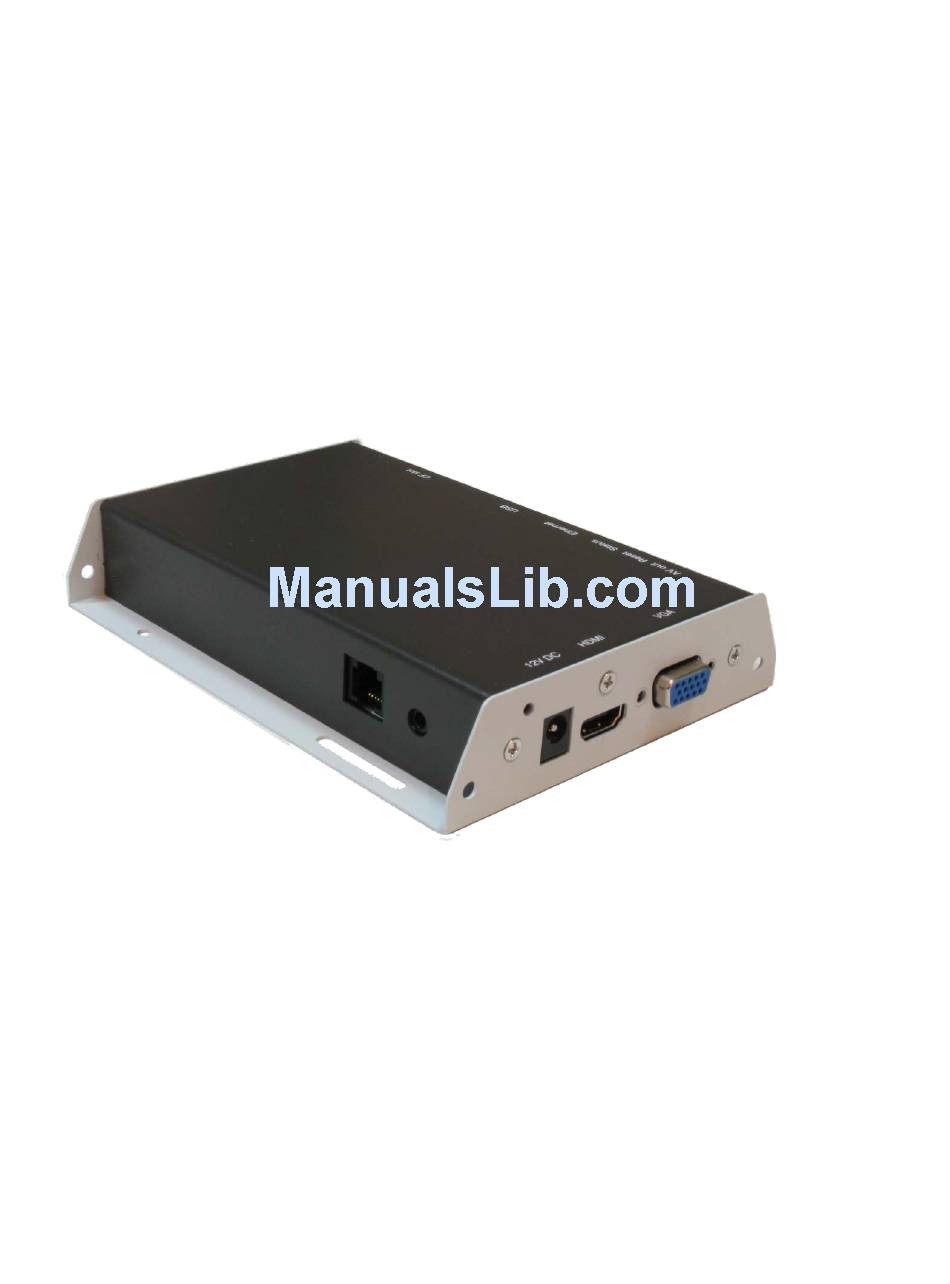

1.4. Physical view Physical features (left to right in above illustration) • 12V DC for power adapter • HDMI 1.3a connector for digital video and audio combined outputs, or digital video via option DVI adapter • VGA port for analog video output •... -
Page 5: Configuring The Xmp-3450 Media Player
2.2. USB keyboard configuration menus You must attach a USB keyboard to the XMP-3450 to configure settings. With the player booted up and ready, it takes approximately 30 seconds after you plug in the keyboard for the following menu to be displayed:... -
Page 6: Connect The Xmp-3450 To Your Network
(cursor), and then press enter to confirm (<OK>) or reject (<Cancel>) any changes. 2.3. Connect the XMP-3450 to your network Enter Network setting in the menu to set up a network connection method. -
Page 7: Video Output Settings
Proceed to configure an available static IP address. Select Wireless configuration or IP configuration as determined by your connection. Please consult your network administrator for assistance if necessary. 2.4. Video output settings For best quality, set the output resolution to match your display’s native resolution to avoid image scaling and blur. -
Page 8: Factory Reset
2.7. Factory reset If you forget a system password you have set, you must reset the system to regain access to the player. Using the reset button PRESS and HOLD the reset button with a pin RE-CONNECT the power cord WAIT about 8 seconds or until the status LED flashes Reset button RELEASE reset button and wait for system to initialize... -
Page 9: Content Management
To find out more about using HTML5 for digital signage, visit http://widget.iadea.com. 5. Working with SMIL The XMP-3450 uses open communications protocols for content presentation and playback control. SMIL- compliance means predictable results across multiple devices, and SMIL’s non-proprietary nature means that your investments are never obsolete. -
Page 10: Technical Data
6. Technical Data 6.1. Specifications XMP-3450 Video format support POPAI Screen Media Standards S6 (MPEG-1 SIF, 3Mbps CBR) S7 (MPEG-1 480p, 10Mbps CBR) S8 (MPEG-1 720p, 15Mbps CBR) S9 (MPEG-2 480p, 6Mbps CBR) S10 (MPEG-2 720p, 12Mbps CBR) S11 (MPEG-4 AVC, 480p, 6Mbps CBR) -
Page 11: Appendix: Faq
Ethernet will be used. What is the maximum file size for a single video file? The maximum video file size for the XMP-3450 is 2GB. We recommend reserving a safety margin to avoid exceeding the limit (i.e. limiting files to 1850MB). - Page 12 The Network Media Player can be configured to automatically add black bars for certain types of displays. You can set the output resolution in XMP-3450’s configuration menu to match the native resolution of your display. Some JPEG images cannot be played in the media player.
- Page 14 IAdea Limited Warranty For Media Player Devices Applicable to IAdea product models: • XMP-300/305 • XMP-320/330/340 • XMP-3250/3350/3450 • XMP-120/130 • HMP-505S/500S • NMP-200U IAdea provides, unless extended through optional service programs, one (1) year of limited warranty on its applicable product models listed above. The applicable product must be purchased through an authorized IAdea reseller.
