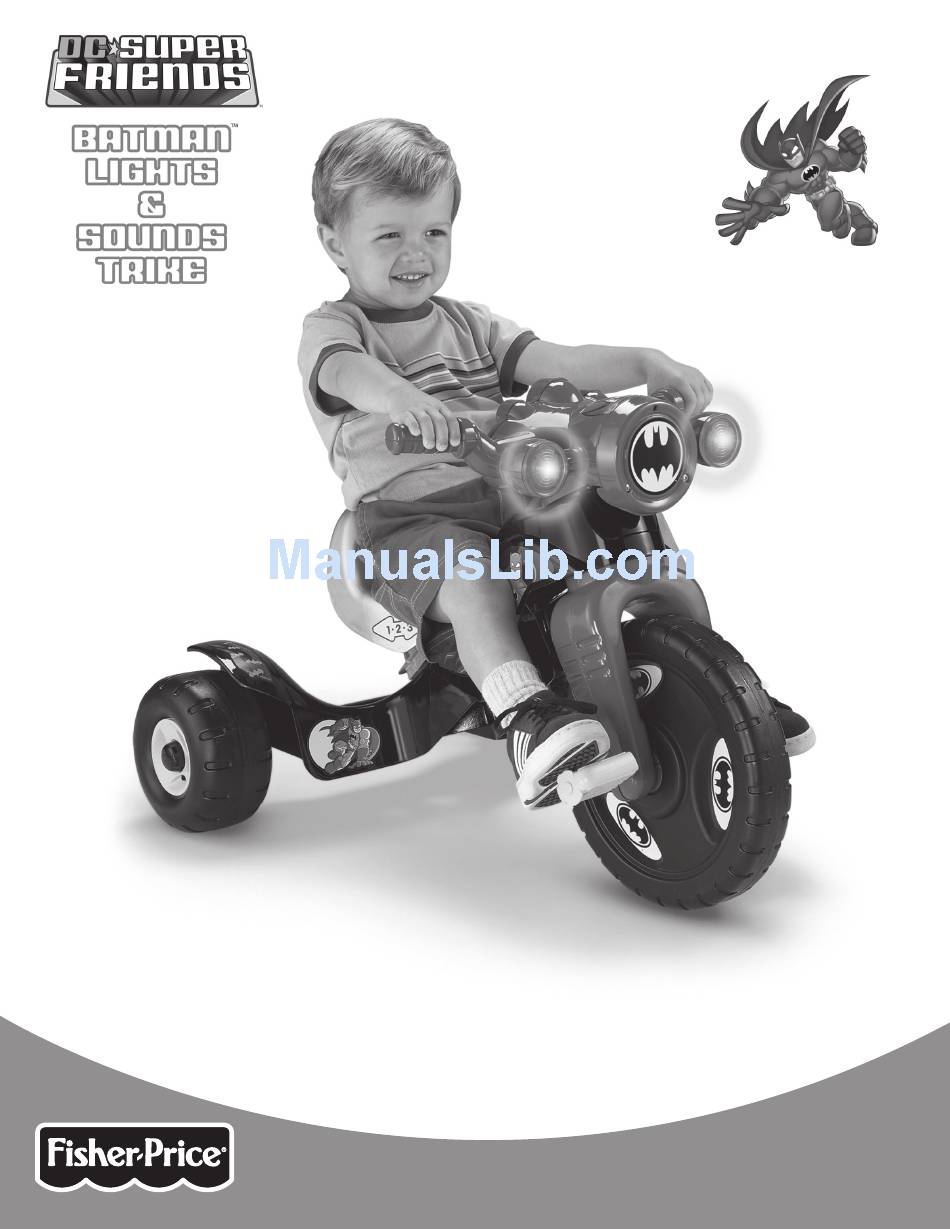

M6784
Please keep this instruction sheet for future reference, as it contains important information.
Adult assembly is required.
Tools required for assembly: Phillips Screwdriver, Hammer and Scrap Block of Wood (not included).
Requires three "AA" batteries (included).
Age: 2-6 years.
Weight limit: 60 lbs (27 kg).
www.fi sher-price.com
www.fi sher-price.com
Advertisement
Table of Contents
Related Manuals for Fisher-Price DC*SUPER FRIENDS M6784
Summary of Contents for Fisher-Price DC*SUPER FRIENDS M6784
- Page 1 M6784 Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Tools required for assembly: Phillips Screwdriver, Hammer and Scrap Block of Wood (not included). Requires three "AA" batteries (included). Age: 2-6 years. Weight limit: 60 lbs (27 kg).
- Page 2 WARNING To avoid serious injury: • Adult supervision is required. • Never use near cars and other motor vehicles, near streets, steps, sloped driveways, hills, roadways, alleys, swimming pool areas or other bodies of water. • Always wear shoes or sneakers. •...
-
Page 3: Assembly
(Indented Side Down) Straight Axle • Slide a hubcap (peg side up) onto the straight axle. • Slide a rear wheel (indented side down) onto the straight axle. Hole Straight Axle BOTTOM VIEW • Turn the frame upside down. • Insert the straight axle through the holes in the rear of the frame. - Page 4 Pedal Hubs Pedal Axle Hole • While holding the pedal hubs on the pedal axle, insert the pedal axle through the hole in the center of the front wheel. • Push the pedal hubs into the center of the front wheel until they are flush with the surface of the front wheel.
- Page 5 FIRST, insert the screw so that " is Handlebar visible. THEN, tighten the screw. " Fork Cover Rear of Trike • Insert the fork post up through the hole in the neck of the frame. Make sure the fork is positioned so that the fork covers face the rear wheels.
-
Page 6: Label Decoration
Label Decoration (Place label 7 on opposite side) (Place label 2 on opposite side) (Place remaining label 8’s on opposite side of front wheel) SIDE VIEW DASH VIEW • Make sure the areas where the labels will be applied are clean and dry. -
Page 7: Battery Replacement
Battery Replacement Note: For best performance, we recommend replacing the batteries that came with this trike with three, new alkaline "AA" (LR6) batteries. Headlight Cover • Loosen and remove the two screws from the headlight cover. Remove the headlight cover. 1.5V x 3 “AA”... -
Page 8: Removing The Seat
Motorcycle Signal Sounds Music Horn Bat call TM & © Warner Bros. Entertainment Inc. (s07) Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. Consumer Information M6784pr-0920...
