www.fisher-price.com
2
Tools needed for assembly: Hammer, Phillips Screwdriver and Scrap Block of Wood (not included).
This product requires three "AAA" (LR03) alkaline batteries (not included) for sound box operation.
If you have any questions about this product, or are missing a part, please contact Fisher-Price
(online at www.service.mattel.com or call toll-free at 1-800-432-5437) rather than return this product to the store.

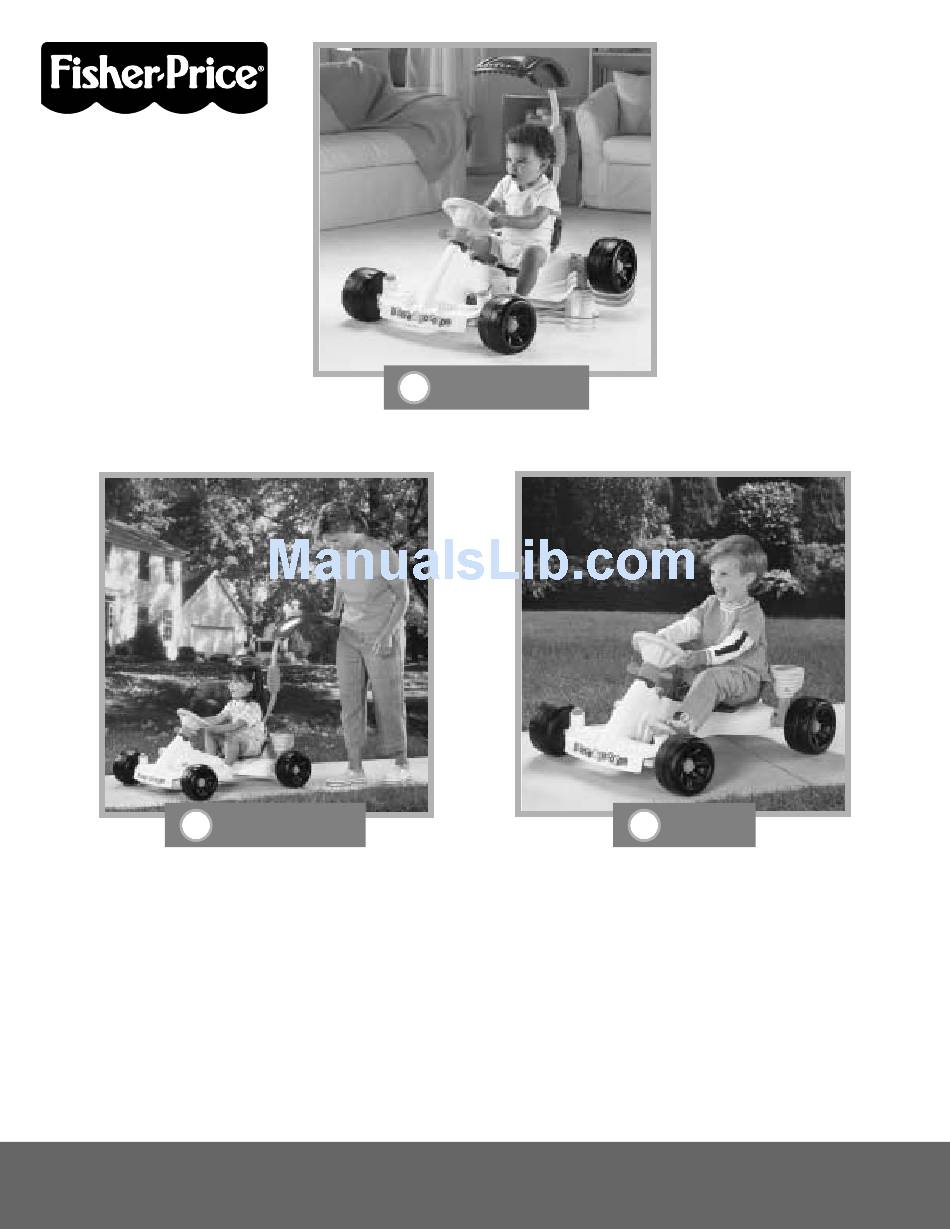

Push'n Pedal Car
Please read these instructions carefully and identify all parts before assembly.
Refer to the parts and fasteners pages for identification.
Keep this instruction sheet for future reference, as it contains important information.
Adult assembly is required.
Ages 18 months – 5 years.
Maximum weight: 50 lbs. (23 kg).
Bounce 'n Go
Stationary
1
Bouncy-Car Action
™
Coupe
Instructions
3
Pedal Car
®
G4815
Advertisement
Related Manuals for Fisher-Price BOUNCE N GO G4815
Summary of Contents for Fisher-Price BOUNCE N GO G4815
- Page 1 This product requires three “AAA” (LR03) alkaline batteries (not included) for sound box operation. If you have any questions about this product, or are missing a part, please contact Fisher-Price (online at www.service.mattel.com or call toll-free at 1-800-432-5437) rather than return this product to the store.
- Page 2 Handle/Canopy Upper Post Latch Halves Grip Halves Lower Post Seat 2 Frame Bushings Bouncing Base/Spoiler Parts Sound Box Cover Sound Box .354" Cap Nut Steering Wheel Turn Signal Steering Wheel Base 2 Axle Covers 2 .354" Cap Nuts Frame Steering Linkage Assembly - Fitted to Frame Footrest Steering Column...
-
Page 3: Warning And Caution
Fasteners Note: We’ve included extra fasteners for your convenience! .354" .354" Cap Nut - 7 " Washer - 2 #6 x " Screw – 6 #8 x " Screw – 11 " x 1 " Screw – 1 #10 x 2 "... - Page 4 Steering Linkage Assembly Front Axles • Place the frame upside down on a flat surface. Make sure the steering linkage assembly is fitted to the front end of the frame. • Remove the tape holding the front axles to the frame. Rotate the front axles out.
- Page 5 Axle Covers • Fit an axle cover over the cap nuts and to the front end of the frame. Push down on the axle covers to “snap” them into place. Hint: You may need to carefully tap the axle covers with a hammer to secure in place.
- Page 6 .354" .354" Cap Nut • Fit a .354" cap nut onto the end of the front axle. • Cover the cap nut with the assembly tool. Tap the cap nut assembly tool with a hammer to secure the cap nut to the front axle. •...
- Page 7 Rear Axle Insert Rear Axle through these Parts • Slide the smooth end of the rear axle into the hole in one side of the bouncer base/spoiler, a frame bushing, the frame, the other frame bushing and out through the hole in the other side of the bouncer base/spoiler.
- Page 8 • Fit an axle cover to the large, rear wheel, as shown. • Push the axle cover to “snap” it into place. Hint: You may need to carefully tap the axle cover with a hammer to secure in place. • Repeat assembly steps 13-17 to assemble an axle bushing, large, rear wheel, wheel bushing, .354"...
- Page 9 Steering Column • Lift the front end of the vehicle. • Insert the straight end of the steering column up through the hole in the frame. Steering Column Curved End • Fit the curved end of the steering column into the hole in the steering linkage.
- Page 10 1.5V x 3 "AAA" (LR03) SHOWN ACTUAL SIZE • Loosen the screws in the sound box battery compartment door. Remove the battery compartment door. • Insert three, new, alkaline “AAA” (LR03) batteries into the battery compartment. Hint: We recommend the use of alkaline batteries for longer battery life. •...
- Page 11 Upper Post • Fit the upper post to the handle/canopy. • Insert six #8 x " screws into the upper post and tighten. Latch Halves • Fit the latch halves to the end of the lower post. • Insert three #6 x "...
- Page 12 Assembly Front Lower Bend in Post Column • Position the post so that the lower bend is toward the front end of the coupe. • Insert the post into the column on the back of the coupe. Column • Insert the #10 x 2 "...
- Page 13 Seat Adjustment • Place the seat onto the coupe into either of two positions – front or back • Have your child sit on the seat and check the distance between your child’s feet and the pedals. Now, move the seat closer to or further from the pedals Frame •...
- Page 14 Learn-to-Ride Stage Stationary Bouncy-Car Action Buttons • Locate the sliding latches inside the bouncing base/spoiler. While lifting both sliding latches on the bouncing base/spoiler the bouncing base/spoiler down . Continue to rotate the bouncing base/spoiler down until it “snaps” into place. •...
- Page 15 Pedal Car Fun with or without Canopy! • Locate the sliding latches inside the bouncing base/spoiler. While pushing both sliding latches on the bouncing base/spoiler down rotate the bouncing base/spoiler up . Continue to rotate the bouncing base/spoiler up until it “snaps” into place. •...
-
Page 16: Consumer Information
16-18 William Pickering Drive, Albany 1331, Auckland. ASIA Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Fisher-Price, Inc., a subsidiary of Mattel, Inc. East Aurora, New York 14052, U.S.A. ® Consumer Relations, toll-free at 1-800-432-5437, ®...
