Meridian 566 Technical Data Sheet

Meridian have a strong
history in stand-alone
Digital–Analogue
converters. The 566 is
the latest in a long
pedigree that began
with the famous 203
DAC in 1988.
The 566 incorporates
the best of Meridian's
converter technology –
including the lowest
jitter and brand-new 20-
bit conversion. This is
without doubt the
finest sounding
converter to date.

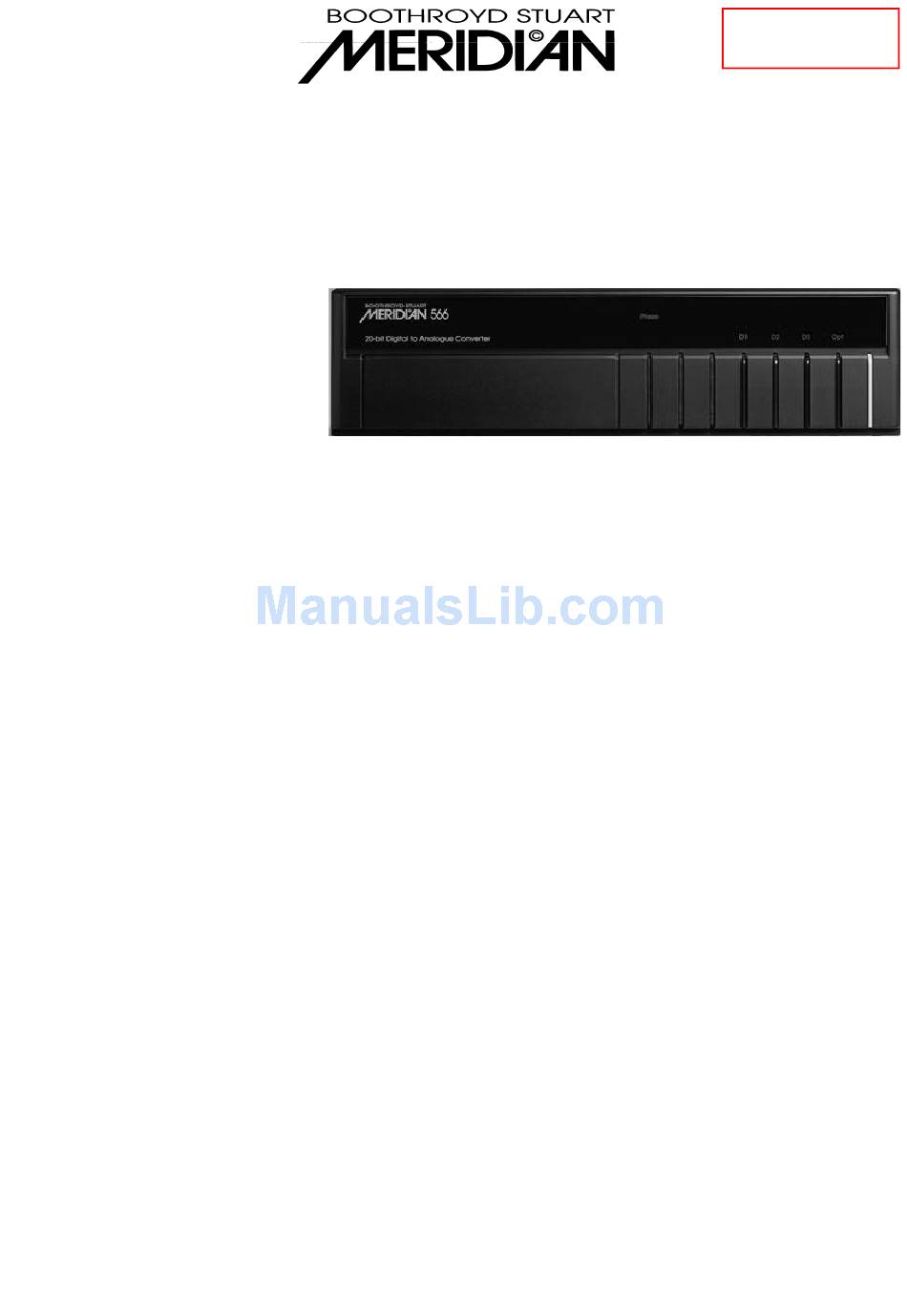

566 20-bit D to A Converter
The Meridian 566 is a stand-alone
two-channel Digital–Analogue
converter for the 500 Series. Four
inputs are provided including AES/EBU
and Toslink optical. Inputs can be
selected either from the front-panel
switches or via the Meridian Comms
network.
The selected input is stabilised via
Meridian's proprietary twin phase-lock
loop which yields the lowest jitter in
the industry – around 1ps rms. This
unique PLL system was pioneered in
the 263, developed further in 563 and
now has reached a new level of
performance thanks to numerous
detailed developments.
The conversion system in 566 is a new
Delta-Sigma true 20-bit converter and
Meridian Audio Limited, Stonehill, Stukeley Meadows, Huntingdon, Cambs, PE18 6ED, England.
Sales +44 44 (0)1480 434334 - Fax +44
WWW: http://www.meridian.co.uk
is based on an IC developed by Crystal
Semiconductor in consultation with
Meridian. The combination of low-jitter
clocking and this remarkable converter
is a sound that sets new standards for
transparency, sound stage and
dynamics.
In the 566, for the first time a Meridian
DAC has been given Comms capability.
This feature allows the 566 to be
remotely controlled in a complete
Meridian setup.
44 (0)1480 432948
Technical Data Sheet
566/1 – 23-10-96
