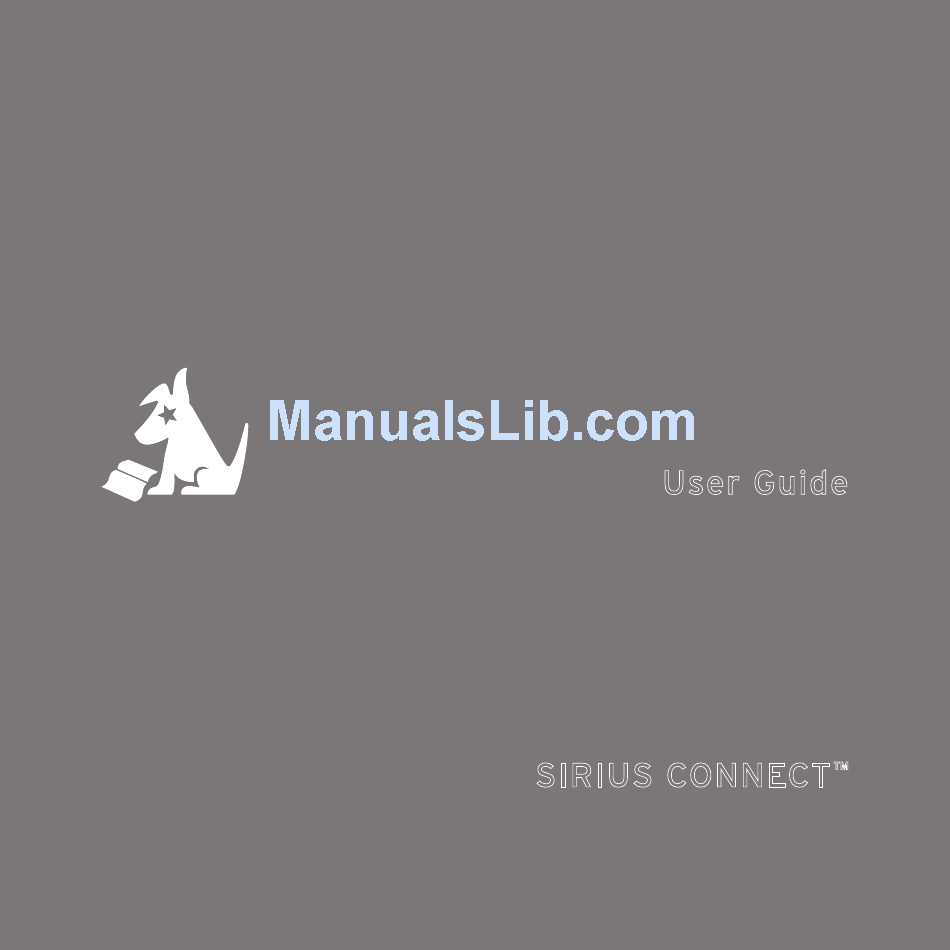

- Page 1 User Guide SiriUS ConneCt ™ Docking Kit...

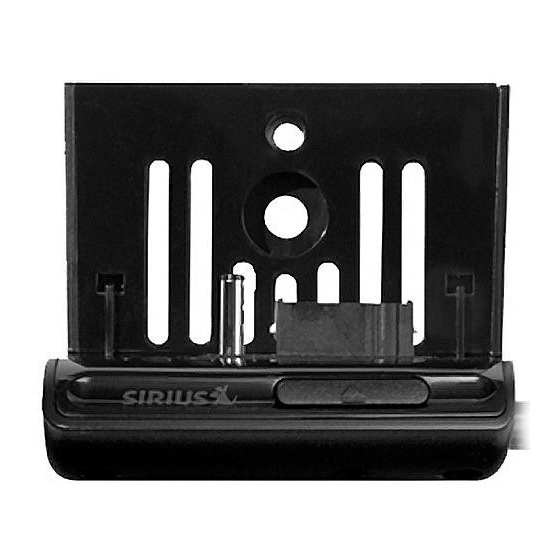

- Page 2 Congratulations on the Purchase of your new SCVDOC1M SiriusConnect Vehicle Docking Kit The SCVDOC1M SiriusConnect™ Docking Kit will turn your SIRIUS Dock & Play radio into a dedicated tuner, allowing you to control your SIRIUS radio from the audio headunit in your boat, RV or other vehicle. A direct audio connection from the SIRIUS radio means that you can enjoy the rich, clear sound of the SIRIUS digital broadcasts over your vehicle’s audio system.
-
Page 3: Table Of Contents
Table of Contents Table Of COnTenTS COPyrighTS & TraDeMarKS Warning anD SafeTy infOrMaTiOn FCC Information ......5 Canadian Compliance . -
Page 4: Copyrights & Trademarks
Copyrights & Trademarks © 2007 Sirius Satellite Radio Inc. All Rights Reserved. ® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of Sirius Satellite Radio Inc. All Rights Reserved. ™ “SiriusConnect”, “Stiletto”, “Sportster”, “Starmate”, and “Stratus” are trademarks of Sirius Satellite Radio Inc. -
Page 5: Warning And Safety Information
Warning and Safety Information FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Canadian Compliance
Canadian Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Safety Precautions Be sure to observe the following warnings. Failure to follow these safety instructions and warnings may result in a serious accident and/or personal injury. -
Page 7: Package Contents
Package Contents The following items are included with your purchase of the SCVDOC1M SiriusCon- nect Docking Kit. Unpack the kit carefully and make sure that everything shown is present. If anything is missing or damaged, or if the kit fails to operate properly, notify your dealer immediately. - Page 8 SiriusConnect SiriusConnect Pedestal Mount Pedestal Mount interface Cable interface Cable rubber feet rubber feet Screws Screws & grommet & grommet Note that Screw D is pre-installed in the SiriusConnect Dock. Note that the Rubber Feet & Grommet are pre-installed on the SiriusConnect Dock. The following compatibility chart shows which SIRIUS radios are compatible with each radio adapter: Radio Adapter...
-
Page 9: Controls And Connectors
Controls and Connectors Figure 1 and the table following identify and describe the controls, connectors, and various mounting connections of the dock. Radio Adapter Dock Mounting Hole Mounting Hole Radio Adapter Alignment Holes Front View Sirius Universal Docking Connector SiriusConnect Interface Connector Radio Release Button Antenna... - Page 10 Description of Dock Controls, Connectors, and Mounting Connections Control/Connector/ Description Mounting Connection Radio Adapter The Radio Adapter is secured to the dock by attach- ing it with a screw (D) to this hole. Mounting Hole Dock The dock can be mounted to a flat surface in the Mounting Hole vehicle by using a screw (B) through this hole.
- Page 11 Description of Dock Controls, Connectors, and Mounting Connections Control/Connector/ Description Mounting Connection When the locking screw (C) is tightened into this hole, Locking Screw Hole it secures the SIRIUS radio to the dock by preventing the release button from being pressed. The pedestal mount is secured to the dock by Pedestal Mount attaching it with screws (A) to these holes.
-
Page 12: Installation
Installation It is recommended that prior to starting the installation, you read this installation sec- tion completely and then follow the instructions. In addition, consult the manual of the headunit to which you will be connecting the dock to determine any required installa- tion configuration. - Page 13 feet and grommet prevent the dock from sliding when installed on a flat surface. Method 2: Removing the rubber feet E and grommet F (pre-installed on the dock, see Figure 2) and attaching the pedestal mount to the dock using the four mount- ing screws A, and securing the pedestal mount to the vehicle using the adhesive on the pedestal foot.
- Page 14 Mounting Screws (A) Pedestal Mount Optional Mounting Holes Adhesive figure 3 figure 3 attaching the radio adapter When you have mounted the dock, you should attach the radio adapter for your SIRIUS radio to the dock. (Figure 4) There are three different radio adapters provided for the SIRIUS radios.
- Page 15 Radio Adapter Radio Adapter Mounting Screw (D) figure 4 figure 4 When the radio adapter has been attached to the dock, you can place your SIRIUS radio into the dock. installing the locking Screw If you will be permanently installing your SIRIUS radio in the dock, you can install the locking screw to prevent the SIRIUS radio from being removed from the dock.
- Page 16 compatibility options. Figure 5 shows a Sirius-Ready or SAT Radio Ready headunit using the provided 8-PIN DIN cable. Note that the headunit must be capable of directly communicating with the SCVDOC1M SiriusConnect Dock protocol. SiriusConnect 8-pin DIN Cable figure 5 figure 5 Figure 6 shows a Sirius-Ready or SAT Radio Ready headunit with an optional headunit specific connector/adapter cable (not provided).
-
Page 17: Operation
Operation Before you can listen to the SIRIUS service, you need to subscribe to the Sirius Satellite Radio service if you have not done so already. Please be sure to follow the activation instructions for your specific Sirius radio as well as your headunit and/or SiriusConnect interface adapter instructions. - Page 18 For operating instructions consult the owners manual of your headunit. When your SIRIUS radio is connected via the SCVDOC1M SiriusConnect Docking Kit to your headunit, the buttons and controls of the SIRIUS radio will be disabled, and a SiriusConnect message or logo will be displayed. If you will not be removing the SIRIUS radio from the dock and want to lock the radio in the dock so it cannot be removed, insert the locking screw C (shown on page 8) in the locking screw hole in the bottom of the dock.
-
Page 19: Specifications
Specifications Power Requirements ........11-16 VDC, 1A Operation Temperature . - Page 20 SiriUS Satellite radio inc. 1221 Avenue of the Americas new York, nY 10020 800.869.5590 SCVDoC1M (SCVDoC1M110807b) oo.ABCD1.001...
