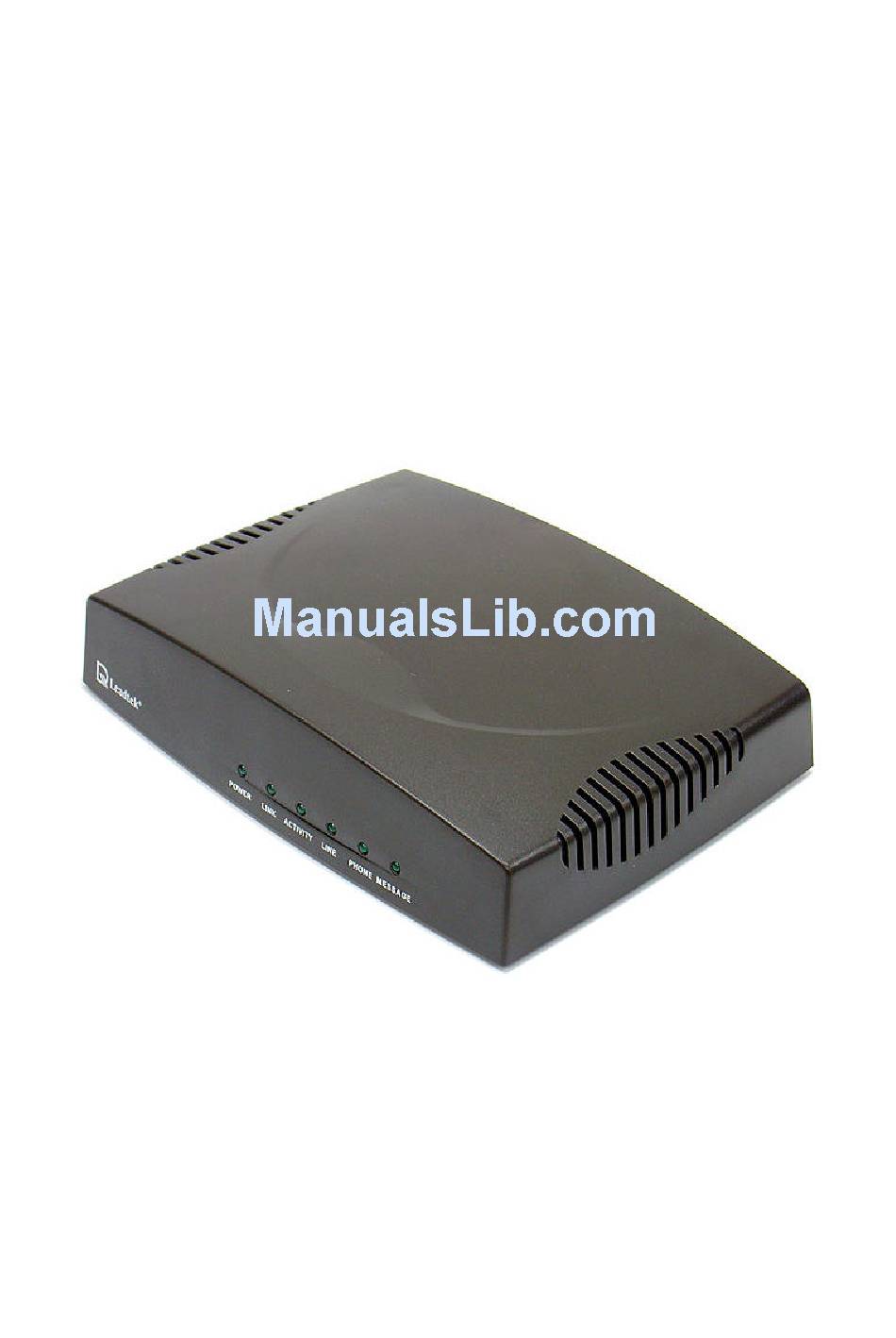

- Page 1 Quick Installation Guide CODE: LR8051/8052/8053 Version A P/N: W0500942...
-
Page 2: Installation And Configuration
3. Ethernet Cable 4. Telephone Line (8051S and 8053R only) 5. Quick Installation guide Installation BVA 8051 Series (8051S and 8051SL) INTERNET: connect to a router or a device accessing the Internet. (eg. an ADSL or cable modem) LINE: connect to a telephone line wall socket (PSTN). (8051S only) PHONE: connect to a telephone set. - Page 3 Installation and Configuration Back panel for 8052D...
- Page 4 Installation and Configuration Powering on the Device Each time you turn on the device (including the very first time), you should leave it alone for at least 5 minutes. During this period, the configuration information maybe be obtained from your service provider and some critical functions like firmware updating can be performed by the device .
- Page 5 Installation and Configuration Changing Settings Using a Telephone Set (BVA 8051 and BVA 8052 Series only) Follow the steps in "Restoring Factory Defaults" to reset the device. In step #3, when you see the Power LED flashing rapidly, immediately release the RESET button. Your telephone handset should now be beeping.
- Page 6 Installation and Configuration Configuring the Auto Provisioning System (APS) The Auto Provisioning System requires the support of your telephony service provider. You also need specific APS parameters. Please check with your service provider for details. To configure the Auto Provisioning System in the device, you need to use a browser. Please see the section called "Changing Settings Using a Browser".
- Page 7 Installation and Configuration Switching between IP and PSTN Calls (8051S and 8053R only) If you have an 8051S or an 8053R and connected a telephone line (PSTN) to the LINE port, you can use the same telephone set to make either IP or PSTN calls.
- Page 8 Installation and Configuration Using the Advanced Calling Features Advanced calling features depend on your service provider. Please contact your service provider before using. Note: F denotes the Flash key on your telephone set. If your phone does not have a Flash key, you can simulate a flash by pressing and releasing quickly the handset hook switch.
-
Page 9: Led Indicators
LED Indicators LED indicators BVA8051 Series Label POWER LINK ACTIVITY LINE PHONE MESSAGE Behavior ON :power on ON:LAN is Blinking: ON : PSTN ON : IP line ON: M essage and IP connected N etwork line is is off -hook waiting address traffic on... - Page 10 LED Indicators BVA8053 Series Label POWER LINE PHONE STATUS Behavior ON :power on ON:LAN is ON:WAN is ON :PSTN ON:IP line ON: W AN IP connected connected l ine is is Off- hook address OFF:power O ff - hook (In use) acquired OFF:LAN is OFF: WAN...
-
Page 11: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
