Summary of Contents for RuggedCom RUGGEDPOWER RP100

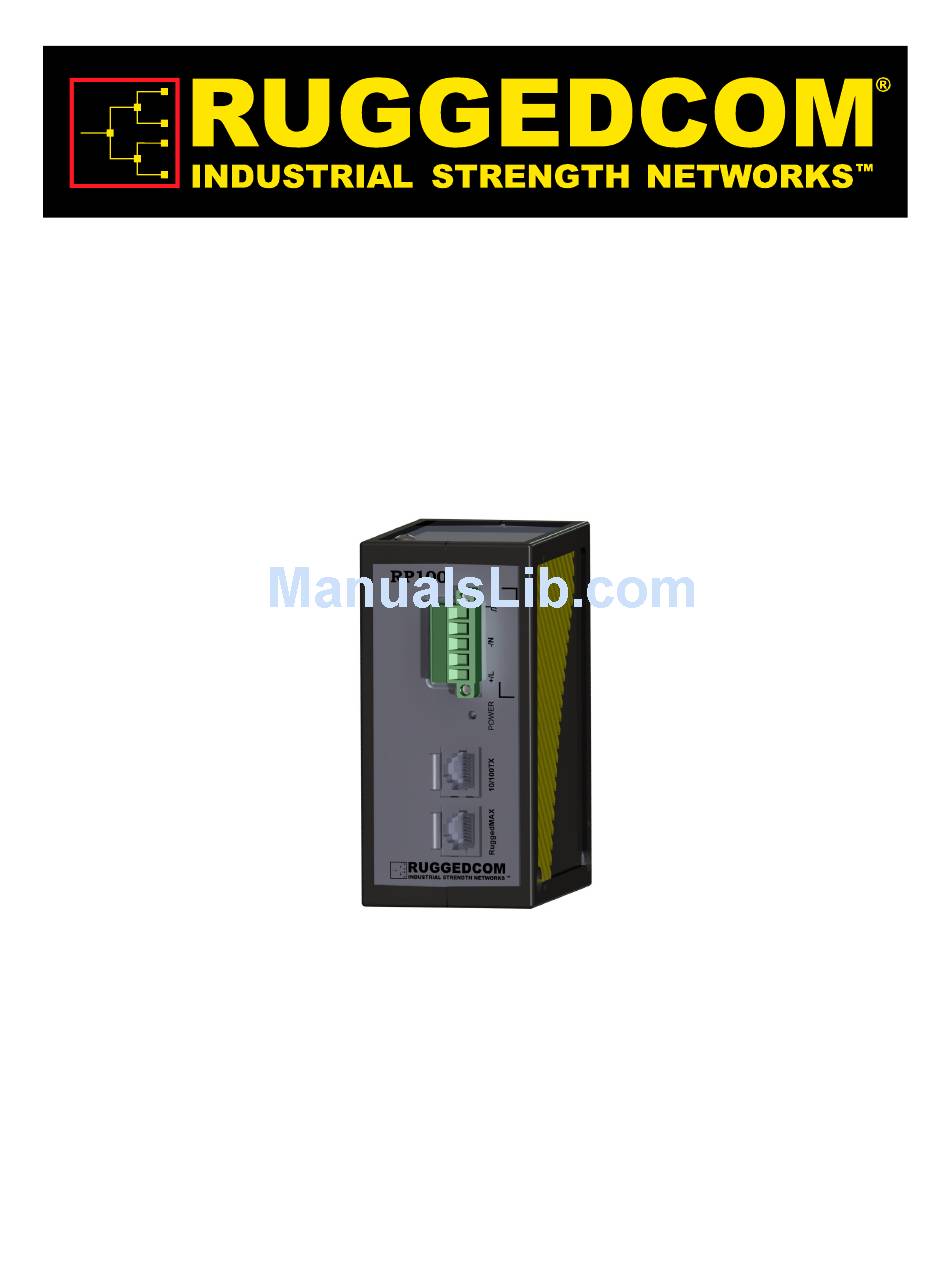

- Page 1 RuggedPower™ RP100 Hardware Installation Guide Revision 101 - April 26, 2012 www.RuggedCom.com...
- Page 2 We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot be completely ruled out. RuggedCom shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
2.4.1. 10/100 TX Port ....................10 2.4.2. RuggedMAX Power Port / IEEE802.3at Port ..........11 3. Specifications ........................12 3.1. Power Supply Specifications ..................12 3.2. Mechanical Specifications ..................12 3.3. Physical Dimensions ....................13 A. Warranty ..........................14 RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... - Page 4 2.1. RP100 DIN Rail Mounting ....................9 2.2. AC Power Supply and Ground Connections ..............9 2.3. DC Power Supply and Ground Connections ..............10 2.4. RJ45 Port Pinout ......................11 3.1. RP100 Dimensions ......................13 RuggedCom® RuggedPower™ RP100 Installation Guide Rev101...
-
Page 5: Ruggedcom® Ruggedpower
RuggedPower™ RP100 List of Tables 1.1. RP100 Front Panel LED ..................... 7 2.1. RJ45 Ethernet Port Pinout ....................11 3.1. Power Supply Specifications ..................... 12 3.2. Mechanical Specifications ....................12 RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 6: Cautions
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could invalidate specifications, test results, and agency approvals, and void the user’s authority to operate the equipment. -
Page 7: Product Overview
• “AT” option: the RP100 complies with the IEEE802.3at specification. 1.2. RP100 Front Panel Description Figure 1.1. RP100 Front Panel The front panel LED provides the following indication: Activity Description Power Solid (Green) Power On Table 1.1. RP100 Front Panel LED RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 8: Rp100 Top View
1. Product Overview 1.3. RP100 Top View Figure 1.2. RP100 Top View 1.4. RP100 Side View Figure 1.3. RP100 Side View RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 9: Installation
This section applies only to RP100 units equipped with the “HI” power supply option. Figure 2.2. AC Power Supply and Ground Connections Connect the AC power supply as follows: 1. +/L = AC HOT, and is connected to the HOT terminal of the AC power source. RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 10: Dc Power Supply Wiring And Grounding
RJ45 receptacles at either end. Figure 2.4, “RJ45 Port Pinout” shows the RJ45 port pinout. RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 11: Ruggedmax Power Port / Ieee802.3At Port
Ground) Ground) Table 2.1. RJ45 Ethernet Port Pinout The unused pins, 4, 5, 7, and 8 of the 10/100Tx port are terminated to Chassis Ground via a network that improves EMI and ESD performance. RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 12: Specifications
3.2. Mechanical Specifications Specification Value Dimensions 4.625 × 2.225 × 3.75 inches (Length × Width × Depth) (117 × 57 × 95 mm) Weight 1.92 lb (0.87 Kg) Enclosure Die cast aluminum Table 3.2. Mechanical Specifications RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 13: Physical Dimensions
3. Specifications 3.3. Physical Dimensions Figure 3.1. RP100 Dimensions RuggedCom® RuggedPower™ RP100 Installation Guide Rev101... -
Page 14: Warranty
Appendix A. Warranty Appendix A. Warranty RuggedCom warrants this product for a period of five (5) years from the date of purchase. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. For warranty details, visit www.RuggedCom.com...
