Roller Derby 1687284 Installation Instructions

40” roller bar mower kit

Advertisement

Quick Links

Installation
Instructions
13
11
4
9
15
16

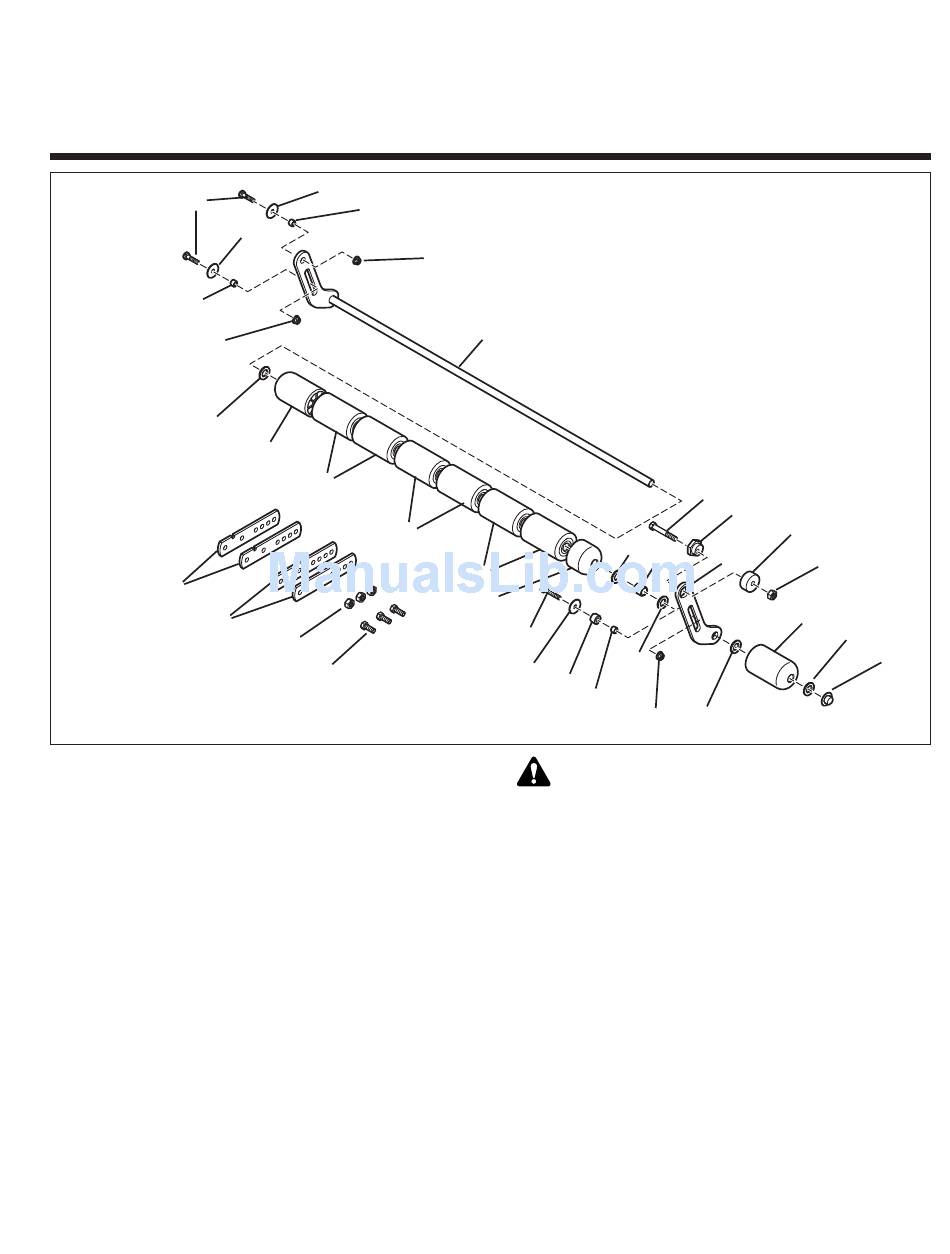

Figure 1. Kit Contents:
Ref
Part No.
Qty.
Description
1
1922127
1
Capscrew, 5/16-18 x 1-3/4
2
2157081
1
Spacer
3
1960520
1
Nut, push, 5/8, capped
4
2860643
3
Nut, lock, flanged, 5/16-18
5
1602946
1
Spacer
6
1717675
1
Roller, round end, 2.05 long
7
1668513
6
Roller, flat end, 4.1 long
8
1722036
2
Roller, round end, 4.1 long
9
1924366
5
Washer, flat, 5/8
10
1733081
1
Roller Shaft Assembly
11
1960236
3
Spacer
12
1960044
3
Washer, flat
13
1921977
2
Capscrew, 5/16-18 x 1-1/4
14
1734987A
1
Bar, roller
15
1735093
2
Bar, Extension (notched)
16
1735092
2
Bar, Extension
17
1960687
4
Nut, Lock, Flanged, 3/8-16
18
1923490
3
Capscrew, 3/8-16 x 1
19
1921972
1
Capscrew, 3/8-16 x 2
20
1704082
1
Adjusting Nut
21
1718762
1
Spacer
12
11
12
8
7
7
17
18
40" Roller Bar Mower Kit
For Baron & Rear Discharge Series Lawn Tractors
4
10
7
6
1
12
2
11
WARNING
Before beginning any service work turn off the
PTO, set the parking brake, turn off the ignition,
and disconnect the spark plug wire(s).
1
Part No. 1687284
19
20
21
9
5
14
8
9
9
4
17
9
3

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1687284 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roller Derby 1687284

  • Page 1 Installation 40” Roller Bar Mower Kit Part No. 1687284 Instructions For Baron & Rear Discharge Series Lawn Tractors Figure 1. Kit Contents: WARNING Part No. Qty. Description 1922127 Capscrew, 5/16-18 x 1-3/4 Before beginning any service work turn off the...
  • Page 2 Installation Instructions 40” Roller Bar Mower Kit Figure 2. Anti-Scalp Gage Wheel Removal A. Gage Wheels E. Nuts, Security, Lock, 3/8-16 B. Capscrews, Hex, 3/8-16 x 3 F. Capscrews, Hex, 5/16-18 x 1 C. Spacers G. Nut, Flanges, ESNA, 5/16-18 D.
  • Page 3 Installation Instructions 40” Roller Bar Mower Kit Install Roller Shaft Assembly 2. Attach the roller bar assembly (A, Figure 5) to the left side of the mower deck (B) using a 5/16-18 x 1-1/4 1. Attach the roller bar assembly (A, Figure 4) to the left capscrew (C), 5/16 flat washer (D), spacer (E), and side of the rocker shaft assembly (B) using a 5/16-18 flange locknut (F).
  • Page 4 Installation Instructions 40” Roller Bar Mower Kit Install Height Adjustment Trunnion Note: Attaching the trunnion to the inner hole provides lift operation with minimal effort, but with average below surface operation. Attaching the trunion to the outer hole provides maximum below surface roller travel, but with greater effort for operation.
