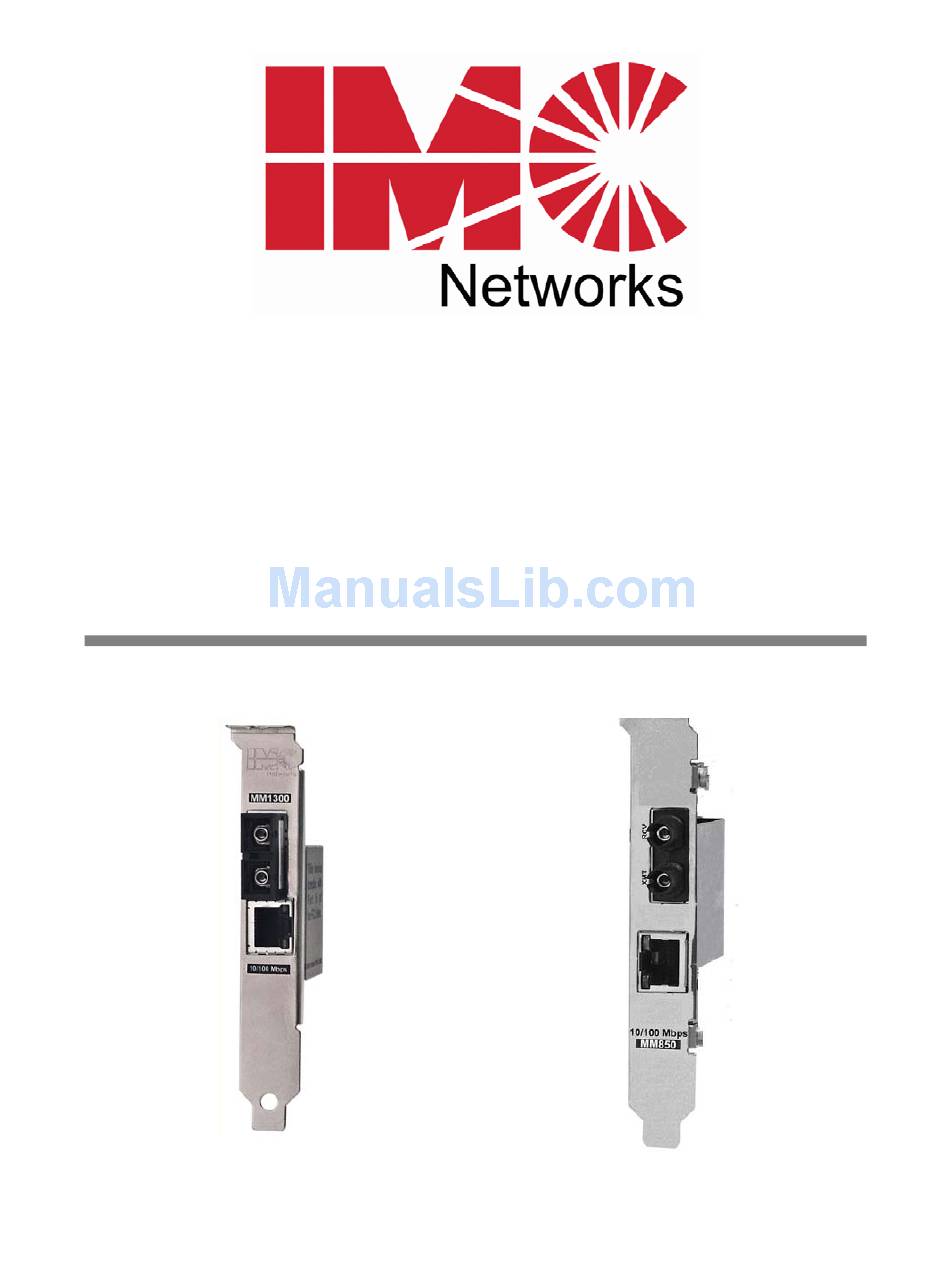

- Page 1 McPC MediaLinX (ISA & PCI Version) Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the McPC MediaLinX................1 PCI Version ......................2 ISA Version ......................3 Specifications (PCI and ISA Version) ..............4 IMC Networks Technical Support...............5 Fiber Optic Cleaning Guidelines.................6 Electrostatic Discharge Precautions..............7 Safety Certifications....................8... -
Page 4: About The Mcpc Medialinx
10 Mbps or 100 Mbps and HDX or FDX (including Flow Control). Install McPC MediaLinX into any PC with a standard PCI slot. McPC MediaLinX includes one RJ-45 connector for the twisted pair port and a pair of ST or SC connectors. -
Page 5: Pci Version
Align the McPC MediaLinX in the slot Screw the the McPC MediaLinX into the computer casing’s bracket Make sure the McPC MediaLinX does not extend past the edge of the case Attach the keyed mini-power connector to the McPC MediaLinX Attach the male end of the “Y”... -
Page 6: Isa Version
14. Align the McPC MediaLinX in the slot 15. Screw the the McPC MediaLinX into the computer casing’s bracket 16. Make sure the McPC MediaLinX does not extend past the edge of the case 17. Attach the keyed mini-power connector to the McPC MediaLinX 18. -
Page 7: Specifications (Pci And Isa Version)
Specifications (PCI and ISA Version) Environmental Operating Temperature 32° - 104° F (0° - 40° C) Storage Temperature 0° - 160° F (-20° - 70° C) Humidity: 5 - 95% (non-condensing) Power Consumption (Typical) Current Draw 0.7A @ 5VDC Input Specifications Power Input: 5V... -
Page 8: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 9: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 10: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 11: Safety Certifications
Safety Certifications CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC). For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McPC 100Mbps is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
