Summary of Contents for Ikan VT8000

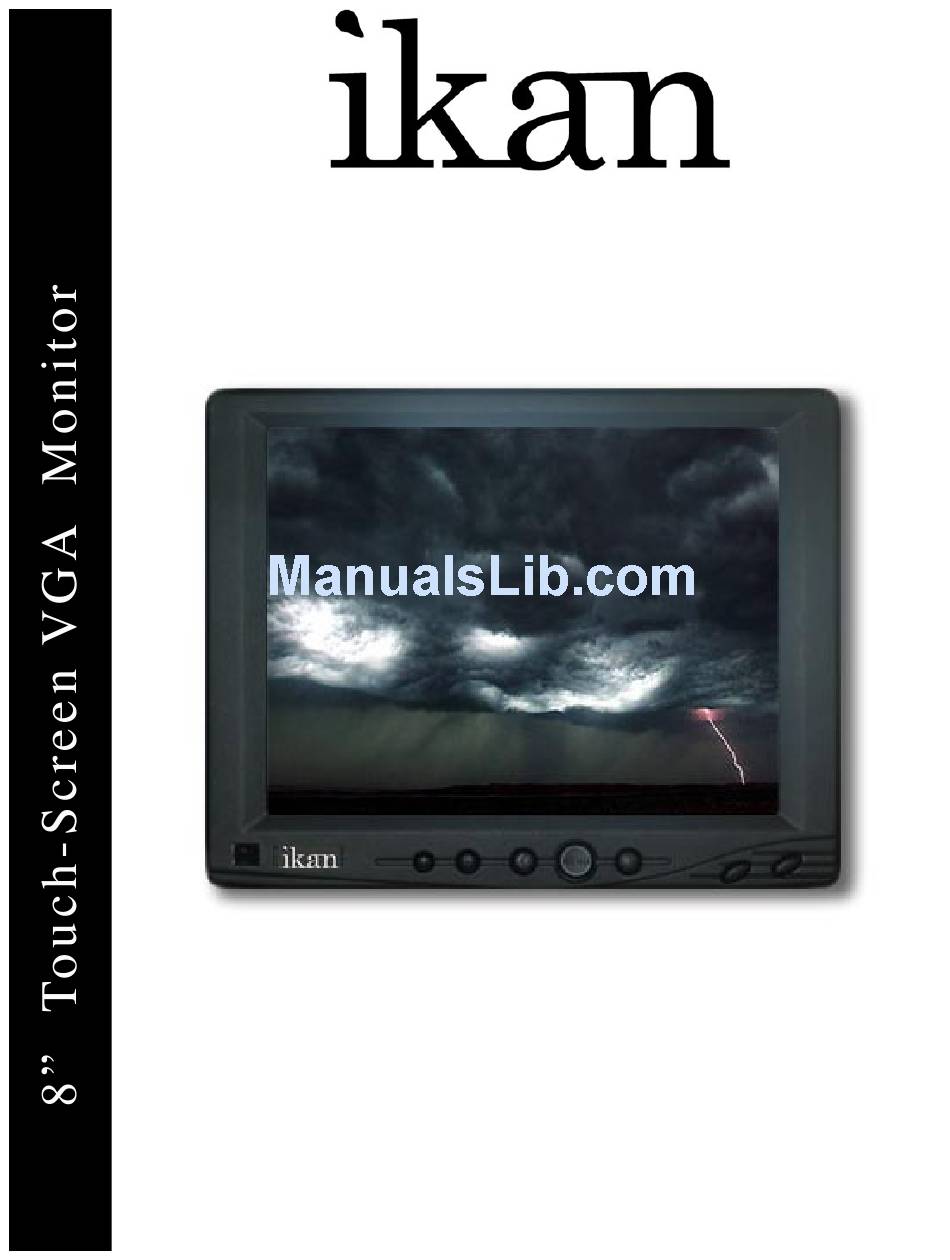

- Page 1 Userʼs Manual VT8000...
- Page 2 Dear Customers Thank you for purchasing the ikan VT8000 8” Touchscreen VGA Monitor. The 8” VGA Monitor is a small versatile LCD monitor that hasVGA capabilities. It also includes video inputs allowing it to perform double duty as a video monitor. Using the Touch screen feature you could use this as a interactive display in a kiosk or other display.
-
Page 3: Table Of Contents
Contents Appearance ............Operation ............Main Specifications ......... Accessories ............Troubleshooting ..........Contact Information ......... -
Page 4: Appearance
Appearance Figure 1. (VT8000) 1. POWER BUTTON: on / off / stand by 2. PC / AV BUTTON: VGA AV 3. “>” BUTTON: menu selection horizontal image reverse in video state 4. MENU BUTTON: Activate OSD menu by using “<” or “>”... - Page 5 Appearance Figure 2. (VT8000-2) SIDE PANEL JACKS: 1. DC INPUT: DC12V 2. COMBINE INPUT: including VGA, video1, video2, audio, DC12V in and S Video 3. Stylus pen for touch screen REMOTE CONTROL: 1. ON / OFF BUTTON 2. MUTE 3. DISPLAY INPUT MODE 4.
-
Page 6: Operation
Oper ati on 1. POWER ON/OFF/STANDBY: Always use the enclosed power supply. After connecting the power, the monitor will be in at standby mode. Press the “pow” button on the monitor or the “power” button on the remote control.to turn on the monitor. Press the same button again, the monitor will return to its standby mode. - Page 7 Oper ati on When the unit is connected to a camera or DVD player, you can plug the AV cable (enclosed) into the AV input jack, then connect the cable terminal to the external AV signal (See figure 2). The black end connects to the DC 12V power, the red end to video 1, the yellow end to video 2 and the white one to audio.
- Page 8 Oper ati on 6. ANALOG VOLUME ADJUSTMENT UNDER AV MODE “VIDEO” This option is only available under A/V mode. See the description below: From left to right: brightness, contrast, hue, color, display the signal of the current A/V input, exit. When the unit mode is: A/VI or A/V2, you can relect from the main menu for the adjustment as below: (1) A specific option from the main menu, confirm by pressing “menu”...
-
Page 9: Main Specifications
Main Specifications Model VT8000 Display Screen TFT LCD 921600 Pixels Color System PAL-4.43; NTSC-3.58 Audio Output 100mW Power Consumption 10 Watts Input Voltage DC 11V-13V Size 8.11”(L) X 6.41”(H) X 1.55”(W) inches Weight 1.05 lbs A c c e s s o r i e s... -
Page 10: Troubleshooting
Trouble Shooting Before sending the unit for service, make sure to do the following simple checks. 1. UNDER THE TV / AV MODE: Case (condition) Countermeasures The color saturation, contrast and brightness are not properly tuned, ad- Black & white picture just them in “image mode”... -
Page 11: Trouble Shooting
Trouble Shooting 2. UNDER THE PC MODE: (1) Image unstable Press and retain for one second for automatic adjustment. Follow the menu instruction to adjust manually. Choose correct refresh rate and different aspect ratio. (2) Check if theVGA cable is connected properly, and that there are no pins in the VGA jack bent or broken. -
Page 12: Contact Information
Contact Information Our Street Address is: ikan corporation 3903 Stoney Brook Dr. Houston, Tx 77063 Find us on the Web at: http://www.ikancorp.com Email us at: info@ikancorp.com By Telephone: 1-713-272-8822... - Page 13 CORPORATION © 2004...
