OWNER/OPERATOR MANUAL
WARNING
Before using our products, please read this
manual carefully to understand the proper
use of your unit.

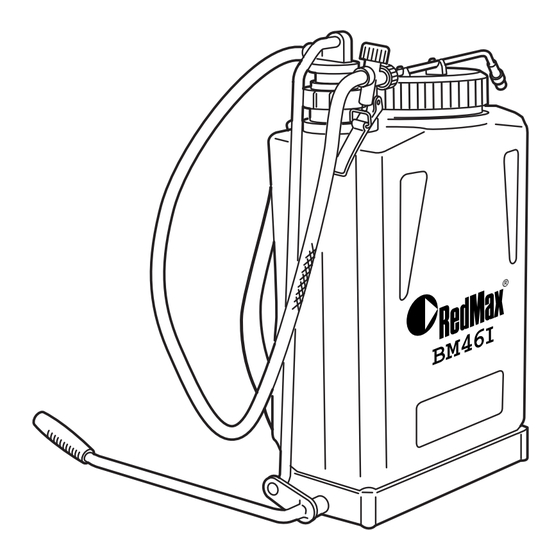

BACKPACK SPRAYER
BM46I
This sprayer is not designed to be used with acids of any
kind, corrosive products like caustic soda, gasoline,
materials capable of generating heat, hot fluids, explosive
or highly volatile products.
USE OF THESE AND OTHERS EXPOSE USERS TO
SERIOUS INJURY AND EVEN DEATH.
WARNING
MCO080103 (801)
