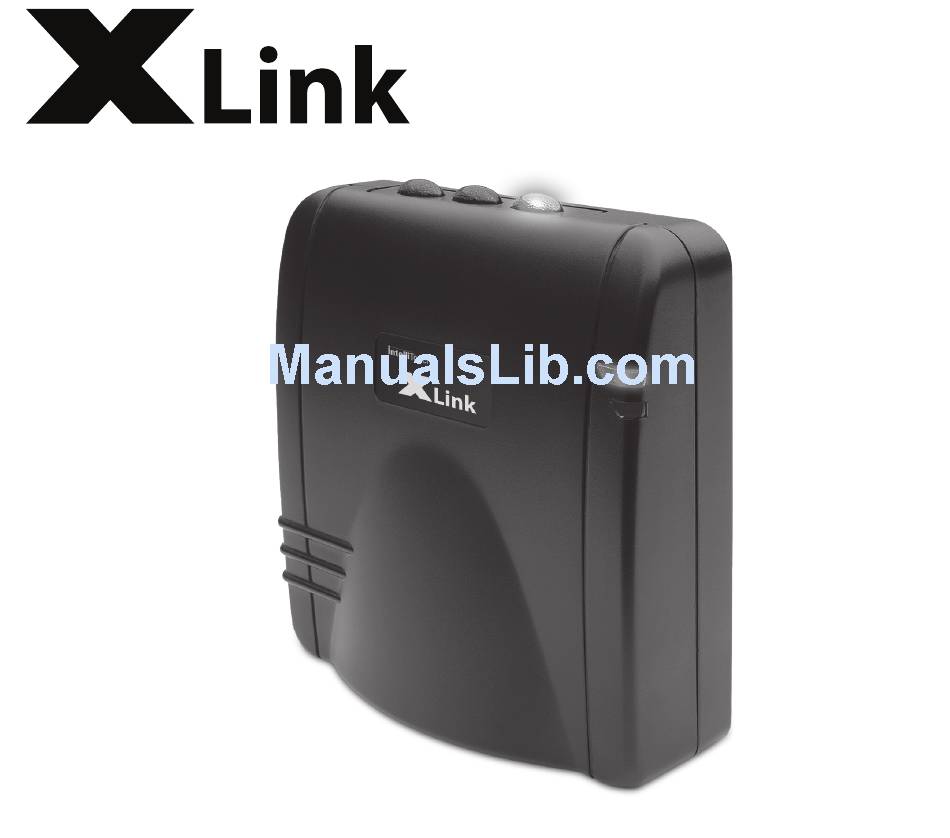

- Page 1 ITC-BT Cellular Bluetooth Gateway Owner’s Manual...
-
Page 2: Table Of Contents
Table of ConTenTs Introduction ............................3 Package Contents ..........................3 XLink Connections Diagram ......................4 Setup ..............................5 Pairing your Bluetooth Cell Phone to the XLink.............6 Automatic Bluetooth Connection ..................7 Manual Bluetooth Connection .....................8 Testing the Setup ..........................8 Light Indicators ..........................9 Using the XLink ..........................10 Placing a Call ..........................10 Selecting a Line ..........................11 Receiving a Call ..........................11... -
Page 3: Introduction
InTroduC TIon Congratulations on your purchase of the XLink ITC-BT Cellular Gateway. You will now be able to access your cell phone calls from any standard telephone connected to the XLink. XLink ITC-BT is designed to work with your standard home phone independently of your telephone service. -
Page 4: Xlink Connections Diagram
XlInk ConneC TIons dIagr am CELL PHONE #3 Button & Status Light CELL PHONE #2 Button & Status Light CELL PHONE #1 Button & Status Light POWER INDICATOR ERROR LIGHT TELEPHONE CORD CONNECTION POWER ADAPTER CONNECTION USB CONNECTION... -
Page 5: Setup
seTuP STAND 1. Connect stand to your XLink as included in HOME PHONE your gift box. 1. Plug a standard analog corded or cordless telephone into the XLink using a regular telephone cord. 2. Plug the supplied power adapter into the XLink and the other end into a wall power outlet. -
Page 6: Pairing Your Bluetooth Cell Phone To The Xlink
PaIrInG your Blue TooTh Cell Phone To The XlInk Each XLink ITC-BT can be paired to three different cell phones, one for each line. To pair a bluetooth cell phone to a line perform the following steps: 1. Press and hold one of the three line buttons on the XLink ITC-BT until it flashes rapidly (keep button pressed for approximately 4 seconds). -
Page 7: Automatic Bluetooth Connection
XLink and the line light will turn solid blue to indicate the connection. If you are on a call and walk into range, the XLink ITC-BT and cell phone will automatically connect and route the call to an extension set. Simply pick up an extension set to continue the call. -
Page 8: Manual Bluetooth Connection
manual Blue TooTh ConneC TIon Should you not want live calls to be transferred automatically or may want to force the cell phone to disconnect from the XLink. When a line is connected (blue light remains on) pressing the line button will disconnect that line and the light will turn off once disconnected. -
Page 9: Light Indicators
Indicates the XLink has been connected to an active telephone line. Immediately disconnect any telephone line connections until the RED light turns off. WARNING: • When the XLink ITC-BT is plugged into an active land line it may interfere with the proper operation of that land line. -
Page 10: Using The Xlink
Blue Solid Indicates the selected line is connected to cell phone Blue Fast Flash Indicates the selected line is in pairing mode. Use your cell phone to search and pair to the XLink. Blue uneven Flash Indicates the selected line is connected to cell phone and there is an incoming call on this line. -
Page 11: Selecting A Line
After picking up a telephone connected to the XLink, you should hear a steady dial tone, if you hear an error tone (series of rapid beeps), there are no lines available for an outgoing call. In this case, check to ensure that you have at least one cell phone paired and connected to the XLink. -
Page 12: Force Call Connection
You can also tell which line is ringing by looking at the line buttons on top of the XLink. The blue light for a ringing line will flash with a unique cadence. ForCe C all ConneC TIon sometimes dial tone will be heard when an extension telephone is picked up to continue an active call that was transferred from your cell phone to the XLink. -
Page 13: Voice Mail
voICe maIl You can access your cell phone voice mail from extension telephone. Before this feature will work you may have to program your voice mail number into the XLink. 1. Pick up an extension telephone. Listen for dial tone. 2. -
Page 14: Caller Id
C aller ID Caller ID will display the incoming call information on the LCD of your extension sets. For this feature to work, both the cell phone and your extension telephones must support caller ID. NOTE: • This feature may not be supported by all cell phones. •... -
Page 15: Computer Connectivity
3. Dial # # 4. Say name or follow voice prompts from cell phone. NOTE: • Not all cell phones support this feature and not all cell phones enable the XLink to access this feature. ComPuTer ConneC TIVIT Y The XLink has a USB port that allows the XLink to communicate with a computer running the proper software (not supplied). - Page 16 No cell phones are currently connected. Ensure a cell phone that has been paired (see section Pairing your Bluetooth Cell Phone to the XLink) with the XLink ITC-BT is within range. Ensure the line is in Auto Connect mode (see section Automatic Bluetooth Connection).
- Page 17 Voice dialing does not work Not all cell phones support this feature. Some flip cell phones require that the flip cover be opened for this feature to work. speed dialing does not work Not all cell phones support this feature. Some flip cell phones require that the flip cover be opened for this feature to work.
-
Page 18: Warranty
Warr anT Y For the latest service information, please consult our website: www.xlinkbtgateway.com IntelliTouch Communications (Intellitouch) warrants this product against manufacturing defects in material and workmanship under normal use for one (1) year from date of purchase from IntelliTouch and its authorized franchisees and dealers. Except as provided herein, IntelliTouch makes no express warranties and any implied warranties, including those of merchantability and fitness for a particular purpose, and are limited in duration to the duration of the written limited warranties contained... -
Page 19: Safety And Regulations
refund is made, become the property of IntelliTouch. New and reconditioned parts and products are warranted for the remainder of the original warranty period. The warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current: (b) any repairs other than those provided by an IntelliTouch authorized service facility;... - Page 20 bathroom sink, pool, etc. 5. Never place this unit near radiators or near a place where proper ventilation is not guaranteed. 6. Use only the power source supplied with this unit. 7. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
-
Page 21: Fcc Notices
FCC noTICeS This unit has been tested and found to comply with the limits for a Class B digital device as specified in Part 15 of the FCC rules. These limits provide reasonable protection against radio and TV interference in a residential area. However, your equipment might cause TV or radio interference even when operating properly. -
Page 22: Wall Mount Info
Wall mounT Info This unit is wall mountable. Use the two arrows on the bottom of this page as a guide to position two screws (not included) into the wall. Then slide the back of the unit onto the two screws. 2 Inches 2 1/2 Inches 2 1/2 Inches... - Page 23 noTeS...
- Page 24 Grace Digital Inc. San Diego, CA For Customer service contact your point of sale or visit: www.xlinkgateway.com Or call us at: (866) 446-0961 or (858) 201-4113 UG 11 XLINk ITC-BT...
