Grace Digital Victoria Jukebox GDI-JBP100 User Manual

Jukebox player with cd, am/fm radio, usb & sd/mmc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

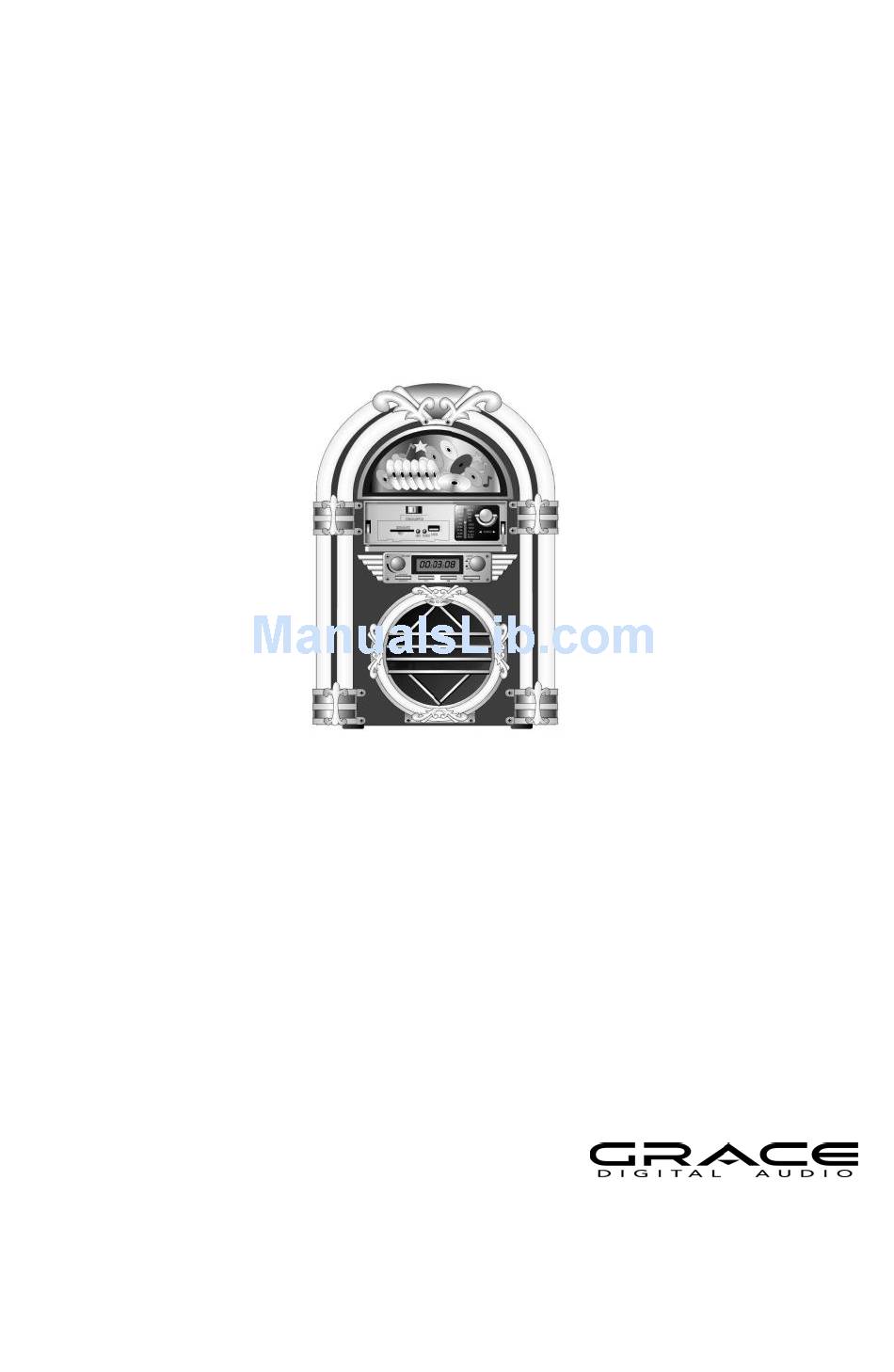

JUKEBOX
Victoria Jukebox Player with CD, AM/FM Radio, USB & SD/MMC
by Grace Digital
User's Guide
____________________________________________________________
Model No. GDI-JBP100
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Victoria Jukebox GDI-JBP100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grace Digital Victoria Jukebox GDI-JBP100

  • Page 1 JUKEBOX Victoria Jukebox Player with CD, AM/FM Radio, USB & SD/MMC by Grace Digital User’s Guide Model No. GDI-JBP100 ____________________________________________________________...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using electrical products, basic precautions should always be followed including: 1. Read Instructions - All the safety and operating instructions should be read before operating unit. 2. Retain Instructions - Safety and operating instructions should be retained for future reference. 3.
  • Page 3 14. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, nor in a fall path into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

  • Page 4: Safety Precautions

    Precautions & Safety Information CAUTION: 1. Use of controls and adjustments or performance of procedures other than those specified herein, may result in hazardous radiation exposure. 2. Do NOT use the product in a defective state. IF the unit appears to not operate as the unit should, contact a qualified service centre.

  • Page 5: Before Use

    Before Use 1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors. 2.
  • Page 6 Location of Functions FRONT 1. CD/AM/FM Switch 6. VOLUME Knob 11. LED LIGHT ON/OFF Button 2. USB Jack 7. LCD Display 12. FAST FORWARD Button 3. SD/MMC Jack 8. PLAY/PAUSE Button: CD USB SD/MMC 4. SD Indicator 9. STOP Button 13.
  • Page 7 BACK Speaker FM Antenna AC Power Adapter Connection...
  • Page 8 Listening to a Compact Disc Compact Disc Handing the Discs: This unit has been designed specifically for sound reproduction from compact discs bearing the mark. No other discs can be used.  Always place the compact disc in the disc tray with the label facing upward.

  • Page 9: Basic Operation

    Basic Operation 1. Prepare for use connect the power plug into the wall outlet. 2. Rotate the VOLUME +/- knob clockwise to turn the radio on and adjust to desired sound level. Listening to a CD 1. Push the CD/AM/FM button to the CD position. If you want to switch from SD to CD function, long press the PLAY/PAUSE button / CD/USB/SD switch the third time.
  • Page 10 4. Press the F.R button once to skip to the start of the current track. Press the F.R button twice to skip to the start of the previous track. Fast Reverse (F.R) and Fast Forward (F.F) You can reverse or forward to any point in a selected track by pushing and holding the F.R or F.F button.
  • Page 11 Play a USB Audio Product or MMC/SD Card 1. Open the cover. 2. Connect an external audio source.  Insert a USB audio product (i.e. a MP3 player) into the USB device jack. Long press the PLAY/PAUSE button / CD/USB/SD switch twice to USB function and the USB indicator will light up.

  • Page 12: Listening To The Radio

    Fast Reverse (FR) and Fast Forward (FF) You can reverse or forward to any point in a selected track by pushing and holding the F.R or F.F button. NOTE: Do not push both buttons together as this may damage the unit. As the unit is tracking quickly, forward or backward you will hear your selection playing at a distorted speed.

  • Page 13: Specifications

    Specifications AMPLIFIER section Output Power...........1.5 W +1.5 W Frequency Response........60 to 20, 000 Hz TUNER section FM Section Frequency Range..........88to 108 MHz AM Section Frequency Range..........530 to 1600 KHz CD PLAYER section Frequency Response........60 to 20, 000 Hz +/-4 dB Signal-to-Noise Ratio........

  • Page 14: Troubleshooting Guide

    Troubleshooting Guide In case of trouble with the unit, please look through this chart and see if you can solve the problem by yourself before calling your dealer. Problem Cause Solution Power does not come on when the Unit is unplugged. Connect the unit to the AC power power switch is pressed.
