  • Page 1 Ranger Communications Inc. RCI-6300F HP RCI-6300F TB 10 Meter Amateur Radio Ranger Service Manual...
  • Page 2: Table Of Contents

    RCI-6300F HP TABLE OF RCI-6300F TB CONTENTS PAGE CHAPTER 1 SPECIFICATIONS General ..........
  • Page 3: Specifications

    Dimensions (RCI-6300F HP) 2-3/8”(H) x 7-7/8”(W) x 10-3/4”(D). Dimensions (RCI-6300F TB) 3-7/8”(H) x 7-7/8”(W) x 9-1/4”(D). Weight 5 lb. (RCI-6300F HP) ; 7lb 6oz (RCI-6300F TB) 1.1 TRANSMITTER RF Power Output (AM/FM) 10 W (RCI-6300F HP) (DC Carrier Power) 50W (RCI-6300F TB) RF Transmit Modes AM/FM.
  • Page 4: Introduction

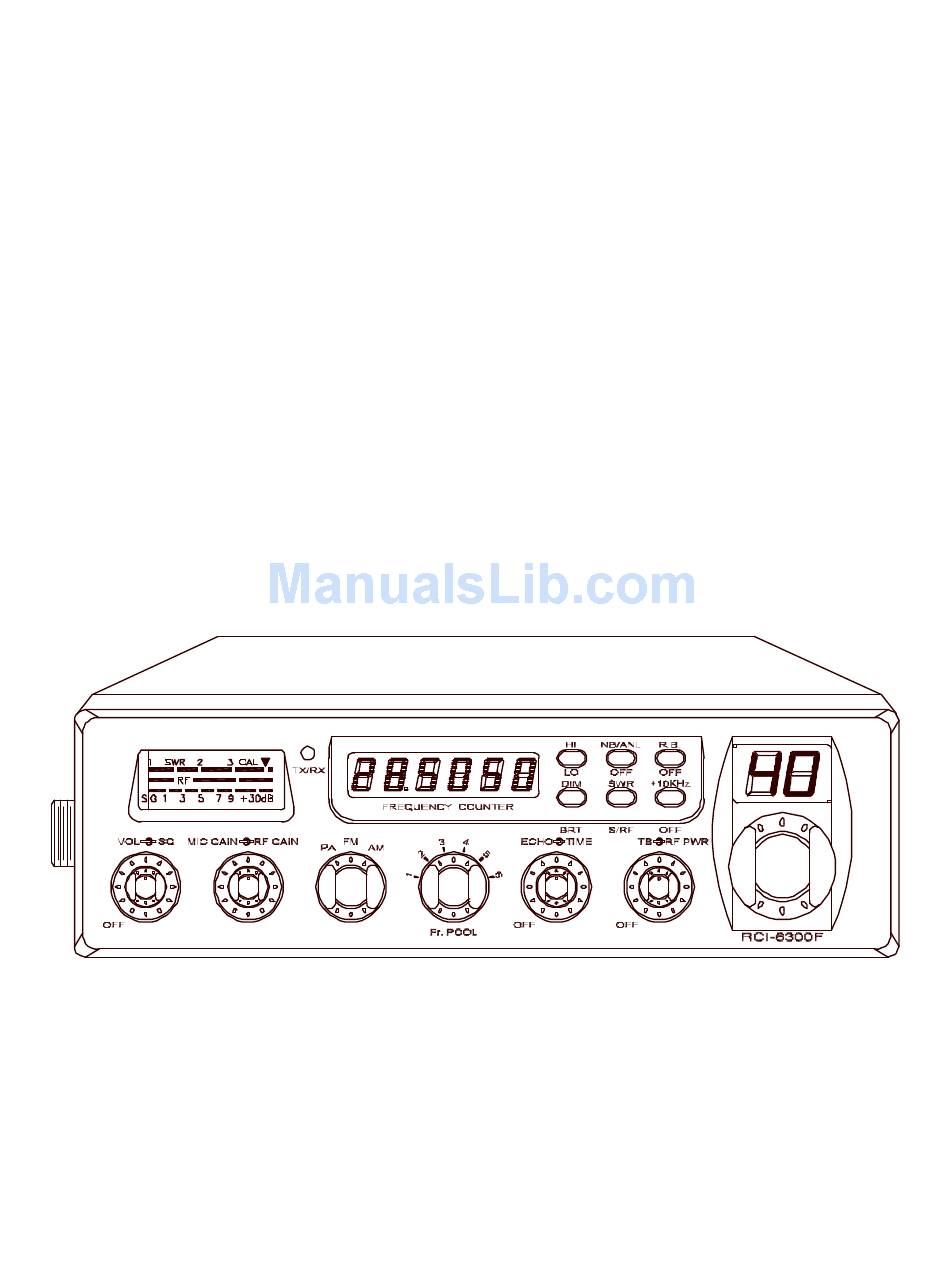

    RCI-6300F TB OPERATION Figure 2-1 Front Panel 2.0 INTRODUCTION This section explains the basic operating procedures for the RANGER RCI-6300F HP / RCI-6300F TB mobile transceiver. 2.1 CONTROL AND CONNECTIONS 2.1.1 FRONT PANEL Refer to the above Figure 2-1 for the location of the following controls.
  • Page 5 Adjusts the microphone gain in the transmit and PA modes. This controls the gain to the extent that full talk power is available several inches away from the microphone. In the Public Address (PA) mode, the control functions as the volume control. 4.
  • Page 6: Rear Panel

    17. S-RF/SWR SWITCH This is a two-function switch. In the S-RF position, the meter will indicate the strength of the signal being received, as well as the relative RF output of transmission. To use the meter to measure the standing wave ratio, turn the switch to the SWR position. The SWR function is self-calibrating. 18.
  • Page 7: Frequency Chart

    Figure 2-2 Rear Panel 1. ANTENNA This jack accepts 50 ohms coaxial cable with a PL- 259 type plug. 2. POWER This connector accepts 13.8V DC power cable with built-in fuse. The power cord provided with the radio has a black and red wire. The black goes to negative and the red goes to positive. 3.
  • Page 8: Microphone

    28.245 28.695 29.145 28.315 28.765 29.215 28.255 28.705 29.155 28.325 28.775 29.225 28.265 28.715 29.165 28.335 28.785 29.235 28.285 28.735 29.185 28.355 28.805 29.255 28.295 28.745 29.195 28.365 28.815 29.265 28.305 28.755 29.205 28.375 28.825 29.275 28.315 28.765 29.215 28.385 28.835 29.285 28.335...
  • Page 9: Operation

    2.3 OPERATION 2.3.1 PROCEDURE TO RECEIVE 1. Be sure that power source, microphone and antenna are connected to the proper connectors before going to the next step. 2. Turn unit on by turning VOL knob clockwise on transceiver. 3. Set the VOL to a comfortable listening level. 4.
  • Page 10: Circuit Description

    Figure 2-4 Microphone plug pin numbers viewed from rear of pin receptacle. CHAPTER 3 RCI-6300F HP CIRCUIT RCI-6300F TB DESCRIPTION 3.0 INTRODUCTION This section explains the technical theory of operation for the RCI-6300F HP / RCI-6300F TB mobile transceiver. - 9 -...
  • Page 11: Pll Circuit

    3.1 PLL CIRCUIT The Phase Lock Loop (PLL) circuit is responsible for developing the receiver’s first local oscillator signal and the transmitter’s exciter signal. The PLL circuit consists primarily of IC2, IC3, IC4, IC5 Q25, Q27, Q28, Q29 and Q61. The PLL circuit is programmed by the rotary channel switch GPS-0501. The switch communicates the correct binary data information to the programmable divider inside of IC3.
  • Page 12 - 11 -...
  • Page 13 - 12 -...
  • Page 14 RCI-6300F HP / RCI-6300F TB FREQUENCY COUNTER CIRCUIT DIAGRAM - 13 -...
  • Page 15 RCI-6300F HP / RCI-6300F TB ECHO BOARD (EB-99) CIRCUIT DIAGRAM - 14 -...
  • Page 16: Alignment

    RCI-6300F HP CHAPTER 4 RCI-6300F TB ALIGNMENT 4.0 REQUIRED TEST EQUIPMENT & DC Power Supply (13.8VDC, 20A) Frequency Counter (100 MHz) " RF Wattmeter (25~60 MHz, 100W) RF Signal Generator (100 MHz) Multimeter (Digital) Automatic Distortion Meter Automatic Modulation Meter...
  • Page 17: Receiver Alignment

    CH 1 and CH 40. AM TX Power Set radio to Fr Pool 2, CH 19 AM TX mode. VR14 10W (RCI-6300F HP) Modulation off. 50W (RCI-6300F TB) RF Power Set radio to Fr Pool 2, CH 19 AM TX mode.
  • Page 18 POINT AM Sensitivity Set radio to Fr Pool 2, CH 19 AM RX mode. L2,3,5,6,7,8, Audio output > 2V Set RF Gain Fully Clockwise. 9,10 S/N > 10 dB. Set SQ Fully Counter Clockwise. Set VOL Control at 2 o’clock. Set NB-ANL/OFF switch to OFF position.
  • Page 19 Figure 4-2 Receiver test setup - 18 -...
  • Page 20 Figure 4-3 Main PCB Adjustment Location - 19 -...
  • Page 21: Maintenance

    RCI-6300F HP CHAPTER 5 RCI-6300F TB MAINTENANCE 5.0 PRECAUTIONS The inherent quality of the solid-state components used in this transceiver will provide many years of continuous use. Taking the following precautions will prevent damage to the transceiver. (i) Never key the transmitter unless an antenna or suitable dummy load is connected to the antenna receptacle.
  • Page 22 Information on most electrical and mechanical parts is included in the parts list. The reference designators are in alphanumeric order. 6.1 ORDERING REPLACEMENT PARTS Parts orders should be referred to the Parts Department at: Ranger Communications, Inc. 3377 Carmel Mountain Road San Diego, CA 92121 Tel: 858-259-0287...
  • Page 23 PART LIST: RCI-6300F HP / RCI-6300F TB ROTARY SW P.C.B ITEM REFERENCE NUMBER RANGER PART DESCRIPTION NUMBER EPT690020Z ROTARY SW P.C.B R300-R310,D325, RCY010004Z 0 OHM 0.1W D331,D336 R312-R325 RCY011024Z 1K OHM 0.1W R327 RCY012224Z 2.2K OHM 0.1W R326 RCY014724Z 4.7K OHM 0.1W...
  • Page 24 PART LIST: RCI-6300F HP ANT P.C.B ITEM REFERENCE NUMBER RANGER PART DESCRIPTION NUMBER EPT360042Z ANT P.C.B RCY010004Z 0 OHM 0.1W RCY014714Z 470 OHM 0.1W R3,R4 RCY011014Z 100 OHM 0.1W RCY013314Z 330 OHM 0.1W R5,R11 RCY011024Z 1K OHM 0.1W RCY012224Z 2.2K OHM 0.1W RCY014724Z 4.7K OHM 0.1W...
  • Page 25 PART LIST: RCI-6300F TB POWER P.C.B ITEM REFERENCE NUMBER RANGER PART DESCRIPTION NUMBER EPA010010A POWER P.C.B R904 RCU141094Z 1 OHM 1/4W R905,R906 RCU141004Z 10 OHM 1/4W R909 RCP141034Z 10K OHM 1/4W R902 RCM141024A 1K OHM 1/4W R911 RCP121034Z 10K OHM 1/2W...
  • Page 26 NUMBER COPPER SIDE RCY011014Z 100 OHM 0.1W C901 CC0501015A 100PF 50WV C943 CC0500591A 0.5PF 50WV C906,C926,C932, CC0501037L 0.01uF 50WV C937,TERMINALx2 C905,C920,C921,C923x2, CC0501047L 0.1uF 50WV C924x2,C925,C935,C939, C941,T901-902x2, C927-C931,C933,C940 C918 CD3006804Z 68PF 300WV C916 CD3001514Z 150PF 300WV C917 CD5001018Z 100PF 500WV C908,C910,C936 CD3001814Z 180PF 300WV C945...
  • Page 27 PART LIST: RCI-6300F HP / RCI-6300F TB BAND SWITCH P.C.B ITEM REFERENCE NUMBER RANGER PART DESCRIPTION NUMBER EPT630030Z BAND SWITCH P.C.B RCP164704Z 47 OHM 1/16W R2,R3 RCP161024Z 1K OHM 1/16W ED1N04148Z DIODE 1N4148 T2SC00945P TR 2SC945P J1,J2,J12-J14 EX07N48223 PCB CONN/S 2PIN...
  • Page 28 PART LIST: RCI-6300F HP / RCI-6300F TB MIC P.C.B ITEM REFERENCE NUMBER RANGER PART DESCRIPTION REMARK NUMBER EPT690050Z MIC P.C.B C502-C504 CC0501027L 0.001uF 50WV RCI-6300F HP C501 CC0501027L 0.001uF 50WV C505,C506 CC0501037L 0.01uF 50WV L501 ECCHK16001 CHOKE COIL 5.6uH L502...
  • Page 29 - 28 -...
  • Page 30 PART LIST: RCI-6300F HP / RCI-6300F TB COUNTER P.C.B ITEM REFERENCE NUMBER RANGER PART DESCRIPTION NUMBER EPT900040Z COUNTER P.C.B RCY010004Z 0 OHM 0.1W R19-R39 RCY011014Z 100 OHM 0.1W RCY013314Z 330 OHM 0.1W RCY014714Z 470 OHM 0.1W R4,R5 RCY012224Z 2.2K OHM 0.1W RCY014724Z 4.7K OHM 0.1W...
  • Page 31 PART LIST: RCI-6300F HP / RCI-6300F TB LED DISPLAY P.C.B ITEM REFERENCE NUMBER RANGER PART DESCRIPTION NUMBER EPT900022Z LED DISPLAY P.C.B DISPLAY PCB EX03N40003 LED DISPLAY 1,2,3,4,5,6 EX03N40476 LED DISPLAY TX/RX EX01N40004 ON,NB/ANL,R.B,S/RF, EWPS33033X PUSH SW. SWR,+10K DISPLAY PCB EX07N48928...
  • Page 32 - 31 -...
  • Page 33 PART LIST: RCI-6300F HP / RCI-6300F TB ECHO P.C.B (EB-99) ITEM REFERENCE NUMBER RANGER PART DESCRIPTION NUMBER EPT0SSB50F ECHO P.C.B R3,R16 RCY011014Z 10 OHM 0.1W RCY014714Z 470 OHM 0.1W RCY011024Z 1K OHM 0.1W RCY012224Z 2.2K OHM 0.1W R17,R29 RCY014724Z 4.7K OHM 0.1W...
  • Page 34 RCI-6300F HP / RCI-6300F TB MAIN PCB. REMARK: COPPER SIDE (WHITE) - 33 -...
  • Page 35 C195 CC0501804L 18PF 50WV PART LIST C24,287 CC0503304L 33PF 50WV RCI-6300F HP MAIN PCB CC0508204L 82PF 50WV C4,53 CC0501015L 100PF 50WV C137 CC0501515L 150PF 50WV REFERENCE RANGER DESCRIPTION C56,222 CC0501815L 180PF 50WV NUMBER PART NO. CC0502215L 220PF 50WV EPT690010Z MAIN P.C.B...
  • Page 36 158,275,276 L13,39,41 ECBAD18526 BEAD COIL C80,181 CE0252267Z 22UF 25WV VR16 RE10200041 S/F/R 1K C37,175 CE0254767Z 47UF 25WV VR14,18 RE50200042 S/F/R 5K C107,156,238,293 CE0161077Z 100UF 16WV VR1,5 RE10300031 S/F/R 10K C152,179 CE0163377Z 330UF 16WV RE10400043 S/F/R 100K CE0104777Z 470UF 10WV RE50400087 S/F/R 500K C243,248 CE0251087Z...
  • Page 37 RCI-6300F HP MISC. PARTS REFERENCE RANGER DESCRIPTION NUMBER PART NO. MM7878041B HEAT SINK MT3001021X SET CHASSIS MT3600050X DC SOCKET HOLDER 2SB754Y XZZZ90020Z INSULATING PLATE Q47,48,49 XZZZ90003Z INSULATING PLATE Q47,48,49 XZZZ90358Z INSULATING PLATE LZZZ61008Z IC SHIELD B DC(2) JS053006MN SET SCREW...
  • Page 38: Parts List

    PART LIST C24,287 CC0503304L 33PF 50WV RCI-6300F TB MAIN PCB CC0508204L 82PF 50WV C4,53 CC0501015L 100PF 50WV C137 CC0501515L 150PF 50WV REFERENCE RANGER DESCRIPTION C56,222 CC0501815L 180PF 50WV NUMBER PART NO. CC0502215L 220PF 50WV C31,136 CC0502715L 270PF 50WV EPT690010Z MAIN P.C.B 4.7 Ω...
  • Page 39 50WV ECCHK16176 CHOKE COIL CM0502245Z .22UF 50WV ECCHK16246 CHOKE COIL CE0504747Z 0.47UF 50WV ECSPG18003 SPRING COIL C67,75,153,157,170, CE0501057Z 1UF 50WV ECSPG18077 SPRING COIL 186,187,198 ECSPG18075 SPRING COIL C159,214,148 CE0502257Z 2.2UF 50WV ECSPG18365 SPRING COIL C38,103,182 CE0504757Z 4.7UF 50WV ECSPG18001 SPRING COIL C13,21,22,44,82,115, CE0251067Z 10UF 25WV...
  • Page 40 Q47,49 JS052012MN SET SCREW JS013006MV SET SCREW JS052010MN SET SCREW Q47,49 JN242012ZS RCI-6300F TB MISC. PARTS REFERENCE RANGER DESCRIPTION NUMBER PART NO. PT9000060K FRONT PANEL PT9000020E CH KNOB PT9000070E BAND KNOB PT9000040E INNER KNOB PT9000050E OUTER KNOB PT2100041C DISPLAY WINDOW...
  • Page 41 RCI-6300F HP SCHEMATIC DIAGRAM...
  • Page 42 RCI-6300F TURBO SCHEMATIC DIAGRAM...
  • Page 43 RCI-6300F HP EXPLODE DRAWING...
  • Page 44 RCI-6300F TURBO EXPLODE DRAWING...
  • Page 45 AT6300040A COPYRIGHT 1999, RANGER COMMUNICATIONS INC.
