Summary of Contents for Pure Digital Contour Air 200i

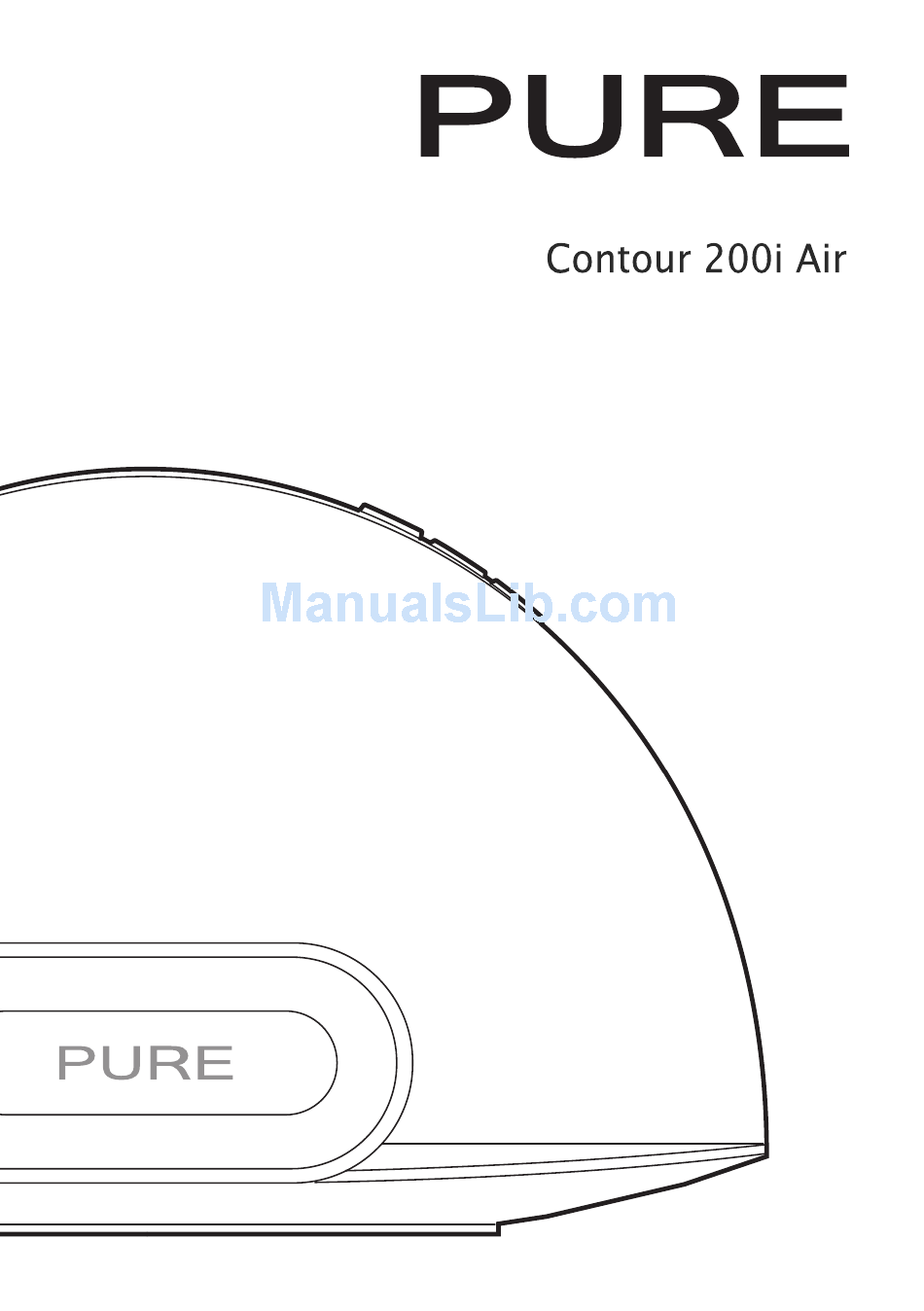

  • Page 1 Owner’s manual...

  • Page 2: Safety Instructions

    Safety instructions Copyright 1. Read these instructions – All the safety and operating instructions should Copyright 2011 by Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored be read before this product is operated. in a retrieval system, or translated into any human or computer language, in any 2.

  • Page 3: Table Of Contents

    Contents Getting started ................4 Introduction ........................4 Remote control .......................4 Controls and connectors ....................5 Front panel Status LED ....................6 Switching between Sleep, Standby and On..............6 Network setup.........................6 Preparing Contour to use AirPlay with Wi-Fi ........7 Preparing Contour to use AirPlay with an Ethernet cable ....10 Using AirPlay to play audio ............

  • Page 4: Getting Started

    Getting started Introduction Contour 200i Air can be used in a number of different ways: • As an AirPlay device for playing audio from iTunes on your computer or an iPod touch, iPhone or iPad with AirPlay — via your wireless network. See “Network setup” on page 6. •...

  • Page 5: Controls And Connectors

    Controls and connectors Standby Mute Press to switch between Volume down Sleep, Standby and On. Volume up See page 6. Status page Software Upgrade Status DC In Digital Coaxial Wi-Fi Setup Aux In Ethernet Connector for Connector for Button used when Connector for Connector for supplied mains...

  • Page 6: Front Panel Status Led

    Front panel Status LED When Contour is powered, the Status LED is visible through the front speaker mesh. The Status LED is also used to indicate the various states of Contour, by colour. Standby (bright) / Starting up (bright flashing) / Sleep (dimmed) Blue iPod/iPhone/iPad dock is active (flashing indicates that the connection to the docked product is preparing and also indicates remote activity)

  • Page 7: Preparing Contour To Use Airplay With Wi-Fi

    Preparing Contour to use AirPlay with Wi-Fi Introduction There are five stages in preparing Contour to use AirPlay if you are connecting Contour to your network with a wireless connection. Skip this section if you are using the wired connection method (see page 10).
  • Page 8 Stage 2: Connecting your setup device to Contour In the next setup stage you need to establish a temporary connection between your setup device and Contour. In order to achieve this, you need to create a wireless network to connect Contour to an iPod Touch, iPhone, iPad or laptop.
  • Page 9 Stage 4: Assigning Contour a unique name If you prefer, you can change the name that your network, iTunes and Apple device sees the Contour as. Carry out the following in the Contour Name Assignment area below to change Contour’s name: 1.

  • Page 10: Preparing Contour To Use Airplay With An Ethernet Cable

    Preparing Contour to use AirPlay with an Ethernet cable 1. Connect an Ethernet cable from the Ethernet port on the back of Contour to your router. Typical Ethernet setup 2. Insert the connector of the mains power adapter into the DC In socket on the rear of Contour.

  • Page 11: Using Airplay To Play Audio

    Using AirPlay to play audio Introduction AirPlay allows you to stream audio from an iPod touch, iPhone or iPad to a single Contour. AirPlay also allows you to stream audio from iTunes to one or more Contour devices. Playing audio from iTunes Once you have successfully added Contour to the same network as your iTunes computer, iPod touch, iPhone or iPad, it should be automatically detected.

  • Page 12: Playing Audio From An Ipod Touch, Iphone Or Ipad

    Playing audio from an iPod touch, iPhone or iPad On your iPod touch, iPhone or iPad, ensure you are connected to the same wireless network as the Contour. You should then be able to select your Contour from the list of AirPlay devices. On your iPod touch, iPhone or iPad, the AirPlay symbol will be white when any AirPlay device is available on the network.

  • Page 13: Listening To A Docked Ipod/Iphone/Ipad

    Listening to a docked iPod/ iPhone/iPad Compatibility The dock on Contour is compatible with most iPod, iPhone and iPad models. For the latest information, check the compatibility table on our website: www.pure.com/products/ipod- compatibility. Docking your device Dock your device onto the connector. Your device will start charging as soon as it is docked and will continue charging whether Contour is playing, in Standby or in Sleep mode.

  • Page 14: Using The Auxiliary Input

    Using the auxiliary input Connecting an auxiliary device Connect the line out or headphone socket of your auxiliary device to the Aux In socket on your Contour using a suitable cable. Selecting the auxiliary input Press Source until the Status LED is pink. Using the digital output Using an external digital output device You can connect Contour to a digital output device, such as compatible hi-fi system.

  • Page 15: Using Contour Setup Manager

    Using Contour Setup Manager Introduction Contour features a Setup Manager. The Setup Manager allows you to change various Contour settings and view Contour’s status. You can also use Setup Manager to carry out a software upgrade if a previous upgrade failed and you do not have access to the internet. You can access Contour Setup Manager after you have established a connection between your computer and Contour.
  • Page 16 Connection The Connection tab is divided into two main sections, Contour Name Assignment and Wireless Setup. Contour Name Assignment Wireless Setup Contour name assignment See page 9 for more information on how to assign a unique name for Contour. Automatic wireless setup See page 9 for information on automatic wireless setup.
  • Page 17 Advanced The Advanced tab is divided into two main sections, Proxy Server settings and IP address settings. Proxy Server Settings IP Address Settings Configuring Proxy Server settings If your network uses a proxy server to connect to the internet: 1. Tick the Use Proxy Server checkbox. 2.
  • Page 18 Status The Status tab displays a summary of Contour’s software/hardware information and also displays information about the state of the wireless connection. Connection Indicates if Contour is connected to a wireless network or not. Also indicates Status the wireless LAN type, i.e. Basic Service Set, Extended Service Set. Signal Displays the strength of the wireless connection between Contour and the Strength...
  • Page 19 Upgrade The Upgrade tab is only visible when you connect to Contour with an Ethernet cable. We recommend using automatic software updates for your Contour, which are delivered via the Wi-Fi connection when Contour is in Standby or Sleep mode. If the Status LED on Contour is static amber, a new version of software is being installed.

  • Page 20: Upgrading Software Manually

    Upgrading software manually Manual software updates We recommend that you use automatic upgrades to obtain the latest software updates (see above). However, there may be occasions where automatic software updates are not possible due to internet connection problems or if an automatic software upgrade failed for any reason, e.g., if there was a power cut during an automatic software upgrade.
  • Page 21 Software upgrade using a directly connected PC If an automatic or manual software upgrade failed and you have lost network connectivity, you can upload the latest version of software to Contour by making a direct connection between your PC and the Ethernet port on Contour. Note: Ensure that any wireless connections on your PC are disabled before carrying out the following steps.
  • Page 22 Updating software using Contour Setup Manager 1. Click the Upgrade tab and then click the Upgrade button. 2. The following dialogue box will appear, asking if you want to update Contour software via the Ethernet. Click OK to confirm. 3. Wait for the LED to change from white red slow flash to white blue slow flash (this can take up to 6 minutes) and move to...
  • Page 23 6. The following window will appear, summarising the software update task. Click Upgrade to begin the software update. 7. The following window will appear to indicate the software upgrade progress. Note: The software upgrade consists of two stages. Each stage needs to be completed from 1 to 100%.

  • Page 24: Help

    Help Hints and tips I cannot connect to my wireless network Ensure that your Contour is within range of your wireless router and that you are not located in a dead spot. I cannot connect to Contour Setup Manager after establishing a temporary wireless network connection Contour Setup Manager requires your setup device (computer, iPod, iPhone or iPad) to have DHCP (dynamic IP address) enabled on initial wireless setup.

  • Page 25: Specifications

    CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/ EC and 2006/95/EC). ETSI EN 300 401 compliant. Australian C-Tick N1600 and Electrical Safety. Hereby, Pure Digital declares that this Band II LPD device is in compliance with the essential requirements and other provisions of the Directive 1999/5/EC.

  • Page 26: Pure Warranty Statement For Australia

    Pure Warranty Statement for Australia This statement replaces any reference to warranty which may be contained elsewhere within this manual What do you need to do now? Option 1: You can register your purchase on-line at https://www.pure.com/au/register/register.asp Option 2: Or you can do nothing other than keep your proof of purchase as evidence of your purchase date. This proof of purchase would need to be presented if warranty service was ever required.
  • Page 28 www.pure.com Pure Pure - Vertrieb über: Imagination Technologies Ltd. Telanor AG Home Park Estate Unterhaltungselektronik Kings Langley Bachstrasse 42 Herts, WD4 8LZ 4654 Lostorf United Kingdom Suiza www.pure.com info@telanor.ch http://support.pure.com www.telanor.ch Pure Pure Australasia Pty Ltd Karl-Marx Strasse 6 PO Box 5049 64589 Stockstadt/Rhein Wonga Park Victoria 3115...
