SUPPLIED ACCESSORIES
This unit comes with the following accessories. Please confirm that
all the accessories are included.
P
Remote Control
(NF100UD)
INSTRUCCIONES EN ESPAÑOL INCLUDAS
IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING
AFTER READING OWNER'S MANUAL,
PLEASE CALL TOLL FREE 1-800-242-7158 OR VISIT OUR WEB SITE AT
http://www.Symphonic.us
P
P
AA batteries x 2
Owner's Manual
(1EMN21536)
PLEASE READ BEFORE USING THIS EQUIPMENT
20 inch COLOR TV/DVD
Owner's Manual
SC520FDG
FEATURES
• Auto Channel Programming
• Screen Saver
• Auto Power Off
• Parental Lock
• Resume Play
• Closed Caption Decoder
• Virtual Surround
Owner's Manual
Advertisement
Chapters
Table of Contents
Related Manuals for Symphonic SC520FDG
Summary of Contents for Symphonic SC520FDG

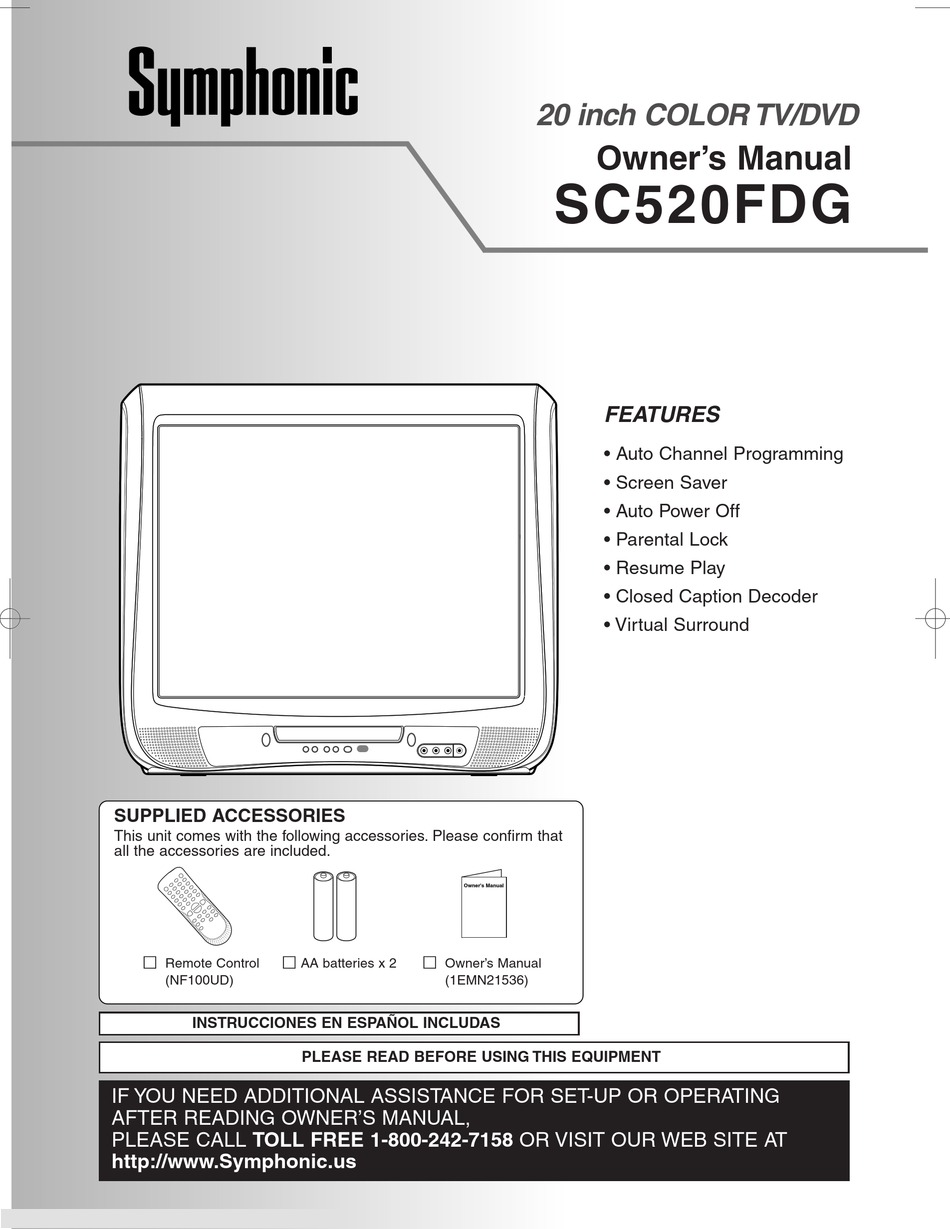

- Page 1 20 inch COLOR TV/DVD Owner’s Manual SC520FDG FEATURES • Auto Channel Programming • Screen Saver • Auto Power Off • Parental Lock • Resume Play • Closed Caption Decoder • Virtual Surround SUPPLIED ACCESSORIES This unit comes with the following accessories. Please confirm that all the accessories are included.
-
Page 2: Precautions
RECAUTIONS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THIS SYMBOL INDICATES THAT CAUTION DANGEROUS VOLTAGE CONSTITUTING RISK OF ELECTRIC SHOCK A RISK OF ELECTRIC SHOCK IS DO NOT OPEN PRESENT WITHIN THIS UNIT. - Page 3 14. Lightning - For added protection for this unit receiver during a. When the power-supply cord or plug is damaged or frayed. a lightning storm, or when it is left unattended and unused b. If liquid has been spilled, or objects have fallen into the unit. for long periods of time, unplug it from the wall outlet and c.
- Page 4 LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED.
-
Page 5: Table Of Contents
ABLE OF CONTENTS PRECAUTIONS ......2 PLAYING A DISC ..... . .15 IMPORTANT SAFEGUARDS . -
Page 6: Preparation For Use
REPARATION FOR USE ANTENNA/CABLE CONNECTIONS Plug the incoming cable into the ANT. jack on the rear of the unit. If your cable service supplies you with a converter box or if you use a satellite system, connect the box with this unit as shown below. -
Page 7: Connecting To A Digital Audio Device (Rear)
CONNECTING TO A DIGITAL AUDIO DEVICE (REAR) You can connect this unit to a digital audio device to enjoy the digital audio of DVD. Connect to an amplifier equipped with digital input jacks, such as MD deck or DAT deck. To play a DVD disc in a Dolby Digital Multi- channel surround format in this unit, connect to a Dolby Digital decoder. -
Page 8: Operating Controls And Functions
PERATING CONTROLS AND FUNCTIONS - FRONT PANEL - POWER OPEN / CLOSE VIDEO - AUDIO - HEADPHONE VOLUME STOP PLAY SELECT 4 5 6 - REMOTE CONTROL [REMOTE CONTROL] POWER Button [TV P.9 / DVD P.15] OPEN/ POWER CLOSE PICTURE/ PICTURE/SLEEP Button [TV P.10] SLEEP SELECT... -
Page 9: Tv Section
TV SECTION V OPERATION AND SETTINGS INITIAL SET UP WATCHING A TV PROGRAM When you turn on the power for the first time, Press [POWER] to turn on the unit. the INITIAL LANGUAGE screen is displayed. NOTES: - HELPFUL HINTS - Select the language for screen display and perform If the TV screen shows snow 1.PLEASE CHECK TO SEE IF... -
Page 10: Sleep Timer / Picture Control
TV SECTION TV OPERATION AND SETTINGS SLEEP TIMER / PICTURE CONTROL CLOSED CAPTION SYSTEM You can set Sleep Timer and picture You can view specially labeled (cc) TV pro- adjustment with [PICTURE / SLEEP]. grams, movies, news and pre-recorded tapes with either a dialogue caption or text display. -
Page 11: Channel Set Up
CHANNEL SET UP Press [ENTER] repeatedly. The channel number Channel presetting is necessary at the start or changes to red (deleted) or blue (added) every in case you moved the TV to a different area. time you press the button. AUTO CHANNEL PROGRAMMING •... -
Page 12: V-Chip Set Up
TV SECTION TV OPERATION AND SETTINGS TV RATING SET UP V-CHIP SET UP Use [ ] to select a rating This feature enables parents to prevent their that you wish to block. B TV–Y [VIEW] TV–Y7 ( [VIEW] children from watching inappropriate material on TV–G [VIEW] TV–PG (... - Page 13 MPAA RATING SET UP Use [ ] to point to your desired item, then press [VIEW] [VIEW] [ENTER] to select "BLOCK" PG–13 [VIEW] [BLOCK] NC–17 [BLOCK] or "VIEW". [BLOCK] Selection Rating Category Explanations General Audience Parental Guidance suggested. PG-13 Unsuitable for children under 13 Restricted;...
-
Page 14: Dvd Section
DVD SECTION BOUT THE DISCS PLAYABLE DISCS Playable Region Recorded Disc Mark (logo) Disc types discs code signals size DVD-Video *1,2,4,6,10,11 Digital 12 cm DVD-RW Example Title 1 Title 2 video DVD-R Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 1 Chapter 2 (MPEG2) 8 cm... -
Page 15: Playing A Disc
LAYING A DISC FAST FORWARD / FAST REVERSE BASIC PLAYBACK • During playback, press Press [POWER] to turn on the [FWD D D ] for fast forward or unit. [REV E E ] for fast reverse. • Every time you press the button, Press [OPEN/CLOSE A A ]. -
Page 16: Special Playback Functions & Settings
DVD SECTION PECIAL PLAYBACK FUNCTIONS & SETTINGS FUNCTION TABLE Setting menu switches as below every time you press [MODE] during playback. See the reference page for how to set each menu. Some functions are not available in specific modes, but this is not a malfunction. DVD-V Press [MODE] Press [MODE]... -
Page 17: Audio Menu
ANGLE MENU AUDIO MENU Some DVD discs contain scenes which AUDIO LANGUAGE have been shot from various angles and you can change them as you like. You can select audio language during DVD playback (if multi languages are available). During playback, press 1 / 8 (ANGLE) [MODE] repeatedly until Press [MODE] during playback. -
Page 18: Black Level Menu
DVD SECTION SPECIAL PLAYBACK FUNCTIONS & SETTINGS BLACK LEVEL MENU SEARCH MENU You can adjust the Black Level to make the You can begin playback at a specific track, title, black parts of the picture brighter. chapter or from a specific point on a disc. During playback, press TRACK SEARCH OFF (BLACK LEVEL) -
Page 19: Repeat Playback
REPEAT PLAYBACK TIME SEARCH During playback, press [MODE] repeatedly until REPEAT TRACK SEARCH menu appears. During playback, press OFF (REPEAT) Use [ ] repeatedly to [MODE] repeatedly until 0:0 _:_ _ TOTAL 0:04:23 display TIME SEARCH menu. REPEAT menu appears. Use [ ] to select your desired repeat mode. -
Page 20: Programmed Playback
DVD SECTION SPECIAL PLAYBACK FUNCTIONS & SETTINGS PROGRAMMED PLAYBACK Press [STOP C C ] to temporarily stop the playback. You can determine the playing order of tracks. You can resume the playback by pressing [PLAY B B ]. In the stop mode, press Press [STOP C C ] twice to cancel the pro- PROGRAM [MODE]. -
Page 21: Changing The Dvd Set Up Items
HANGING THE DVD SET UP ITEMS You can change the DVD player’s settings by pressing [SET-UP] in DVD mode. The set up items are shown in the diagram below. Press [SET-UP] twice QUICK CUSTOM INITIALIZE AUDIO LANGUAGE (P.21) SUBTITLE DISC MENU TV MODE TV MODE DISPLAY (P.22) - Page 22 DVD SECTION CHANGING THE DVD SET UP ITEMS DISPLAY SETTING AUDIO SETTING Use [ ] to select an item, Choose the appropriate Audio settings for your SETUP DISPLAY then press [ENTER]. equipment as it only affects during the playback of TV MODE 4:3 LETTER BOX STILL MODE...
-
Page 23: Initialize
OTHER SETTING Use [K K / L L ] to select the SETUP PARENTAL Use [ ] to select an item, PARENTAL LEVEL desired level, then press SETUP OTHERS [ADULT] then press [ENTER] repeated- 7 [NC-17] ANGLE ICON [ENTER]. 6 [R] AUTO POWER OFF ly to set the feature "ON"... -
Page 24: Troubleshooting Guide
ROUBLESHOOTING GUIDE f the unit does not perform properly when operated as instructed in this Owner’s Manual, check the following guide for the possible remedy of a problem before contacting the Customer Service. Sometimes a perfor- mance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. It could save your time and money. - Page 25 SYMPTOM POSSIBLE REMEDY PAGE No picture • This unit cannot play DVD-RAM/CD-i/Photo CD/Video CD/DVD with region codes other than "1" and "ALL". Disc cannot be played • Clean the disc. • Place the disc correctly, with the label side up. •...
-
Page 26: Maintenance
AINTENANCE DEGAUSSING IR SIGNAL CHECK A degaussing circuit in this unit clears up color Use the AM radio or the digital camera to check if errors on the TV screen. Color errors occur when the remote control properly sends out the infrared there is any excess magnetism close to the unit. -
Page 27: Appendix
PPENDIX CABLE CHANNEL DESIGNATIONS If you subscribe to cable TV, the channels are displayed as 1-125. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations. CATV channel TV Display CATV channel... -
Page 28: Specifications
PECIFICATIONS GENERAL SPECIFICATIONS OTHER SPECIFICATIONS Terminals Antenna input: VHF/UHF/CATV CRT: 20 inch in-line gun, 75 ohm unbalanced 90˚ deflection tube (F-type) Television system: NTSC-M Video input: RCA connector × 1 Closed caption system: §15.119/FCC Audio L/R input: RCA connector × 2 Tuner channel Headphone: 1/8"... -
Page 29: Español
Í NDICE DE CONTENIDO PREPARATIVOS PARA EL USO ... .29 CONEXIONES DE ANTENA/CABLE ...29 SECCIÓN DVD CONEXIÓN A UN DISPOSITIVO EXTERNO (FRONTAL) . -
Page 30: Conexión A Un Dispositivo Externo
PREPARATIVOS PARA EL USO CONEXIÓN A UN DISPOSITIVO EXTERNO (FRONTAL) Cuando vea un programa grabado en otra fuente (videograbadora o videocámara), utilice las tomas de entrada AUDIO/VIDEO en la parte frontal de la unidad. Conecte las tomas de salida de Audio/V de otra fuente a las tomas AUDIO L/R y ídeo VIDEO de esta unidad. -
Page 31: Sección Tv
SECCIÓN TV UNCIONAMIENTO Y AJUSTES DEL TELEVISOR PARA VER UN PROGRAMA DE TELEVISIÓN INSTALACIÓN INICIAL Presione [POWER] para encender la Cuando se enciende la unidad por primera unidad. vez, se muestra la pantalla de IDIOMA NOTES: INICIAL. Seleccione el idioma de visualización de Si la pantalla del televisor - SUGERENCIAS ÚTILES - pantalla y ejecute la autoprogramación del canal. -
Page 32: Ajuste De Canal
SECCIÓN TV FUNCIONAMIENTO Y AJUSTES DEL TELEVISOR AJUSTE DE CANAL IDIOMA DE MENÚ DE PANTALLA Es necesario preseleccionar el canal al Puede seleccionar el idioma del menú principio o en caso de haber movido el de pantalla entre inglés, español y televisor a una zona distinta. -
Page 33: Sección Dvd
SECCIÓN DVD AVANCE RÁPIDO / RETROCESO RÁPIDO REPRODUCCIÓN BÁSICA • Durante la reproducción, mantenga Presione [POWER] para presionado [FWD D D ] para avance encender la unidad. rápido o [REV E E ] para retroceso rápido. • Cada vez que mantenga Presione [OPEN/CLOSE A A ]. - Page 34 MEMO...
- Page 35 MEMO...
-
Page 36: Limited Warranty
FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE. To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at: FUNAI CORPORATION Customer Service Tel :1-800-242-7158 http://www.Symphonic.us 19900 Van Ness Avenue, Torrance, CA 90501 Printed in Malaysia 1EMN21536 T9202UC ★★★★★...
