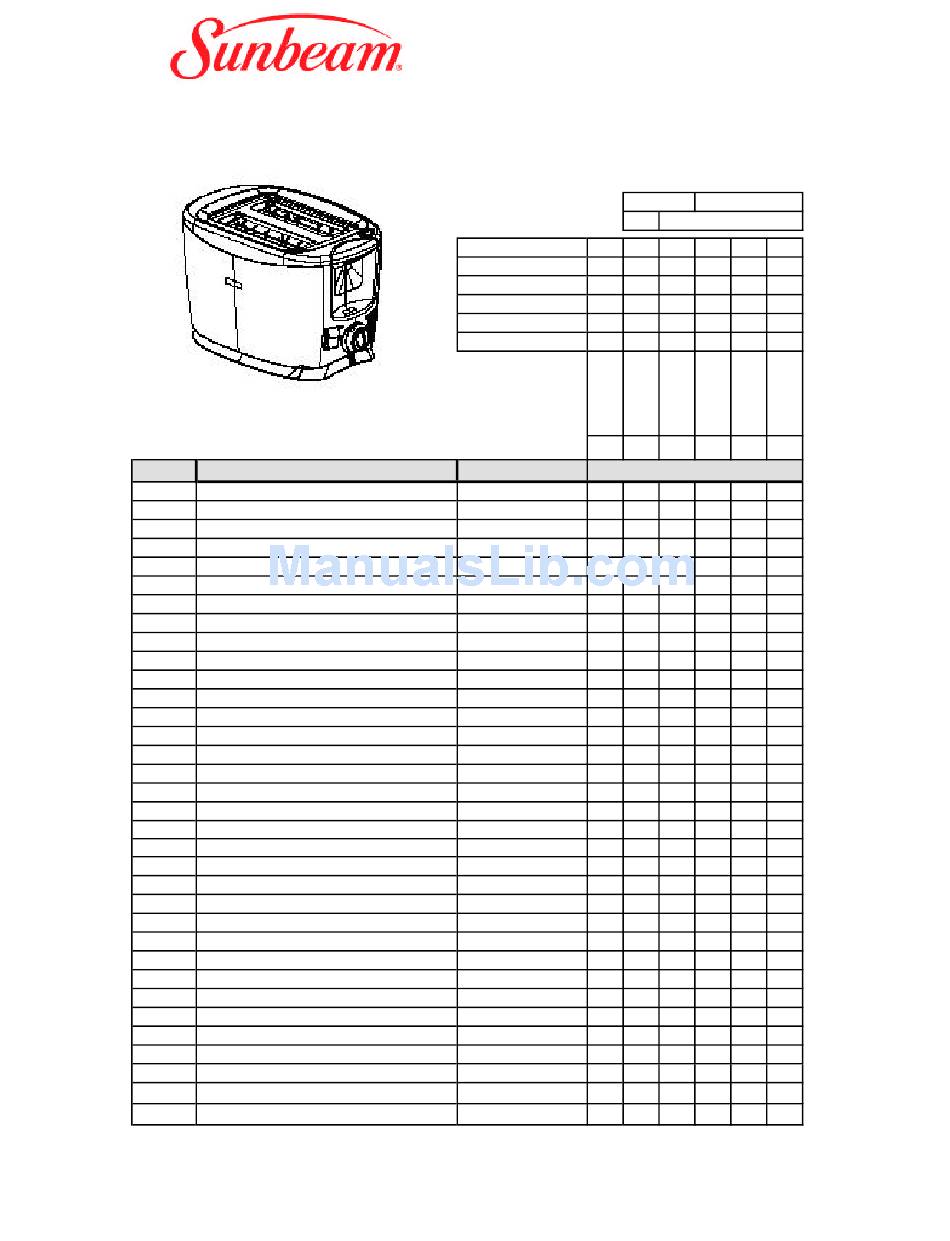

Sunbeam 2000 Service Manual

HOUSEHOLD PRODUCTS
SLICE TOASTER
120 V., 950 W., 50-60 HZ.
KEY # DESCRIPTION
CHASSIS ASSEMBLY,SBM,2SL
1
BASE,2SL,SBM
2
TOP CAP,2SL,SBM T2000
4
KNOB,COLOR,SBM T2000
7
LIFTER,CAP,SBM
9
CANCEL BUTTON,SBM T2000
10
BEZEL,KNOB,SBM
11
PCB,SBM,CANCEL
12
LIFTER HANDLE,SBM
13
LED PIPE , 2 SL , SBM
14
RUBBER FEET
15
HOUSING,2SL,SBM 2X3 T2000
16
PCB ASSY,SBM,SIMPLY TOAST T2000
17
PUSH BUTTON , LEFT , DOUBLE, SBM
18
PUSH BUTTON , RIGHT , TRIPLE , SBM
19
SPRING,BREAD GUIDE
20
LIFT LEVER ARM,METAL
21
SPRING,BREAD RACK
22
CRUMB TRAY ASSY,SBM
23
STANDOFF, PCB
24
INSTRUCTION, SB1
**
** NOT SHOWN ON DRAWING
SERVICE MANUAL 2000
X
6225 X
BASIC PARTS X
1
PART # QUANTITY REQ'D
103012-000-000 1
103017-000-000 1
103021-000-000 1
103029-000-000 1
103037-000-000 1
103042-000-000 1
103043-000-000 1
103608-000-000 1
103609-000-000 1
1036614-000-000 5
103744-000-000 4
103015-002-000 1
103032-001-000 1
103046-001-000 1
103046-003-000 1
082319-000-000 2
103052-000-000 1
082318-000-000 1
103611-000-000 1
103737-000-000 2
103067-000-000 1
