Plawa CINEMAN 7x User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Users Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CINEMAN 7x and is the answer not in the manual?

Questions and answers

Summary of Contents for Plawa CINEMAN 7x

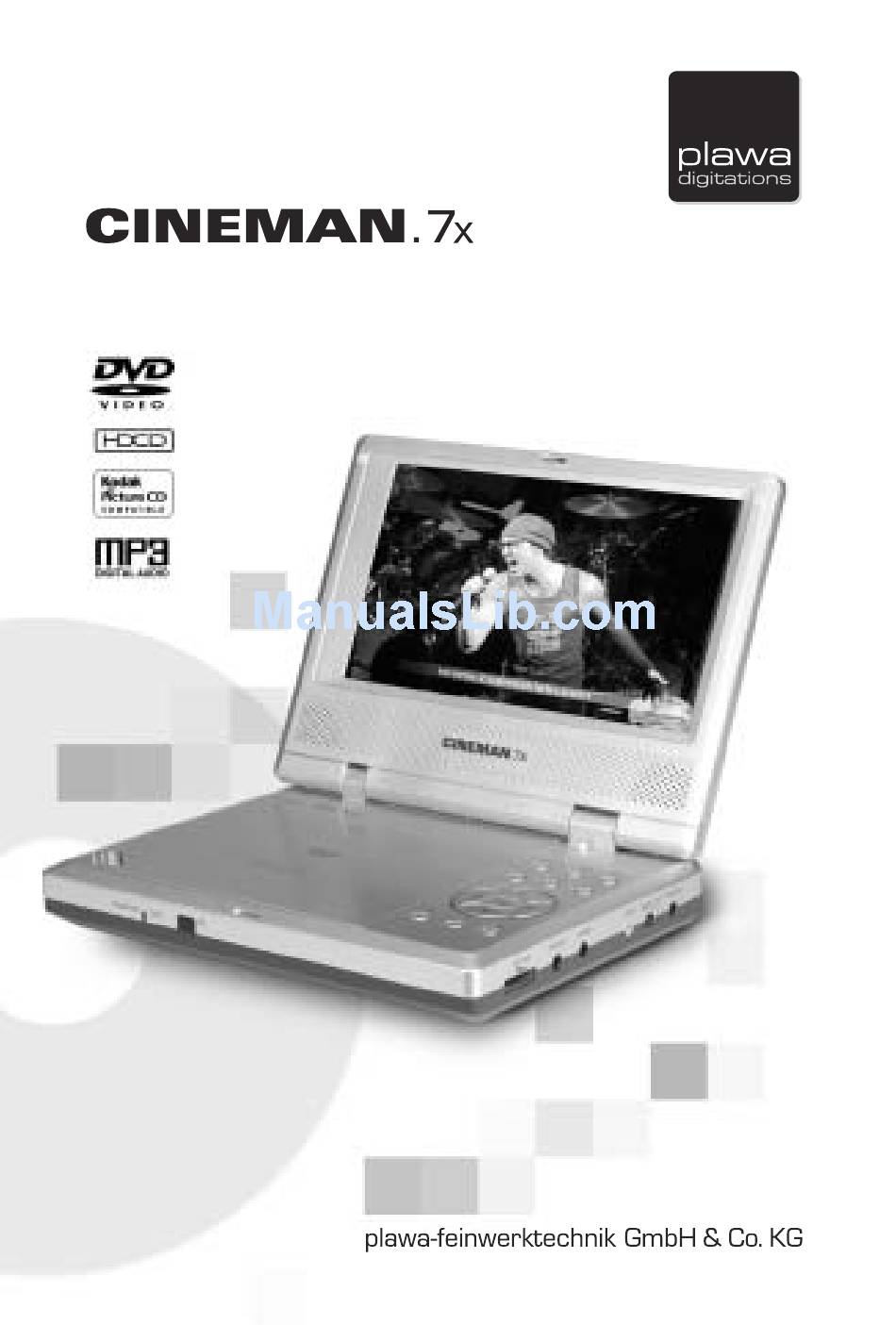

  • Page 1 Users Manual...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS The lightning flash with arrowhead symbol within an equilateral trian- gle is intended to alert the user to the presence of uninsulated “dan- gerous voltage” within the product’s enclosure that may be of suffi- cient magnitude to constitute risk of electric shock to persons. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servic- ing) instructions in the literature accompanying the product.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS ......... . .2 TABLE OF CONTENTS .

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS POWER SOURCES This unit operates on a supplied AC adaptor, car adaptor and chargeable batteries. Make sure that the input voltage of the AC adaptor is in line with the local volt- age. Otherwise, the AC adaptor and unit may be damaged. Do not touch the AC adaptor with wet hands to avoid electric shocks.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS is dust on the pickup lens, use a cleaning disc to clean them. Please refer to the operation instructions of the cleaning disc you bought. WHEN USING HEADPHONES To avoid hearing damages caused by sudden high volume, keep the volume at the lowest level before play back.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS (1) Read instructions - All the safety and operating instructions should be read before the product is operated. (2) Retain instructions - The safety and operating instructions should be retained for future reference. (3) Warnings - All warnings on the product and in the operating instructions should be adhered to.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

  • Page 8: Features

    FEATURES 1. HIGH DEFINTION The unit adopts MPEG2 coding format and brings the horizontal resolution over 500 lines. 2. UNIQUE FUNCTIONS Multi - angle and multi - language brings unique trick functions. Parental lock makes it easy to control the content of discs. 3.

  • Page 9: Definition Of Terms

    DEFINITION OF TERMS TITLE The images or music of a DVD are divided into some units, among which title is the biggest one. To an image in video software, title is movie, to a piece of music in audio software, it is music. ´...

  • Page 10: Name Of Parts

    NAME OF PARTS MAIN UNIT (13) TITLE TFT LCD (14) MENU SPEAKER (15) LOCK PUSH OPEN (16) VOLUME POWER ON/CHG INDICATOR (17) PHONES JACK REMOTE SENSOR (18) AUDIO OUT PLAY (19) VIDEO OUT PAUSE (20) VIDEO/TFT (SLIDE SWITCH)* STOP (21) COAXIAL OUT (10) RETURN (22) DC IN í...

  • Page 11: Remote Control

    NAME OF PARTS REMOTE CONTROL (15) A-B REPEAT (16) ZOOM SUBTITLE (17) MUTE NUMBER BUTTONS (18) TITLE SETUP (19) SLOW PLAY DIRECTION BUTTONS (20) RETURN PLAY (21) CLEAR MENU (22) TIME SEARCH STOP (23) RESUME PAUSE (10) FF/FR SEARCH (24) PLAY MODE (11) PREV/NEXT SKIP (25) LANGUAGE (12) AUDIO MODE...

  • Page 12: Connections

    CONNECTIONS CONNECT TO POWER A Please make sure that the supplied AC adaptor is in line with the local voltage. Connect the supplied AC adaptor to: DC IN on the left side of the unit. Insert one end of the power supply cord into the input jack of the adaptor and the other end into the household mains socket.
  • Page 13 CONNECTIONS CONNECT TO TV The AV cords are connected according to diagram C: Mini - plug: connect to the VIDEO OUT jack of the unit. Yellow plug: connect to the VIDEO IN jack of the TV. Mini - plug: connect to the AUDIO OUT jack of the unit. Red - plug: connect to the AUDIO IN R jack of the TV.

  • Page 14: Preparations Before Operation

    PREPARATIONS BEFORE OPERATION USE REMOTE CONTROL Refer to the diagram, open the battery compartment of the remote control, insert batteries, then close the compartment. To use the remote control, point it at the remote sensor of the unit. Operates in a range of 5 meters to 60°. Generally, batteries last for about one year, replace the batteries if the remote control does not work.

  • Page 15: Playable Discs

    PREPARATIONS BEFORE OPERATION Playable Discs LOGO CONTENT SIZE PLAYING TIME Audio + Video about 2hrs (Motion Pictures) 12 cm (single-side disc) about 4hrs (double-side disc) about 80 min. (single-side disc) 8 cm about 160 min. (double-side disc) Audio 12 cm about 74 min.

  • Page 16: Basic Operations

    BASIC OPERATIONS BEFORE OPERATION A Turn on the power. Press the lock switch to open the cabinet cover. Set POWER ON. Turn VOLUME to adjust volume (including when using headphones). When the unit is connected to a TV or an amplifier, adjust the volume accord- ing to owner’s manual and set TV to AV mode.

  • Page 17: Tft Picture Adjustment

    BASIC OPERATIONS TFT PICTURE ADJUSTMENT If you feel the brightness is unsuitable during playback, press MONITOR button to select bright adjustment and press buttons until moderate bright is achieved. If you feel color is unsuitable during playback, press MONITOR button to select color adjustment and press buttons until moderate color is achieved.

  • Page 18: Play Disc

    BASIC OPERATIONS PLAY DISCS available if the disc was created with that particular feature (i.e., if you Load a disc and press (PLAY) to select the Subtitle icon, you won’t be play the disc. Stop playback. Press í. able to change the subtitle language unless the author of the disc created Remove the disc and switch off the unit.
  • Page 19 BASIC OPERATIONS Press the buttons to go to through the audio languages that are available on the disc until the the next or previous title. Note: audio language you want to use Some discs only have one title. appears in the text box. Audio will be played in that language.
  • Page 20 BASIC OPERATIONS turned off, the subtitle language will To Use Repeat: revert to the language setting speci- While a disc is playing, press fied through the DVD player main on the remote to bring up the menu. Display. The subtitle language can also be Highlight the Repeat icon.

  • Page 21: Dvd Menu Play

    BASIC OPERATIONS Changing the Audio chapter menus. Press (PLAY), the í or Channel Output screen shows the menu. Press í to skip the next or previous page, If you are playing a Stereo CD, you select with number buttons or direc- can change the channel output from tion buttons.

  • Page 22: Select With Number Buttons

    FUNCTION SETTING SELECT WITH the screen, illustrating General Setup, NUMBER BUTTONS Audio Setup, Preference, Password Setup, and Exit Setup. Load a disc. Press number buttons to The screen shows: select tracks after the unit finishes reading the disc. If the track number isn’t over 10, just push buttons 1-10.
  • Page 23 FUNCTION SETTING Digital Setup” Page. The screen shows the submenu for your selec- tion. --- Dolby Digital Setup --- The screen shows: Dual Mono Stereo Left Mono Right Mono --- Dolby Digital Setup --- Mixed Mono D.R.C. Stereo Dual Mono Audio Setup Left Mono Right Mono...
  • Page 24 FUNCTION SETTING Exit, then press the (PLAY) button to exit setup menu completely. GENERAL SETUP The setting menu is as follows: 3. WIDE This is selected when the unit is con- --- General Setup Page --- nected to a wide-screen TV. TV Display Wide Normal/PS...
  • Page 25 FUNCTION SETTING er to be connected must have SPEAKER SETUP Dolby Digital and MPEG decoding. The setting structure is: SPDIF /PCM: Select this when the DVD player is connected with a 2- --- Speaker Setup Page --- channel digital stereo amplifier. When a Dolby Digital or MPEG disc Lt/Rt Downmix...

  • Page 26: Password Setup

    FUNCTION SETTING compression rate to obtain the dif- V SURR ferent compression results of the Use to turn Virtual Surround on signals. and off. REVERB MODE EQUALIZER Use to select a Reverb Mode that This will help you to select graphic you want to use.

  • Page 27: Parental Lock

    FUNCTION SETTING PREFERENCES play DVD video disc rated higher than the PG grade. The setting menu is : DEFAULT >> RESET --- Preference Page --- Each function setting returns to the Audio English initial status in the factory if you French Spanish select this option.

  • Page 28: Mp3 Operation

    MP3 OPERATION SELECT TRACKS WITH MENU other tracks, and press (PLAY) button to play. Insert a disc, the unit will search In stop mode, select the folder disc information. The TV screen icon on the left side, then press displays main menu. (PLAY) button to return to the main menu.

  • Page 29: Play Discs In Various Ways

    PLAY DISCS IN VARIOUS WAYS AUDIO MODE WHEN PLAYING CD You may select any language from a AUDIO MODE multi-language DVD . Mono Left You may select the right channel or left channel or stereo from a multi- channel CD. AUDIO MODE Mono Right WHEN PLAYING DVD...

  • Page 30: Slow Play

    PLAY DISCS IN VARIOUS WAYS WHEN PLAYING DVD OR CD The screen shows orderly: Press to play fast forward. Each 1/16 time you press the button, the 1/16 screen shows orderly: Press (PLAY) to play normally. REPEAT PLAY This function can be used to repeat- edly play a title, chapter, track, disc, or some part on a disc.

  • Page 31: Select Subtitles

    PLAY DISCS IN VARIOUS WAYS on which multiple subtitle language REPEAT are recorded. Track PLAY DVD Press repeatedly until SUBTITLE Repeat a disc. Press , the REPEAT the desired language is selected. screen shows “ ”. The unit The screen shows: plays all the tracks on the disc.

  • Page 32: Time Search

    PLAY DISCS IN VARIOUS WAYS 2/4 (select ANGLE2) Time _ : _ _ : _ _ 3/4 (select ANGLE3) 4/4 (select ANGLE4) Press number buttons to enter hour, To resume normal playback, press minute and second. " " to select original angle. Example: Enter After setting, the unit will play the...

  • Page 33: Bookmark

    PLAY DISCS IN VARIOUS WAYS You can enter the elasped time of ZOOM PLAY a track to play. This function can be used to watch a You can go to a track you want play motion or motionless picture. by entering the track number. Press during playback, the ZOOM...
  • Page 34 PLAY DISCS IN VARIOUS WAYS WHEN PLAYING DVD To remove program playback, press the í (STOP) button twice during Press PLAY MODE until the screen the program play. shows: Programm: TT (20)/CH (--) WHEN PLAYING CD 01 TT:_ _ CH:_ _ 06 TT:_ _ CH:_ _ Press until the screen...

  • Page 35: Shuffle Or Random Play

    PLAY DISCS IN VARIOUS WAYS light NEXT and press (PLAY) to go DIGEST to the next page. To remove program playback, press the í (STOP) button during the pro- The screen shows: gram play. Select Digest Type SHUFFLE OR RANDOM PLAY Title Digest The unit can play in random orders.
  • Page 36 PLAY DISCS IN VARIOUS WAYS PLAY CD Press after the unit stops. DIGEST DIGEST The screen shows: Scan The unit plays the first ten seconds of each track one after another. Remove digest play í (STOP), digest play is removed and the unit stops.

  • Page 37: Others

    OTHERS ACCESSORIES Check if you have all the accessories after the carton is opened. Audio cable Video cable Remote control Owner’s manual AC power adaptor Rechargeable battery pack Car cigarette adaptor PRECAUTIONS FOR DISC HANDLING DISC To keep the disc clean, do not touch the play sides of the disc Do not attach paper or tape to the disc.

  • Page 38: Troubleshooting

    OTHERS TROUBLE SHOOTING If you experience the following problems while using the unit, this troubleshoot- ing guide can help you. No sound Check if the unit is connected securely. Check if the volume of headphone is set to MIN when using headphone. Make sure you operate the TV or amplifier correctly.

  • Page 39: Technical Specifications

    OTHERS TECHNICAL SPECIFICATIONS Laser Wavelength 650nm Video system PAL/MULTI/NTSC Frequency response 20Hz - 20KHz ± 1dB Signal/noise ratio 95 dB Audio distortion + noise 80 (1KHz) Channel separation 85dB Dynamic range 85dB Output Audio out (analog) Output level: 2V ± 10% Load impedance: 10k Audio out (digital) Output level: 0.5Vp - p...

  • Page 40: Using The Battery Pack

    OTHERS Online-Service: More Information to the complete product range of plawa-feinwerktechnik GmbH www.plawa.com & Co. KG can be found under: Support-Center: plawa-feinwerktechnik GmbH & Co. KG Bleichereistr. 18 73066 Uhingen Germany Hotline: (0049) 0 71 61 - 93 87 220 Office hours are: Monday-Thursday 8 till 5 pm and Fridays 8 till 3 pm.
  • Page 41 OTHERS CHARGING THE BATTERY PACK Turn the player off. The battery pack will charge only when the POWER to the player is turned OFF. Attach the battery pack to the player. Connect the supplied AC adaptor and the power cord to the player. Charging starts, and thePOWER/CHG indicator illuminates orange.
  • Page 42 OTHERS CONDITIONS AND ATTENTION While using the battery pack, the environmental temperature should be 5°C (41°F) to 35°C (95°F). A newly purchased battery pack can only be used after being charged. To undertake the longest service life of the battery pack, charge it under or close to indoor-temperature.
