Instruction Manual
For

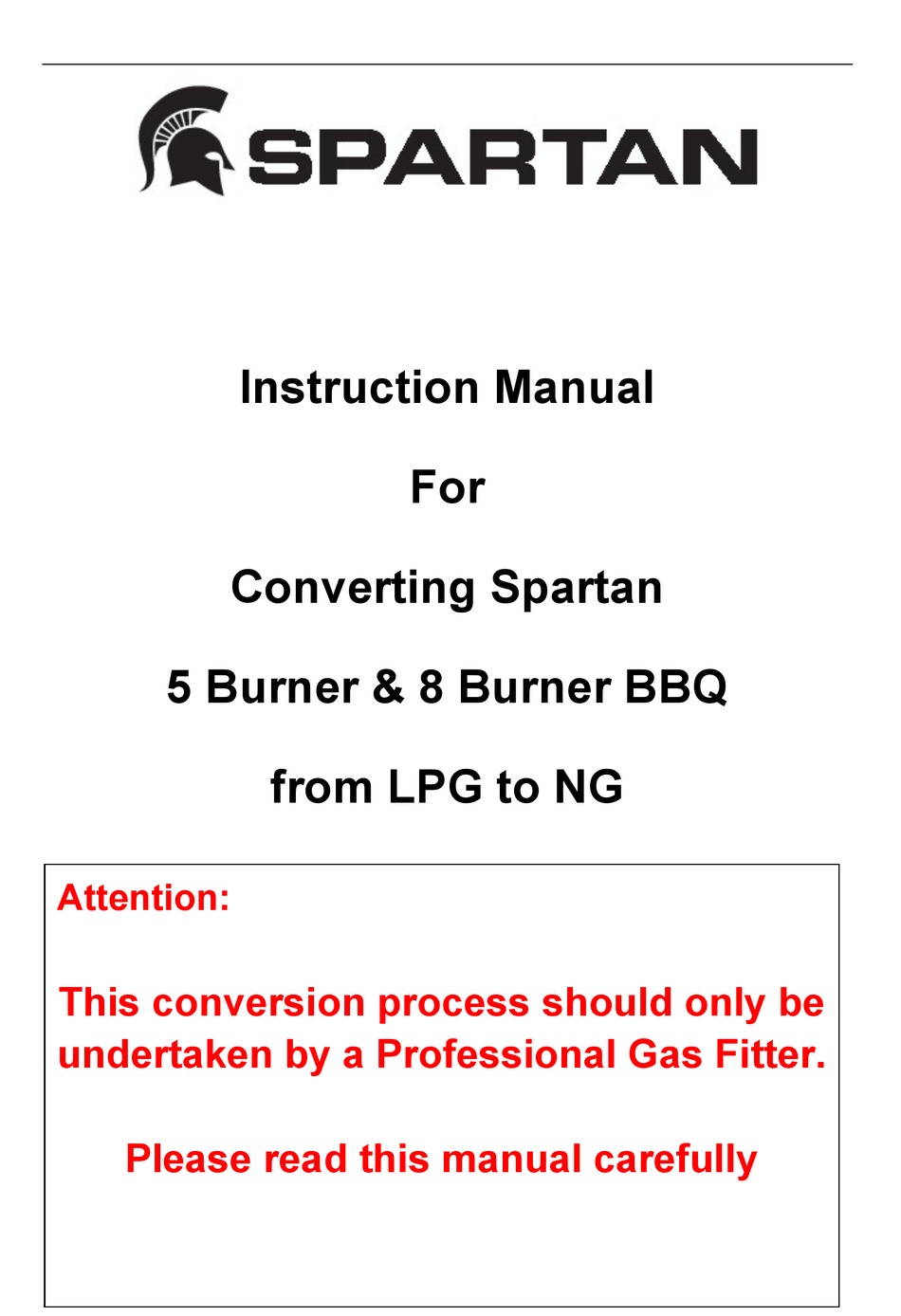

Converting Spartan
5 Burner & 8 Burner BBQ
from LPG to NG
Attention:
This conversion process should only be
undertaken by a Professional Gas Fitter.
Please read this manual carefully
*LPG parts need to be assembly as below:
*AGA pressure regulator;
Advertisement
Summary of Contents for Euromaid Spartan
- Page 1 Instruction Manual Converting Spartan 5 Burner & 8 Burner BBQ from LPG to NG Attention: This conversion process should only be undertaken by a Professional Gas Fitter. Please read this manual carefully *LPG parts need to be assembly as below:...
- Page 2 LPG & NG INJECTOR - IDENTIFICATION DRAWINGS...
- Page 3 STEP 1 - PREPARING BBQ FOR CHANGING OF INJECTORS a. Remove the two screws holding each valve to the control panel and control knob bezel. b. Loosen the control panel by removing two screws & washers on each end.
- Page 4 c. Loosen the gas supply nut and thermocouple from the main burner valves, side burner valve and rotisserie burner valve. d. Disconnect wire from the electronic igniter for the rotisserie burner, e. Then pull control panel away from grill.
- Page 5 STEP 2 - CHANGING INJECTORS ON MAIN BURNER VALVES a. Take each of the 4 or 6 Main valve NG injectors provided in the Spartan BBQ LPG to NG Conversion Kit b. Replace the current Main valve LPG injectors with the NG injector at their...
- Page 6 STEP 3 - CHANGING INJECTOR FOR SIDE BURNER a. Take each of the 1 Side burner NG valve injectors provided in the Spartan BBQ LPG to NG Conversion Kit b. Replace the current Side Valve LPG injectors by - Removing the Side Burner Top Base...
- Page 7 STEP 4 - CHANGING INJECTOR FOR REAR BURNER a. Loosen the seven (7) screws & washers for rotisserie burner rain cover. b. Loosen the Gas Supply Nut from the Rear LPG valve injector. c. Replace the Rear LPG valve injector with the NG injector. d.
- Page 8 STEP 5 - RE-ASSEMBLY & TESTING a. Reassemble the gas supply nut & thermocouple to the main, side & rotisserie burner valve. b. Connect the electronic wirer to ignition igniter. c. Tighten the screws & washers. CAUTION: The burner openings must be positioned properly over the valve injectors.
- Page 9 STEP 6 - CHANGING HOSE, REGULATOR AND CONNECTION a. Remove current LPG hose, regulator and connection. b. Replace with Bromic NG ConversIon Kit supplied pieces. STEP 7 APPLICATION OF SAFETY STICKER a. Replace Use with LPG sticker with Use with NG sticker provided. (Sticker location should be inside the BBQ’s right hand side door next to the Rating Label)
- Page 10 CONCLUSION OF ABOVE PROCESS...
