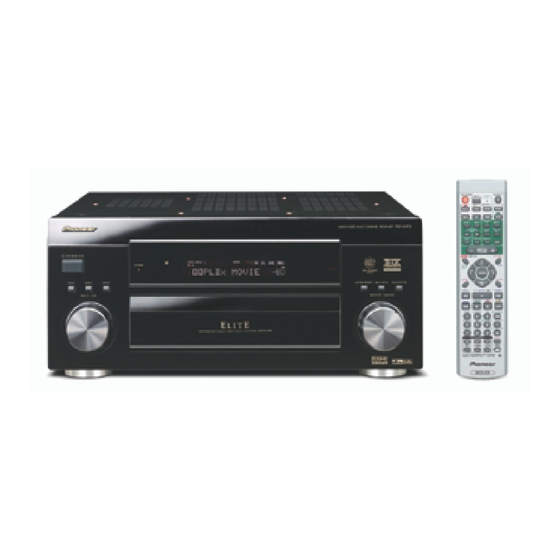

Pioneer VSX-54TX Specifications

Thx select certified 7.1 channel a/v receiver
Hide thumbs Also See for VSX-54TX:

Advertisement

Quick Links

M O S F E T
V S X - 5 4 T X
M O S F E T A M P L I F I C A T I O N
For optimal performance, all Elite receivers
are equipped with Pioneer's exclusive
Advanced Direct Energy (A.D.E.) MOSFET
power device, ideal for high-end audio. The
combination of this device and an AC/DC iso-
lated ampli er module yields exceptional
stability and ultra-linear ampli cation, com-
bined with very low signal loss. It's also a very
energy-e cient design, minimizing power
imbalances that can cause unnecessary dis-
tortion in the sound stage.
Idle Current (DRAIN Current) Change
with Tone Burst Wave Input
General Circuitry Design
110 Watts x 7 @ 8 Ohms
Advanced Direct Energy MOSFET
Ampli cation
Symmetrical Power Train Design
High-Regulation Type Large Transformer
A.D.E. MOSFET + AC/DC Isolated Ampli er
with Audiophile-Quality Capacitors
(22000 µF x 2)
A M P L I F I C A T I O N
THX Select Certi ed
C A P A C I T O R S
Dolby Digital EX & Pro-Logic IIx
Action movies. Video games.
DTS-ES / 96/24 / Neo:6
Live sports. Rock concerts.
They
all
have
critical
AIR Studios Sound Tuning
moments where things suddenly explode
into over-the- top sonic mayhem. When
that happens, your receiver needs to have
some power in reserve, or the impact is
lost. For this reason, all Elite receivers uti-
lize large, audiophile-qual-
ity electrolytic capacitor
pairs and a heavy-duty
power transformer, ensur-
ing maximum perform-
ance during peak demand.
Power Supply
22
T H X S e l e c t C e r t i
e d 7 . 1 C h a n n e l
A / V R e c e i v e r
Advanced MCACC with Adjustable-
5 Digital Inputs
Envelope EQ
Wide-Band Component Video
PC Connection via RS232C for MCACC
Inputs x2 (100MHz)
3-D Color Display and Printout
Multi-Room & Source, RS232C,
Advanced Cinema and Advanced Concert
12V Trigger / IR I/O Ports
Virtual Surround Back
SR I/O for Easy Installation
Twin Motorola 48-Bit DSP Digital Core
Versatile Speaker Con guration
Engine
Banana-Plug-Ready Speaker Terminals
Universal Video Conversion
3-D Space Frame Construction
On-Screen Display
Trans Stabilizer
192KHz / 24-Bit DAC (Delta Sigma type)
Learning Remote with Multi-Operation
10 AV Inputs
T H X S e l e c t C e r t i
V S X - 5 2 T X
A / V R e c e i v e r
110 Watts x 7 @ 8 Ohms
Advanced Cinema and Advanced Concert
Advanced Direct Energy MOSFET
Virtual Surround Back
Ampli cation
Motorola 48-Bit DSP Digital
Symmetrical Power Train Design
Core Engine
High-Regulation Type Large Transformer
Universal Video Conversion
with Audiophile Quality Capacitors
On-Screen Display
(15000 µF x 2)
192KHz / 24-Bit DAC
THX Select Certi ed
(Delta Sigma type)
Dolby Digital EX & Pro-Logic IIx
8 AV Inputs
DTS-ES / 96/24 / Neo:6
5 Digital Inputs
Precision Auto MCACC with Adjustable-
Wide Band Component Video
Envelope EQ
Inputs x2 (100MHz)
e d 7 . 1 C h a n n e l
A D V A N C E D C O N S T R U C T I O N
T E C H N I Q U E S
3 - D S P A C E F R A M E A N D
I S O L A T E D C H A M B E R
Unlike regular receivers' 2-D chassis design,
our revolutionary 3-D space frame construc-
tion provides superb physical strength.
Also, each receiver is divided with insulating
shields into three blocks: the digital proces-
sor, the power- & pre-ampli er, and the
power supply sections. This construction
design serves two purposes: it prevents the
digital circuits from a ecting the analog cir-
cuits, and it increases the rigidity of the cab-
inet structure. As a result, sound reproduc-
tion from any source is more accurate and
imaging is improved.
3D Space Frame Construction
Multi-Room & Source, RS232C,
12V Trigger / IR I/O Ports
SR+ Two-Way Communication with
Pioneer Plasma for Easy Installation
Versatile Speaker Con guration
Banana-Plug-Ready Speaker Terminals
3-D Space Frame Construction
Trans Stabilizer
LCD Learning Remote
S Y M M E T R I C A L P O W E R
Pioneer System Remote
T R A I N D E S I G N
Accurate multi-channel sound reproduction
is possible only when the operating environ-
ment is physically, magnetically, and elec-
tronically identical for all channels. For that
reason, Elite receivers'
power output devices for
each channel are sym-
metrically mounted on a
pair of rigid heat sinks,
with the device for the
center channel mounted
directly in between.
2 3
