1.0 INTRODUCTION
The GFK-210-C Blower System has been designed to
circulate room air through the fi replace to enhance heat
output. The GFK-210-C blower system operates on 120
VAC, 60 Hz power. This is available through a receptacle
in the factory installed power cord assembly. The power
cord is located in the controls compartment of the fi replace.
An optional variable speed control is available for use
with the blower system to provide quiet forced air fl ow at
the desired speeds. A temperature sensor switch, which
automatically turns the blower ON/OFF, is also provided
with this kit. See Figure 2 and Section 8.0.
NOTICE: The variable speed control and temperature
sensor switch are not used with some remote control
systems.
CAUTION! Do not install a damaged blower kit.
FAN
BRACKETS

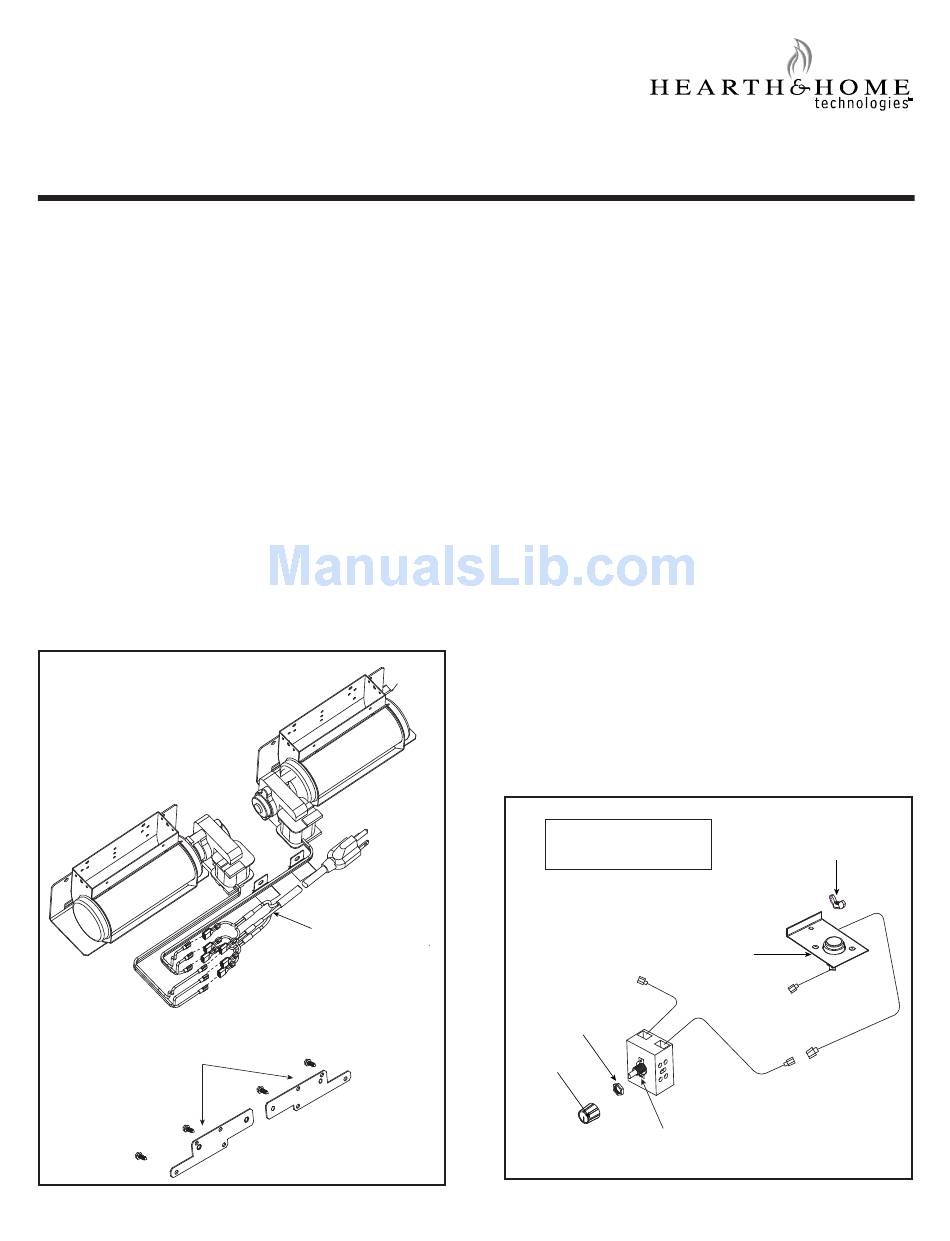

Figure 1. Carton Contents - GFK-210-C
Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13
GFK-210-C Blower System
- Installation and Operating Instructions -
BLOWER CORD
2.0 CHECK CONTENTS OF SHIPPING CARTON
Compare CONTENTS OF CARTON in Figure 1 with the
actual parts received. If any parts are missing or damaged,
contact your dealer before starting installation.
3.0 INSTALLATION PRECAUTIONS
The GFK-210-C Blower Kit is tested and safe when installed
in accordance with this installation manual. It is your respon-
sibility to read all instructions before starting installation and
to follow these instructions carefully during installation to
assure maximum benefi t from, and safe operation of, the
blower.
This blower is carefully engineered and must be installed
only as specifi ed. If you modify it or any of its components,
you may cause a fi re hazard and will void the WARRANTY.
In addition, such action may void the coverage provided
by the owner's home insurance.
CAUTION: All wiring should be done by a qualifi ed electri-
cian and shall be in compliance with local codes and with
the National Electric Code ANSI/NFPA NO. 70-current (in
the United States), or with the current CSA C22.1 Canadian
Electric Code (in Canada).
CAUTION! DO NOT connect 110-120 VAC wiring to the
gas control valve of the fi replace.
WARNING! Risk of Shock! Turn electrical power off at
the circuit breaker before beginning this installation.
OPTIONAL
RHEOSTAT/TEMPERATURE
SENSOR ASSEMBLY
CONTROL
NUT
CONTROL
KNOB
VARIABLE SPEED CONTROL
Figure 2. Carton Contents - SRV2206-800
WING
NUT
TEMPERATURE
SENSOR
SWITCH
