IMPORTANT MANUAL
Do Not Throw Away

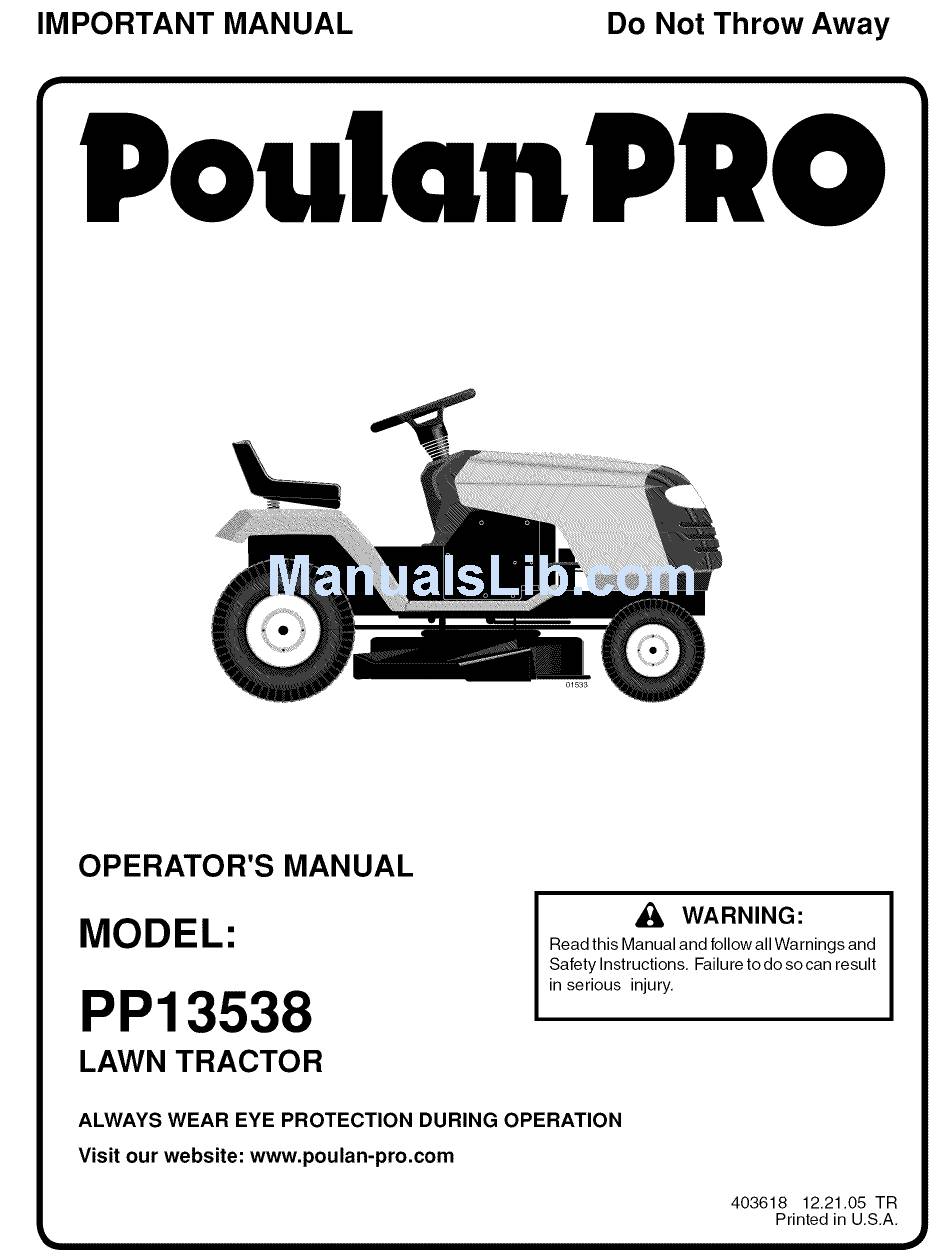

OPERATOR'S MANUAL
MODEL:
PP13538
LAWN TRACTOR
WARNING"
Read this Manual and follow all Warnings and
Safety Instructions, Failure to do so can result
in serious injury.
ALWAYS WEAR EYE PROTECTION
DURING OPERATION
Visit our website: www.poulan-pro.com
403618
12.21.05 TR
Printed in U,S,A,
Advertisement
Related Manuals for Poulan Pro PP13538
Summary of Contents for Poulan Pro PP13538
- Page 1 Do Not Throw Away OPERATOR'S MANUAL WARNING" MODEL: Read this Manual and follow all Warnings and Safety Instructions, Failure to do so can result in serious injury. PP13538 LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 403618 12.21.05 TR...
- Page 2 SAFETY RULES Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVETHE FOLLOWINGSAFETY INSTRUCTIONSCOULD RESULTIN SERIOUS INJURYOR DEATH. • Do not operate the machine while under the influence of alcohol or drugs.
- Page 3 SAFETY RULES & Safe Operation Practices for Ride-On Mowers II1. CHILDREN GENERAL SERVICE Tragic accidents can occur if the operator is not alert to • Never operate machine in a closed are, the presence of children. Children are often attracted to •...
- Page 4 PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give you the best possible dependability and performance. Gasoline Capacity 1.25 Gallons and Type: Unleaded Regular Should you experience any problem you cannot easily rem- Oil Type (API-SG-SL): SAE 30 (above 32°F)
- Page 5 CONTENTS OF HARDWARE PACK Steering Wheel Seat (1) Washer © 17/32 x 1-3/16 x 12 Gauge Steering Wheel (1) Knob Insert Steering Wheel Adapter Extension (1) Large Flat Shaft Washer Steering (2) Keys Slope Sheet (1) 5/16@ Lock Washer (1) Hex Bolt 5/16-18 x 4...
- Page 6 ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes, To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely, Use the correct tools as necessary to insure proper tightness.
- Page 7 ASSEMBLY NOTE: You may now roll or drive your tractor off the skid. Follow the appropriate instruction below to remove the tractor from the skid. SEAT SHOULDER BOLT TO ROLL TRACTOR OFF SKID (See Op- eration section for location and function controls) •...
- Page 8 ASSEMBLY CHECK TIRE PRESSURE ,/CHECKL IS T The tires on your tractor were overinflated at the factory BEFORE YOU OPERATE YOUR NEW TRACTOR, WE for shipping purposes, Correct tire pressure is important WISH TO ASSU RE THAT YOU RECEIVE THE BEST PER- for best cutting performance.
- Page 9 OPERATION These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their mean- ing, I',,I FAST REVERSE NEUTRAL HIGH CHOKE SLOW IGNITION SWITCH ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE OPERATION...
- Page 10 OPERATION KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments, Save this manual for future reference. ATTACHMENT IGNITION CLUTCH LEVER SWITCH POSITION...
- Page 11 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.
- Page 12 OPERATION REVERSE OPERATION SYSTEM (ROS) "ENGAGED" POSITION Your tractor is equipped with a Reverse Operation System (ROS), Any attempt by the operator to travel in the reverse LIFT LEVER direction with the attachment clutch engaged will shut off HIGH POSITION the engine unless ignition key is placed in the ROS "ON"...
- Page 13 OPERATION TO START ENGINE (See Fig. 5) BEFORE STARTING THE ENGINE When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move CHECK ENGINE OIL LEVEL fuel from the tank to the engine.
- Page 14 OPERATION MOWING TIPS • Mower should be properly leveled for best mowing per- formance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual, • The left hand side of mower should be used for trim- ming, •...
- Page 15 MAINTENANCE BEFORE EVERY EVERY EVERY MAINTENANCE EVERY EVERY BEFORE EACH SEASON STORAGE SCHEDULE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure v" Check Operator Presence & ROS Systems A Check for Loose Fasteners C Check/Replace Mower Blades Lubrication Chart O Check Battery...
- Page 16 MAINTENANCE TRACTOR BLADE CARE For best results mower blades must be kept sharp, Replace Always observe safety rules when performing any main- bent or damaged blades. tenance, BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest approved by the manufacturer of your speed in highest gear on a level, dry concrete or paved tractor.
- Page 17 MAINTENANCE SAE VISCOSITY GRADES CENTER HOLE o -_0 5/8" BOLT BLADE TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE oilvisc chart1 FIG. 10 OR PIN NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, they will result in increased oil consumption when used above 32°E Checkyour engine oil level more frequently to avoid possible engine damage FIG.
- Page 18 MAINTENANCE CLEAN AIR SCREEN IN-LINE FUEL FILTER (See Fig. 12) Air screen must be kept free of dirt and chaff to prevent The fuel filter should be replaced once each season. If fuel engine damage from overheating, Clean with a wire brush filter becomes clogged, obstructing fuel flow to carburetor, or compressed air to remove dirt and stubborn dried gum replacement is required.
- Page 19 SERVICE AND ADJUSTMENTS MENTS: WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST- Depress clutch/brake pedal fully and set parking brake. Place gearshift lever in neutral (N) position. • Place attachment clutch in "DISENGAGED" position. • Turn ignition key to "STOP" and remove key. •...
- Page 20 SERVICE AND ADJUSTMENTS When distance "D" is 1/8" to 1/2" lower at front than TO LEVEL MOWER HOUSING rear, tighten nuts "F" against trunnion on both front Adjust the mower while tractor is parked on level ground links, or driveway, Make sure tires are properly inflated (See •...
- Page 21 SERVICE AND ADJUSTMENTS TO REPLACE MOTION DRIVE BELT WIRE BELT KEEPER BELT KEEPER (See Fig. 20) MANDREL Park the tractor on level surface, Engage parking brake, PULLEY For assistance, there is a belt installation guide decal on bottom side of left footrest, BELT REMOVAL - •...
- Page 22 SERVICE AND ADJUSTMENTS TRANSAXLE GEAR SHIFT LEVER NEUTRAL- ADJUSTMENT (See Fig. 21) RETAINING WASHERS The transaxle should be in neutral when the gear shift RING lever is in neutral (N) (lock gate) position. The adjustment is preset at the factory; however if adjustment is needed, proceed as follows: •...
- Page 23 SERVICE AND ADJUSTMENTS TO REPLACE FUSE REPLACING BATTERY (See Figs. 24 and 25 Replace with 20 amp automotive-type plug-in fuse, The fuse holder is located behind the dash. WARNING: Do not short battery & terminals by allowing a wrench or any TO REMOVE HOOD AND GRILL ASSEMBLY other object to contact both terminals...
- Page 24 STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS WARNING: Never store the tractor with FROMFORMINGIN ESSENTIALFUELSYSTEM PARTSSUCH gasoline in the tank inside a building AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK...
- Page 25 TROUBLESHOOTING POINTS CAUSE CORRECTION PROBLEM Will not start Out of fuel. Fill fuel tank. Engine not "CHOKED" properly. See "TO START ENGINE" in Operation section. Engine flooded. Wait several minutes before attempting to start. Bad spark plug. Replace spark plug. Dirty air filter.
- Page 26 TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Engine dies when Reverse operation system 1. Turn ignition key to tractor is shifted (ROS) is not "ON" while ROS "ON" position. into reverse mower or other attachment See Operation section. is engaged. Engine continues to run Faulty operator-safety presence control system.
- Page 27 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL ",4 15 DEGREES MAX. down the face of slopes, never across the face. Do not mow ARNING: To avoid serious injury, operate your tractor up and slopes greater than 15 degrees.
- Page 28 PARTS AND SERVICE This product has been expertly engineered and carefully manufactured to rigid quality standards. As with all mechanical products, some adjustments or part replacement may be necessary during the life of your unit. For Parts and service, contact our authorized distributor: call 1-800-849-1297 •...
