Electric Powerhead

Owners Manual

P/N 9476

Table of Contents

Need help?

Do you have a question about the EG1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for H-P Products EG1400

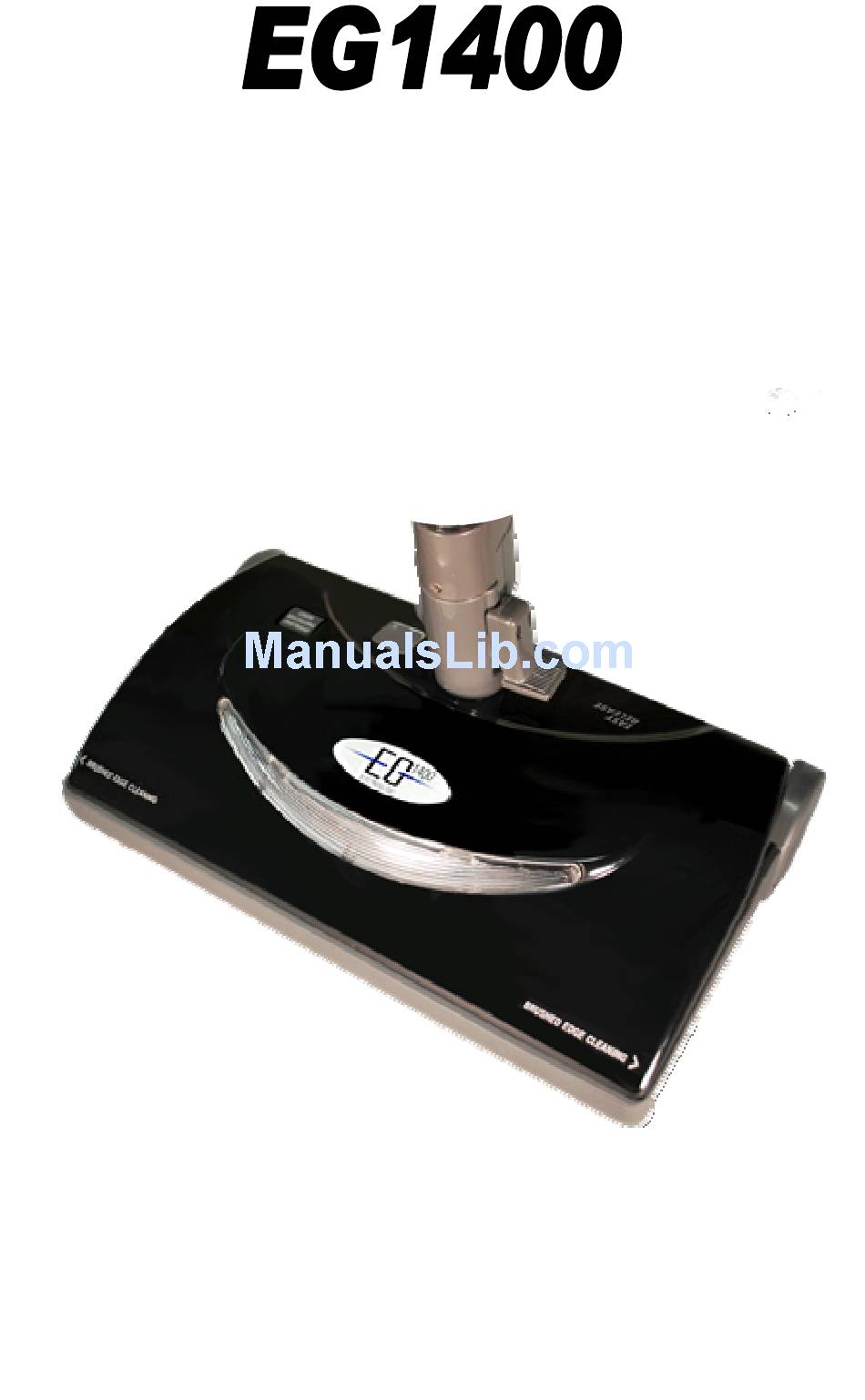

Page 1 Electric Powerhead Owners Manual P/N 9476...
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read These Instructions Before Using This Electric Powerhead WARNING: To reduce the risk of fire, electrical shock or injury: • Unplug and disconnect power before servicing. • Do not use on wet surfaces. • Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Page 4: Parts And Features
It is important to know your vacuum cleaner’s parts and features to assure its proper and safe use. Review these before using your cleaner. WARNING Always unplug the EG1400 before cleaning the brush area as brush may suddenly restart. Failure to do so can result in personal injury.
Page 5: Assembly Instructions
2. Insert connected wands into the EG1400 until the wand button 2 snaps into place. 3. Secure cord into the cord holder on wand swivel. Fig. B 4.
Page 6: General Operation
General Operation • The EG1400 is controlled by the on/off power control switch located on the hose handle. The headlight will operate when the EG1400 is turned on. • To lower wand from the upright position, simply press on the handle release pedal.
Page 7: Performance Features
If the agitator slows down or stops, the overload protector shuts off the EG1400. The power unit will continue to run. To correct the problem, turn off the power unit, remove obstruction, the press Overload Protector Reset button.
Page 8: Maintenance And Care
Disconnect hose and brush from electrical outlet. Frequently check and remove hair, string and lint buildup in the agitator and support areas. If buildup becomes excessive, disconnect the EG1400 from the wand and follow the steps below. To Remove Belt Fig.
Page 9: To Replace Belt
(Fig. O) 5. Rotate cover back. Press cover firmly until side and rear tabs snap into place. (Fig. P) Fig. P 6. Turn EG1400 upside down and replace 2 cover screws. Light Bulb Changing 3. Push in and Fig.
Page 10 EG1400 Explosion & Parts List...
Page 11 Illustration # H-P Part # Description 7925 Screw 8438 Motor Gasket 9439-01 Belt 7962 Motor Spring 9440 Lower Plate 9441 Motor 7959 Motor Bridge 7941 Overload Protector 7967 Light Bulb 9442 Bulb Socket 7940 Handle Release Pedal 7929 Swivel 9443 Furniture Guard 7966 Wire Connector...
Page 12: Limited Warranty
Seller’s instructions, will be free from defects in materials and workmanship for a period of ninety (90) days from the date of the initial sale by H-P PRODUCTS, INC. This warranty is limited to the replacement of defective parts and any costs of shipping shall be incurred by the purchaser.
