1.
POWER SUPPLY
1-1
Soundcard as power source
Using the supplied self powered connector cable, connect the 5 pin male plug to the MK-261 MIDI keyboard and the
15 pin male plug to the MIDI port on your PC soundcard.
IMPORTANT – DO NOT USE THIS CABLE TO POWER ANY OTHER EQUIPMENT
1-2
AC Power
You can also use an AC adapter (not included) with the following specification: 9-12V DC output, 250-300mA,
centre positive.
Note: Do not leave the adapter plugged in for long periods of time if the unit is not in use.
MK-261

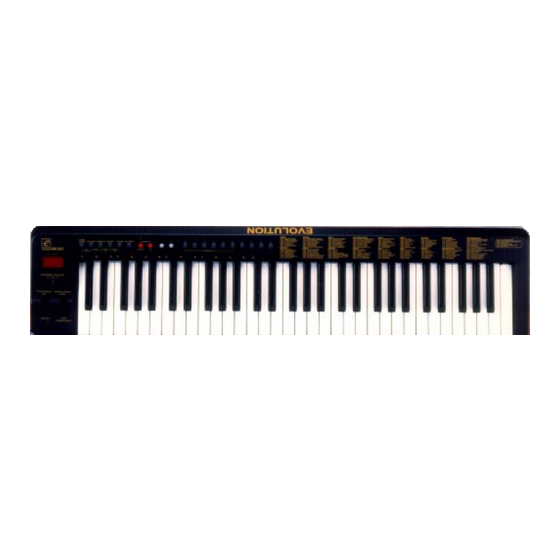

Evolution MK-261
www.evolution.co.uk
MIDI KEYBOARD MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evolution Evolution MK-261
Summary of Contents for Evolution Evolution MK-261

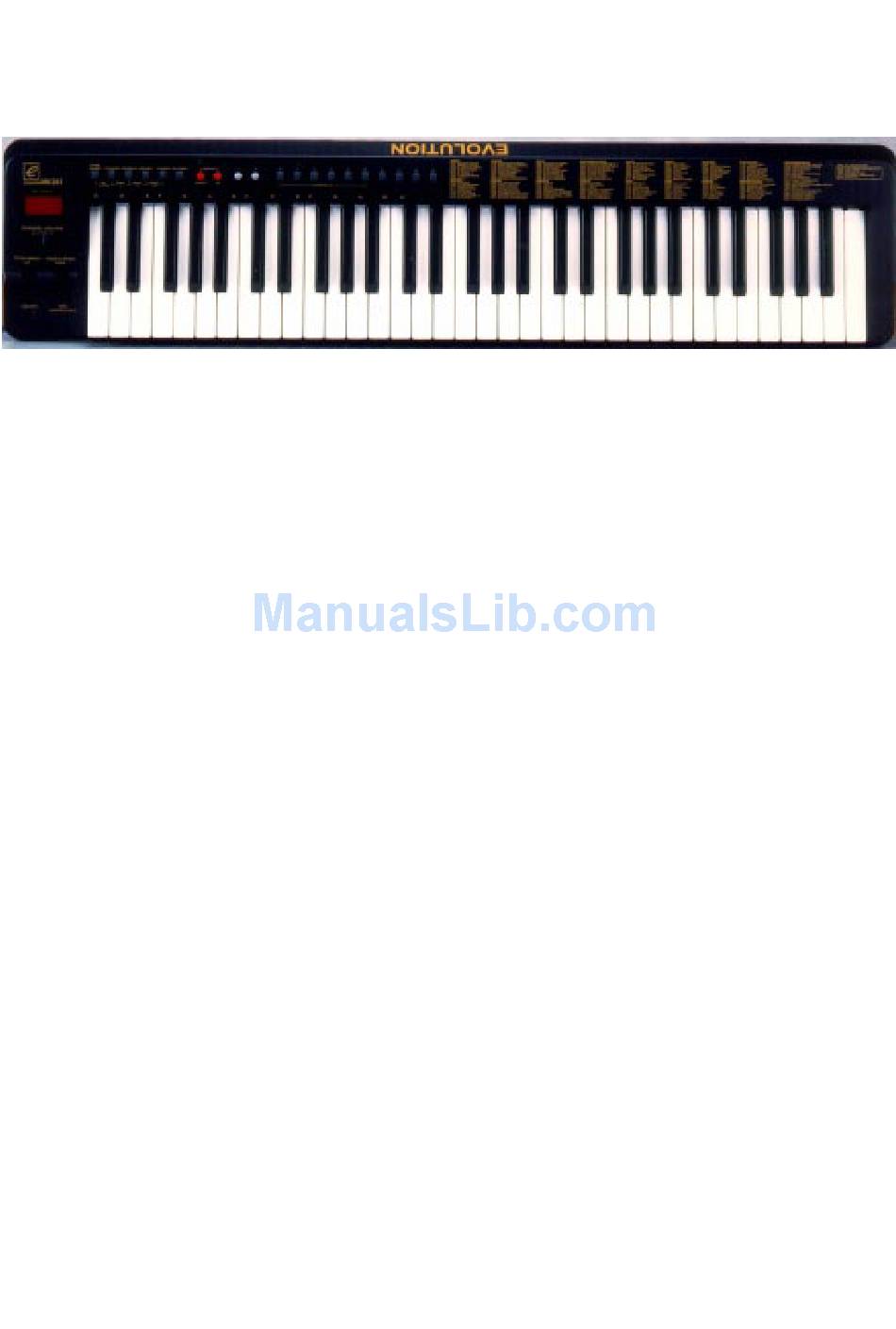

- Page 1 MK-261 Evolution MK-261 www.evolution.co.uk MIDI KEYBOARD MANUAL POWER SUPPLY Soundcard as power source Using the supplied self powered connector cable, connect the 5 pin male plug to the MK-261 MIDI keyboard and the 15 pin male plug to the MIDI port on your PC soundcard.
- Page 2 Preparation 2-1 Connect the unit with other MIDI equipment you may have: MIDI IN MIDI IN MIDI Sound Module MIDI Keyboard MIDI IN MIDI OUT Computer Turn on the POWER switch. Turn all other equipment on. Setting the MIDI Transmit Channel There are 16 MIDI transmit channels available.
- Page 3 Press numeric keys 0-9 to select a new MIDI controller. You can also use the +/- switches to increase or decrease the value of the number. Note: * If you do nothing for 5 seconds, the LED will return to show the current PROGRAM CHANGE number.
- Page 4 PROGRAM & BANK CHANGE MEMORY You can assign a selected PROGRAM CHANGE as well as a BANK LSB and a BANK MSB to one of ten numeric keys (0- 9). Once stored, simply pressing one of the numeric keys will send the desired PROGRAM and BANK CHANGES. 11-1 Select the desired PROGRAM CHANGE, BANK LSB and MSB.
- Page 5 3. Control: Sliders: (PITCH BEND WHEEL, MODULATION WHEEL, CHANNEL VOLUME) 4. Display: 3 digit LED 5. Jack: DC IN (DC 9V), MIDI OUT, SUSTAIN 6. Dimension: 1205 x205 x84 (mm) 7. Weight: 3.5 kg Note: Specifications are subject to change without prior notice.
-
Page 6: Midi Implementation Chart
APPENDIX MIDI IMPLEMENTATION CHART Function Transmitted Received Remarks Basic :Default 1-16 Channel:Changed 1-16 :Default --------- Mode :Messages :Altered ********* Note 0-127 Number:True Voice ********* Velocity: Note ON : Note OFF After :Key’s Touch :Ch’s Pitch Bend 0,32 Bank select Modulation Control Data Entry Change...
