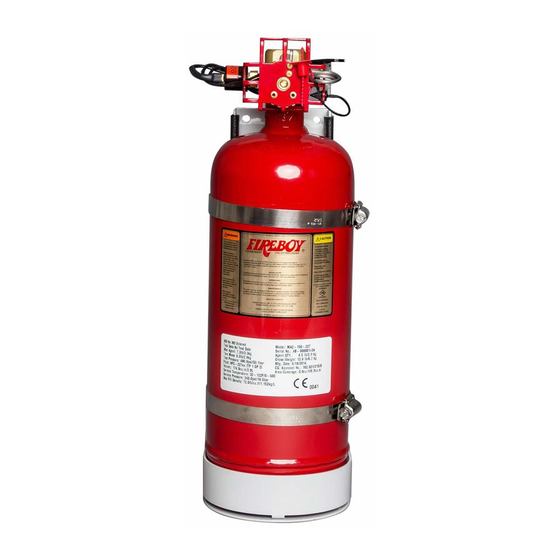

Summary of Contents for Fireboy- Xintex CG2
- Page 1 CG2 & MA2 Series Clean Agent FE-241 & HFC-227ea Owner’s Manual Installation Instructions For all sizes 25 cubic feet to 1500 cubic feet Read and comply with all instructions, warnings and limitations before installing, servicing or removing this device. &...
- Page 2 • Do not discharge any Fireboy automatic or manual/automatic system unless securely fastened in accordance with the owner’s manual • Never attempt to manually discharge a CG2 Fireboy system • Never attempt to disassemble any component of this system •...
- Page 3 General Information Fireboy Automatic (CG series) and Manual/Automatic (MA) series Fire Extinguishing Systems are manufactured for a broad range of applications, including marine, industrial, and commercial uses. This booklet is intended to outline the proper installation of the system for marine applications; most applications are similar.
- Page 4 When specifications listed on the nameplate label differ from this manual, the information listed on the nameplate label is correct. CG2 and MA2 series extinguishers discharge automatically at a temperature of 175°F. MA2 series extinguishers discharge manually at any temperature.
- Page 5 Volume Protected Diameter Model Number ft^3 CG2-550-FE241 15.6 CG2-600-FE241 CG2-650-FE241 18.4 CG2-700-FE241 19.8 CG2-750-FE241 21.2 CG2-800-FE241 22.6 CG2-850-FE241 CG2-900-FE241 25.5 CG2-950-FE241 26.9 CG2-1000-FE241 1000 28.3 MA2-025-FE241 0.71 MA2-050-FE241 MA2-075-FE241 MA2-100-FE241 MA2-125-FE241 MA2-150-FE241 MA2-175-FE241 MA2-200-FE241 MA2-225-FE241 MA2-250-FE241 MA2-275-FE241 MA2-300-FE241 MA2-325-FE241 MA2-350-FE241 MA2-375-FE241 10.6...
- Page 6 Volume Protected Diameter Model Number ft^3 CG2-300-227 CG2-325-227 CG2-350-227 CG2-375-227 10.6 CG2-400-227 11.3 CG2-450-227 12.7 CG2-500-227 14.1 CG2-550-227 15.6 CG2-600-227 CG2-650-227 18.4 CG2-700-227 19.8 CG2-750-227 21.2 CG2-800-227 22.6 CG2-850-227 CG2-900-227 25.5 CG2-950-227 26.9 CG2-1000-227 1000 28.3 MA2-025-227 0.71 MA2-050-227 MA2-075-227...
- Page 7 Marine Installation Instructions Before Installation 1. Check the system for damage during shipment. 2. Check the pressure gauge to be sure the gauge pointer lies within the green zone at 70°F (21°C). The correct weight is shown on the nameplate for the appropriate model. 3.
- Page 8 1. Failure to install an Automatic Engine Shutdown in any compartment containing a diesel engine and a Fireboy system impedes the fire extinguisher and may prevent fire extinguishment. 2. Automatic Engine Shutdown units are available through your Fireboy- Xintex distributor, dealer or retailer in three, five and eight circuit models.
- Page 9 • An electrical short may result in electrical burn, injury or fire • Before attempting to wire the indicator lamp, turn off all electrical current to the ignition switch • All Fireboy wiring must comply with the American Boat and Yacht Council Standard E9-9, titled Direct Current Electrical Systems for Boats, available from ABYC, 3069 Solomon’s Island Road, Edgewater, MD 21037...
- Page 10 Fireboy-Xintex warranties, and may result in an inoperative system, and unsafe and hazardous conditions. 4. Never install a manual release handle in the space to be protected. 5. Never install a cable on a CG2 Series. For use on MA2 Series only. NOTE: WARNING:...
- Page 11 Never push the cable at the T-handle end. Cable may jam and become inoperable. Fixing a jammed cable: 1. Turn the T-handle and threaded metal rod counter clockwise ½ turn until the jam releases. 2. If necessary, use a pair of pliers to carefully twist the threaded metal rod until the jam releases.
- Page 12 6. Pull cable to full extension. 7. Screw ferrule on to cable (approximately 4-5 turns maximum). 8. Slide o-ring onto cable shaft. 9. Screw red T-handle onto cable shaft (Do not obstruct cross hole in T- handle). 10. Push red T-handle into ferrule to seat o-ring. 11.
- Page 13 Always wear eye protection while servicing any component of your Fireboy fire extinguisher Operation of Fireboy Fire Extinguisher Automatic operation of CG2 and MA2 systems • Actuation of a Fireboy fire extinguisher occurs at 175°F (79°C) and is entirely dependent on the intensity of the fire Manual operation of MA2 Systems 1.
- Page 14 3. Remove and weigh the complete unit (less brackets) on a certified scale every six (6) months and record on tag provided. 4. Remove fire extinguisher from service immediately for repair or replacement if weight is below what is stated on unit’s nameplate (See Limited Warranty).
- Page 15 1. Do not remove the pull pin on the T-handle when disconnecting the manual discharge cable from the fire extinguisher manifold. 2. Remove the wire retaining clip securing the cable located at the slot in the top of the manifold.
- Page 16 Automatic Engine Shutdown/Override System is required for use with Fireboy systems in diesel powered craft. Returning Fireboy-Xintex Equipment No product may be returned for credit or repair without a written “Returned Material Authorization” (RMA) form. Purchaser must call or email Fireboy-Xintex 616-735-9380 or fireboy@fireboy-xintex.com for a RMA.
- Page 17 NOTE: Detroit Diesel engines may require Automatic Engine Shutdown systems with time delay. Fireboy accessories are available from your Fireboy-Xintex distributor, dealer or retailer.
- Page 18 3 YEAR LIMITED WARRANTY This Warranty is in lieu of all other expressed of implied Warranties Seller warrants title, materials, and workmanship on equipment, except components manufactured by others for which the Seller assigns, as permitted, the original manufacturer’s warranty. Seller’s warranty shall be for a period of (3) three years from the date of sale to the ORIGINAL CONSUMER PURCHASER, during which non-conforming equipment returned to the Seller at Buyer’s expense and risk, be repaired or replaced at the Seller’s option.
