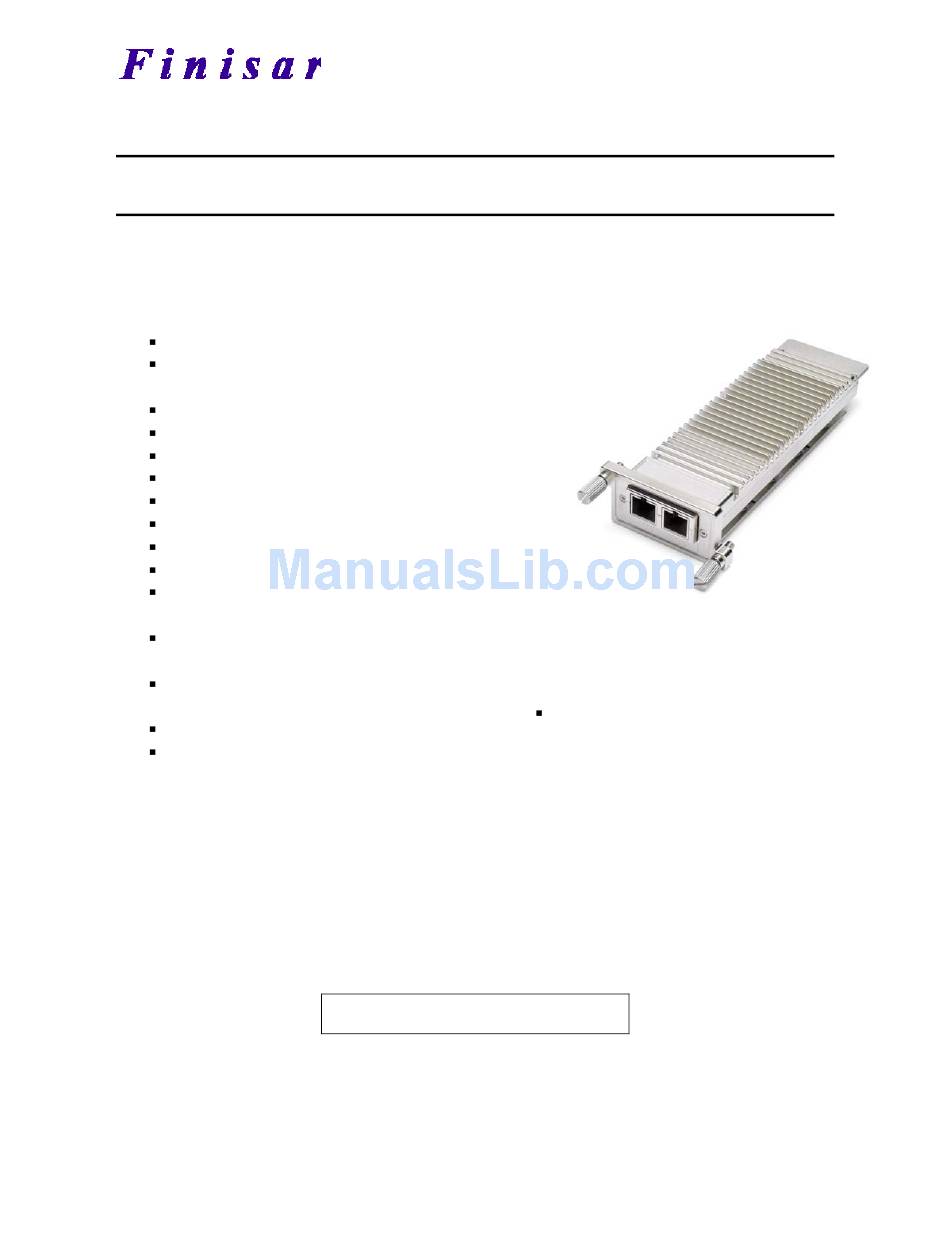

10Gb/s 850nm Multimode XENPAK Transponder
PRODUCT FEATURES
Hot pluggable XENPAK form factor
Total power consumption: 2.2 W
maximum
RoHS-6 compliant (lead-free)
Temperature range 0°C to 70°C
Transmission distance of 300m
Uncooled 850nm VCSEL laser
SC connector, multimode fiber
Full duplex transmission mode
Digital Optics Monitoring (DOM)
Power supply: +5.0 V, +3.3 V
Adaptable Power Supply (APS:
+1.2 V)
XAUI electrical interface
- 4 x 3.125 Gb/s Ethernet
Management and control via MDIO 2-
wire bus
70-pin connector
Separated signal/chassis ground
© Finisar Corporation – October 2008
Product Specification
RoHS-6 Compliant
FTLX8561E2
APPLICATIONS
PRODUCT SELECTION
FTLX8561E2
Rev B
10GBASE-SR 10G Ethernet
Page 1
Advertisement
Table of Contents
Related Manuals for Finisar XENPAK Transponder FTLX8561E2
Summary of Contents for Finisar XENPAK Transponder FTLX8561E2
- Page 1 XAUI electrical interface - 4 x 3.125 Gb/s Ethernet Management and control via MDIO 2- wire bus 70-pin connector Separated signal/chassis ground PRODUCT SELECTION © Finisar Corporation – October 2008 Product Specification RoHS-6 Compliant FTLX8561E2 APPLICATIONS 10GBASE-SR 10G Ethernet FTLX8561E2...
-
Page 2: Pin Descriptions
XAUI TX LANE 2+ TX LANE 1– TX LANE 1+ TX LANE 0– TX LANE 0+ © Finisar Corporation – October 2008 Pin No. Description Management Data I/O. Requires external 10 - 22 kΩ pull-up to the APS on host. - Page 3 3.3 V +3.3 V DC 5.0 V +5.0 V DC Reserved Reserved © Finisar Corporation – October 2008 Reserved For Future Use Reserved For Future Use Module XAUI Output Lane 0+ Module XAUI Output Lane 0– Module XAUI Output Lane 1+ Module XAUI Output Lane 1–...
-
Page 4: Absolute Maximum Ratings
Supply Voltage APS Static Discharge Voltage, All Pins Average Receive Optical Power Notes: Non-condensing. HBM. Exceeding any one of these values may permanently destroy the device. © Finisar Corporation – October 2008 Limit Values Symbol min. max. P max Rev B Unit °C... -
Page 5: Recommended Operating Conditions
For 1.8 V CMOS V = 1.65 V min., V = 0.15 V max., V = 10 kΩ to 1.8 V. pull-up = 1.8 V. AC coupled. = 100 µA © Finisar Corporation – October 2008 Values Symbol min. typ. 4.75 3.14 1.152... - Page 6 MDC Clock Rate 100 MHz to 2.5 GHz. At crossing point. Per IEEE Std 802.3ae. At near-end, No pre-equalization, 1 UI = 320 ps. © Finisar Corporation – October 2008 = 1.152 V to 1.248 V, T CC aps Values Symbol min.
-
Page 7: Optical Characteristics
50 µm MMF 50 µm MMF 50 µm MMF Notes: 1) Operating range as defined by IEEE standards. Longer reach possible depending upon link implementation. © Finisar Corporation – October 2008 = 1.152 V to 1.248 V, T CC aps Values Symbol min. -
Page 8: Pin Connector
Rail and Mechanical Mounting Requirements The XENPAK rail system required to mount the XENPAK module is fully defined by the MSA. Aqueous Wash Finisar XENPAK transponders are neither solderable nor aqueous washable and are not intended for these processes. VI. Regulatory Compliance Feature... -
Page 9: Mechanical Specifications
FTLX8561E2 Product Specification – October 2008 Eye Safety Finisar FTLX8561E2 transponders are Class 1 Laser Products. They are certified per the following standards: Feature Agency Laser Eye FDA/CDRH Safety Laser Eye TÜV Safety Electrical TÜV Safety Electrical UL/CSA Safety Copies of the referenced certificates are available at Finisar Corporation upon request. - Page 10 The following references are provided for informational purposes only. The parameters and operational behavior outlined in this specification describe the complete functionality of the 10G Transponder. Contact Finisar for any items concerning the operational characteristics of this device. IEEE Std 802.3ae-2002 clause 52, 10GBASE-SR XENPAK MSA Issue 3.0...
